INSPECTION PROCEDURE 4: Steering Wheel Sensor Power Supply System: Notes

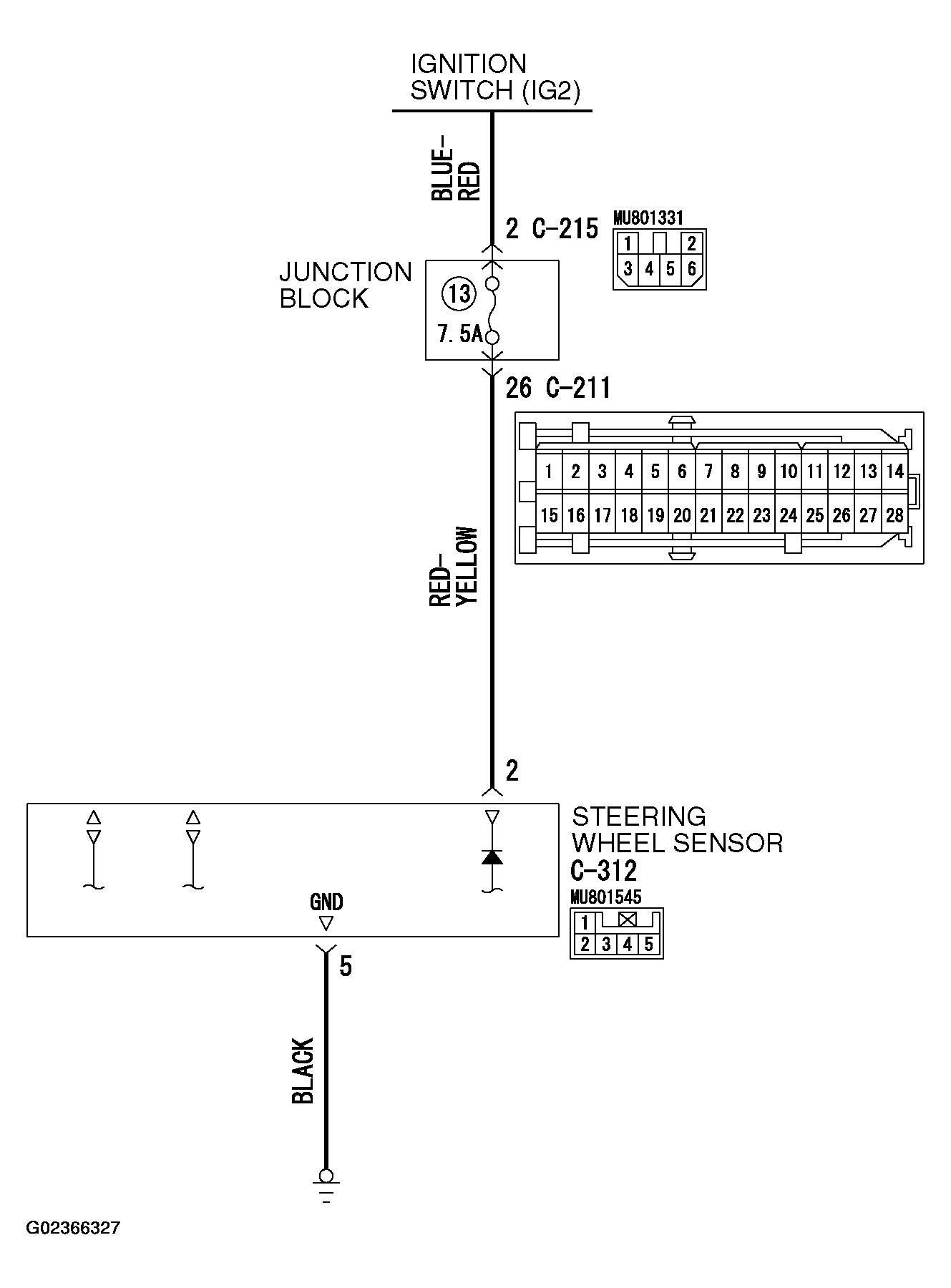

Fig 1: Steering Wheel Sensor Power Supply Circuit Diagram (1 Of 2)
G02366327Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Steering Wheel Sensor Power Supply Circuit Diagram (2 Of 2)
G02366328Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
