Removal And Installation: Notes

NOTE:
  • The ABS-ECU is integrated in the hydraulic unit.
  • For vehicles with ASC, refer to HYDRAULIC UNIT .

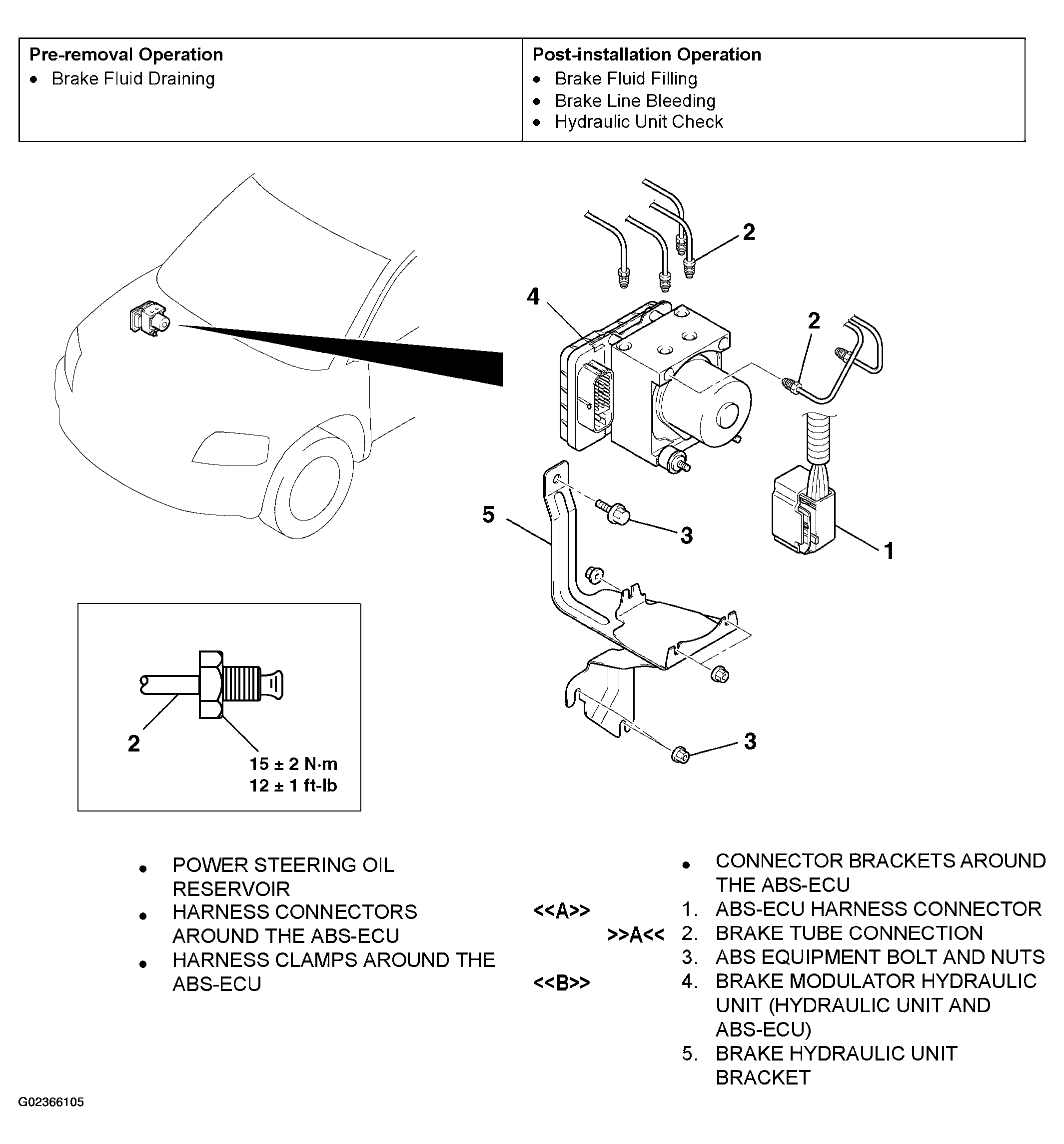

Fig 1: Removing/Installing Hydraulic Unit
G02366105Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
