DTC 41: IG1 Power Circuit System (Fuse No.23 Circuit): Notes

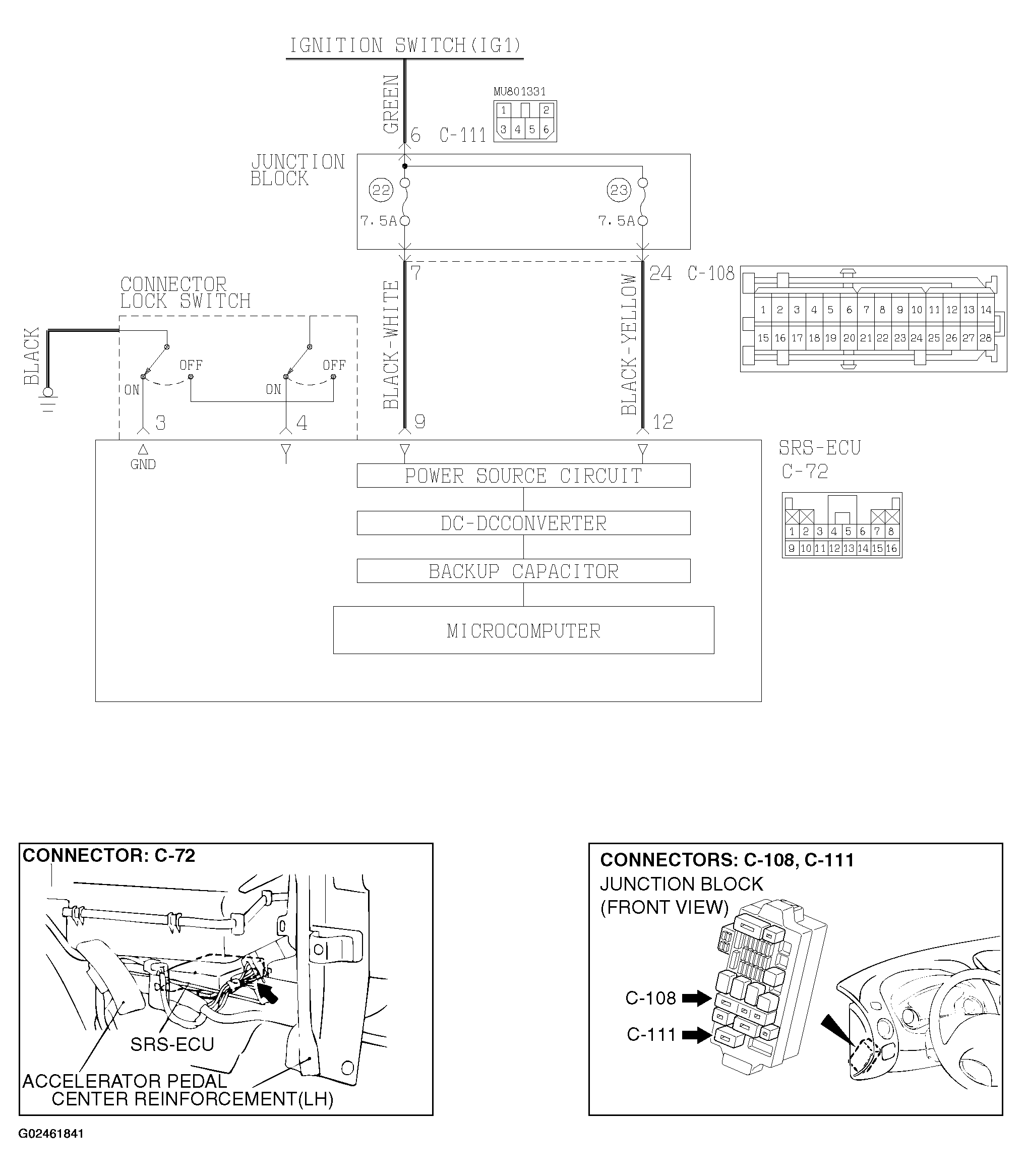

Fig 1: IG1 Power Circuit System (Fuse No.23) Circuit Diagram & Connector Identification

G02461841

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
