>> F << Synchronizer Spring Installation

Install the synchronizer spring to the illustrated position of the outer synchronizer ring.

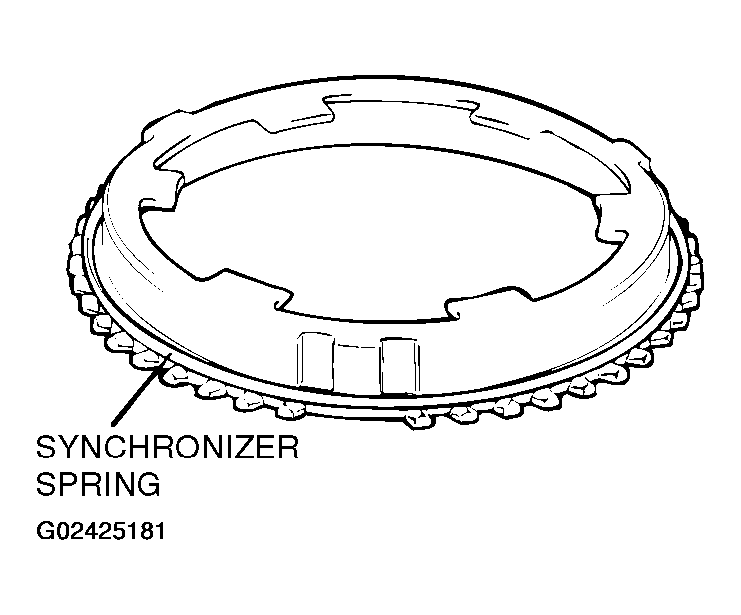

Fig 1: Installing Synchronizer Spring
G02425181Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
