DTC 86:Left Hand Side-Airbag Module (Squib) System Fault Ground Circuit (Short-Circuit to Ground): Notes

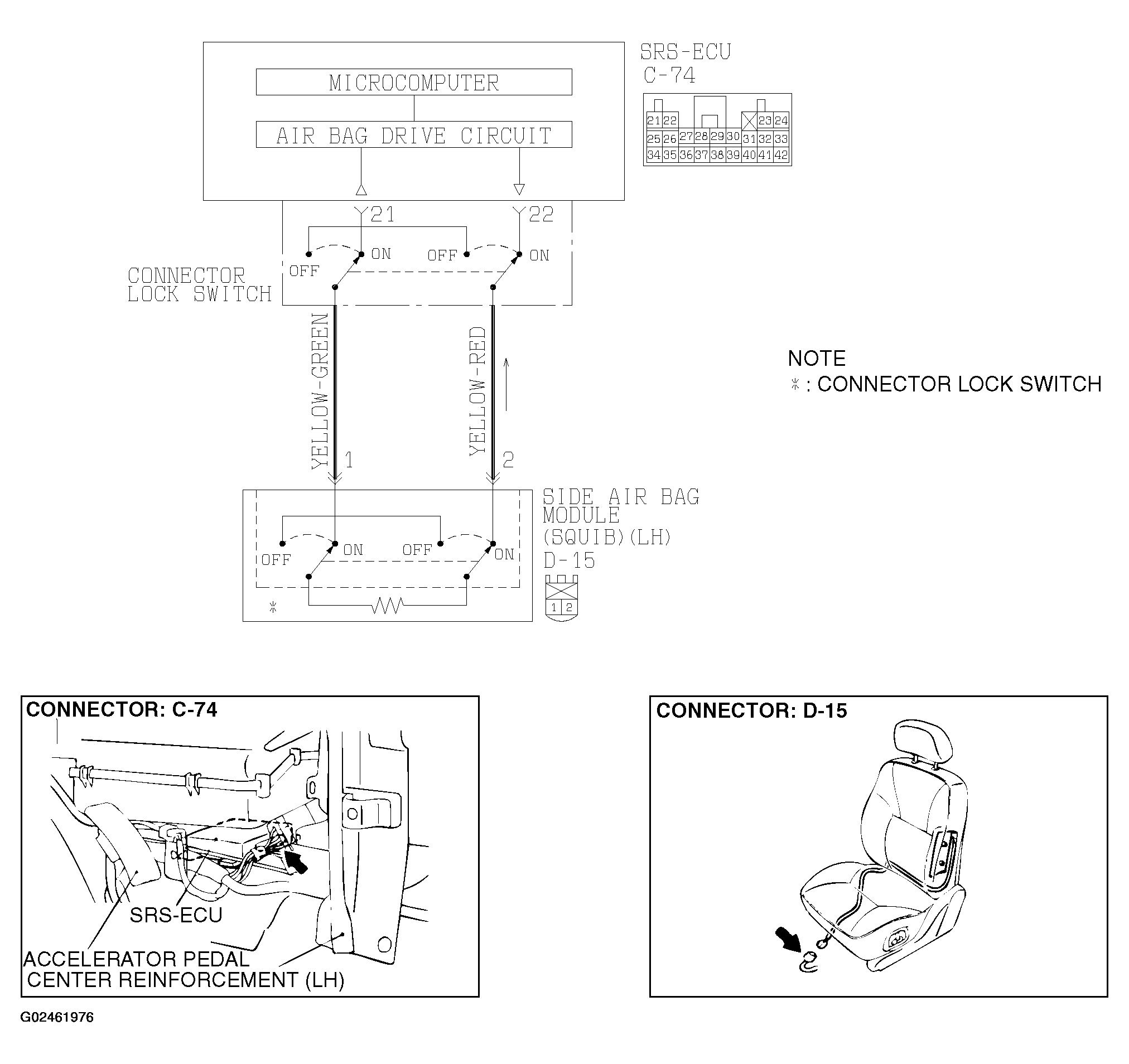

Fig 1: Side-Airbag Module (LH) (Squib) Circuit Diagram & Connector Identification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
