Home >> Mitsubishi >> 2005 >> Eclipse GS, Standard >> Repair and Diagnosis >> Restraints >> Passive Restraints >> Supplemental Restraint System >> Air Bag Modules And Clock Spring >> Air Bag Modules And Clock Spring Removal And Installation >> Removal And Installation >> < Driver's Air Bag Module, Clock Spring >

< Driver's Air Bag Module, Clock Spring >

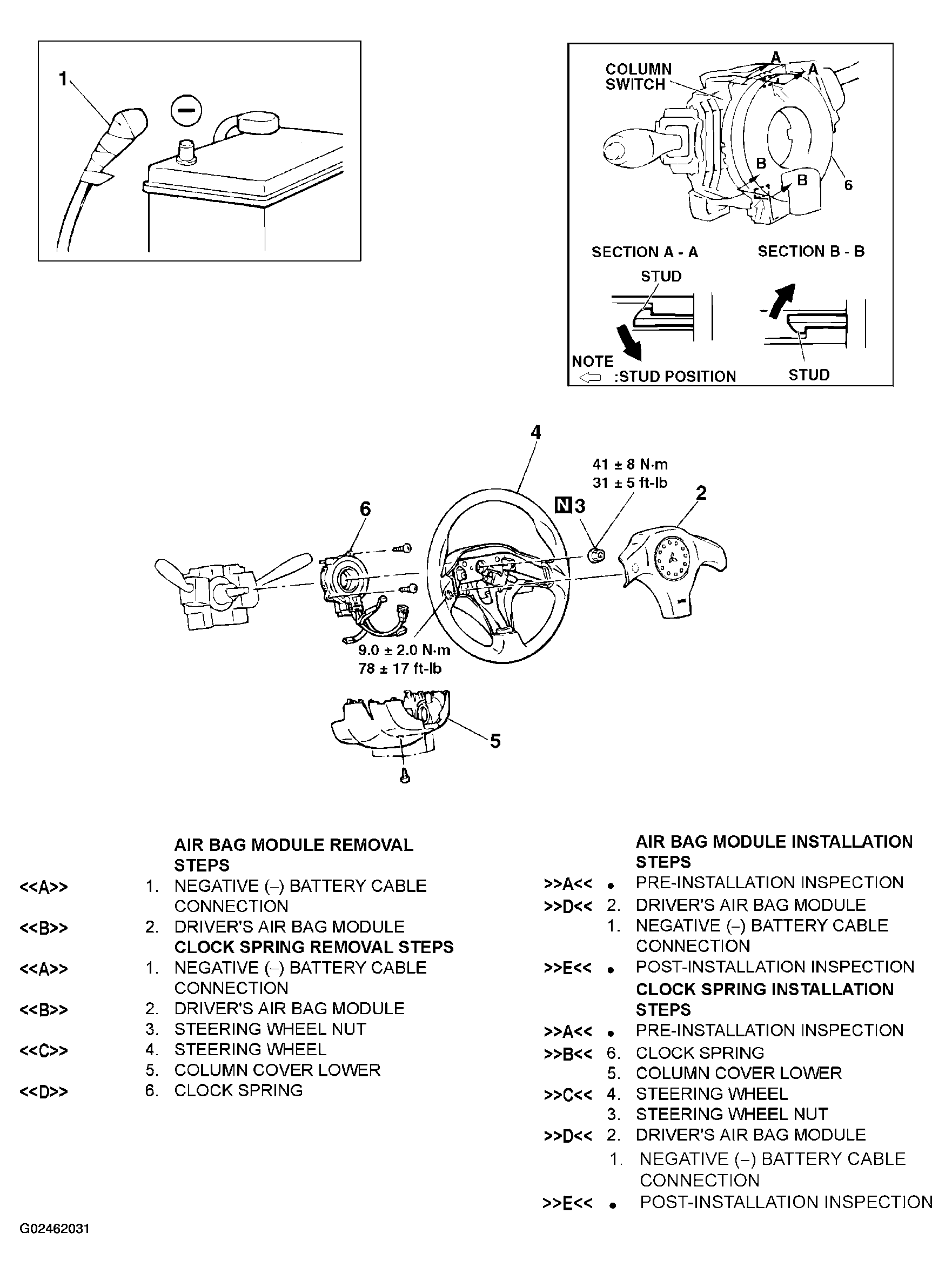

Fig 1: Removing/Installing Of Driver's Air Bag Module, Clock Spring

G02462031

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
