Scan Tool (Mut-III Sub Assembly)

CAUTION: Turn the ignition switch to the "LOCK" (OFF) position before disconnecting or connecting the scan tool.

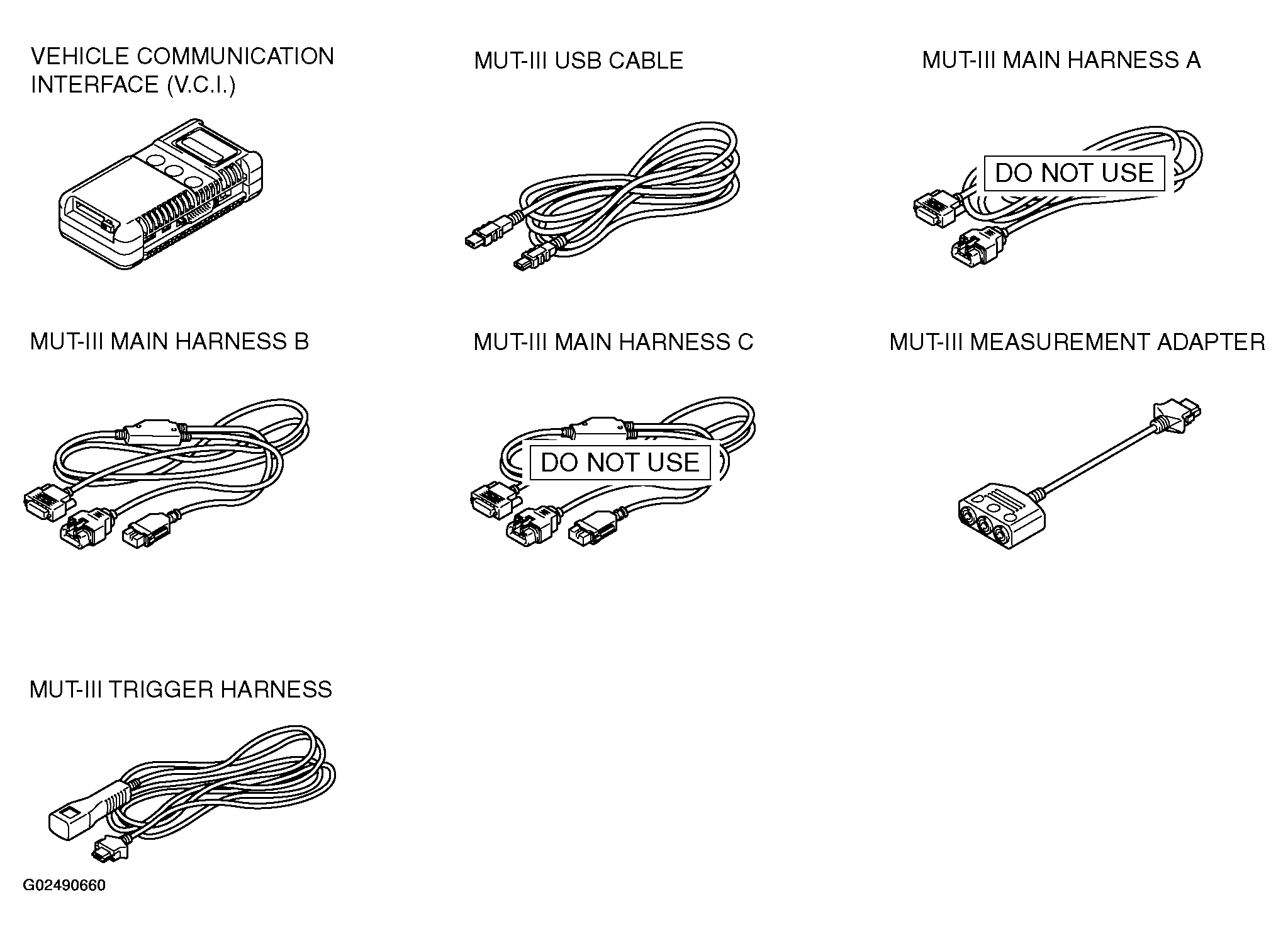

Fig 1: Identifying Scan Tool Components (MUT-III Sub Assembly)
G02490660Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
