Section 2 (Overhaul - 3.0L)
>>
Specifications
>>
Service Specifications
Service Specifications
WARNING:
This page is about a different variant/trim than selected.

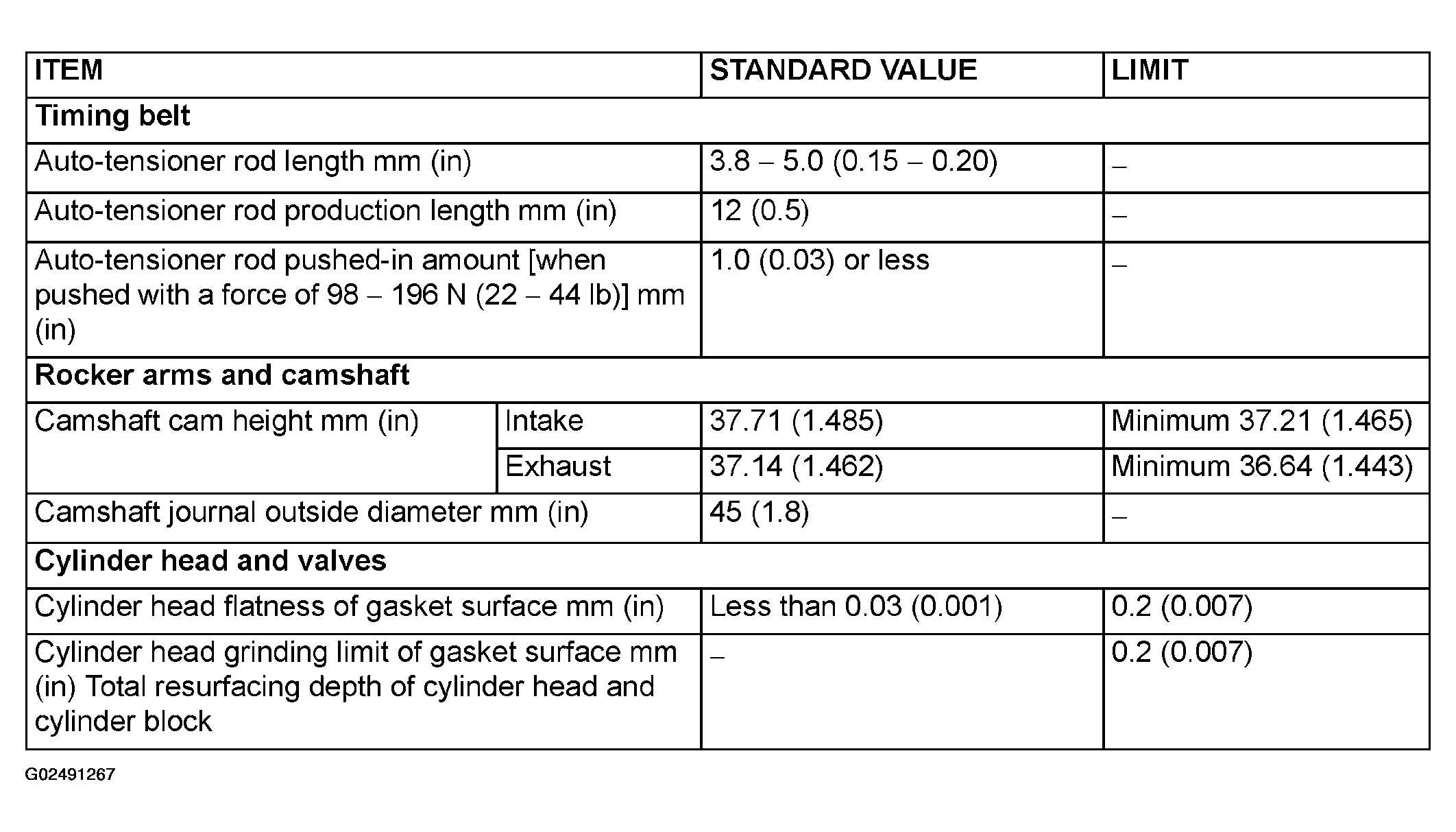

Fig 1: Service Specifications Chart (1 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

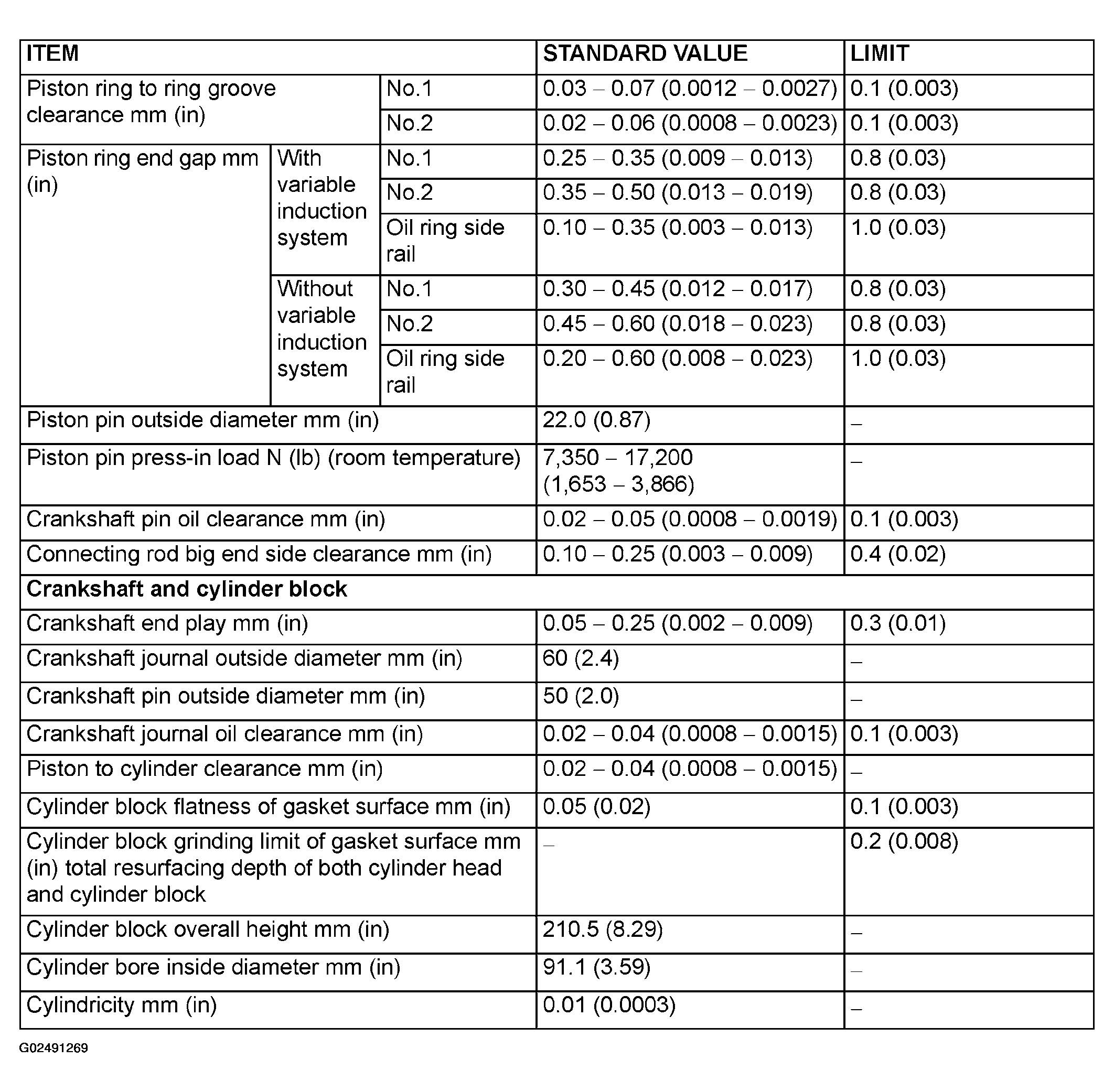

Fig 2: Service Specifications Chart (2 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

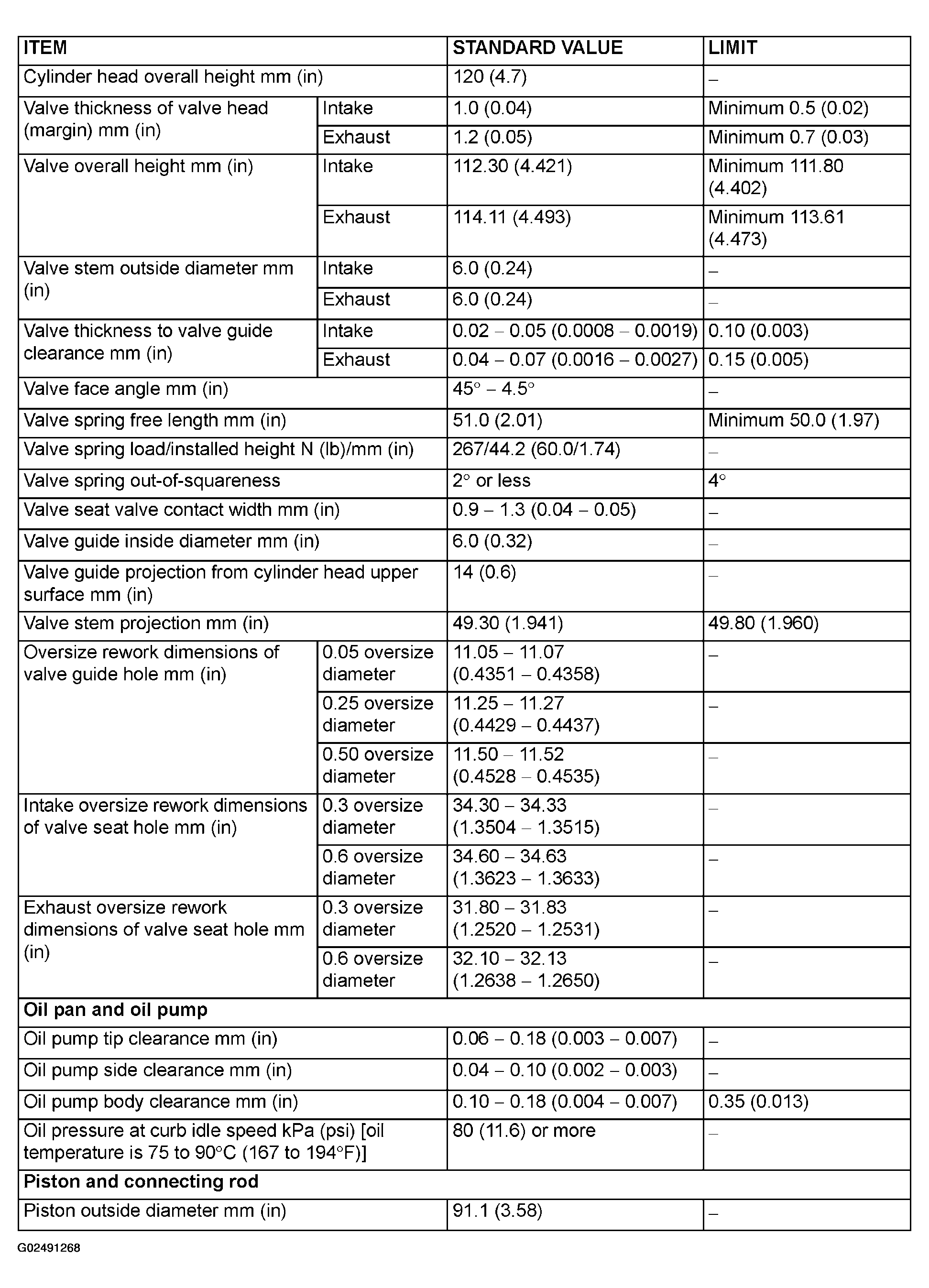

Fig 3: Service Specifications Chart (3 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 4: Service Specifications Chart (4 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
