Catalytic Converter
>>
Removal And Installation
>>
<2.4L Engine>
<2.4L Engine>

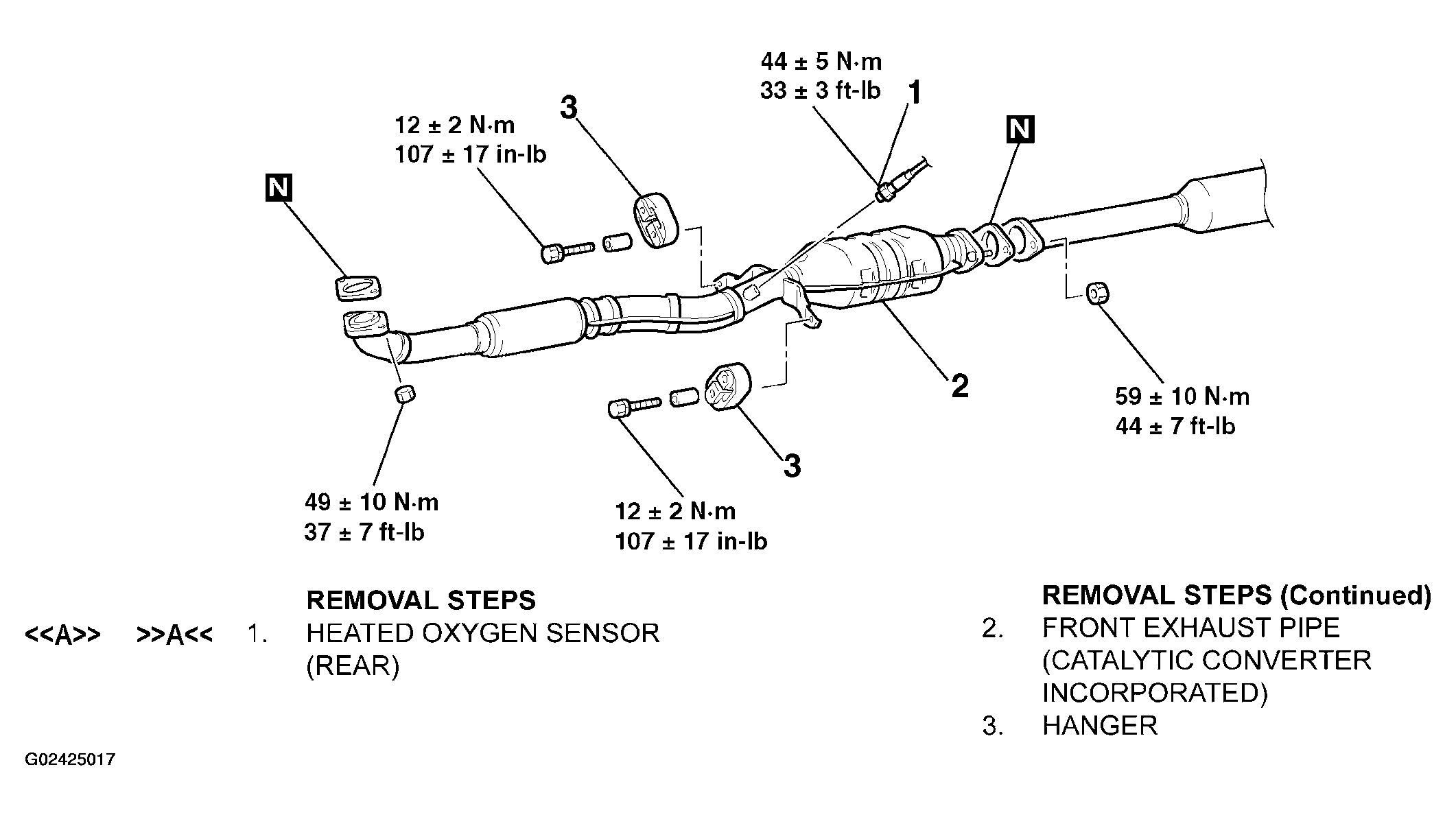

Fig 1: Removing/Installing Catalytic Converter Components
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
