INSPECTION PROCEDURE 5: Combination Meter Does Not Work.: Notes

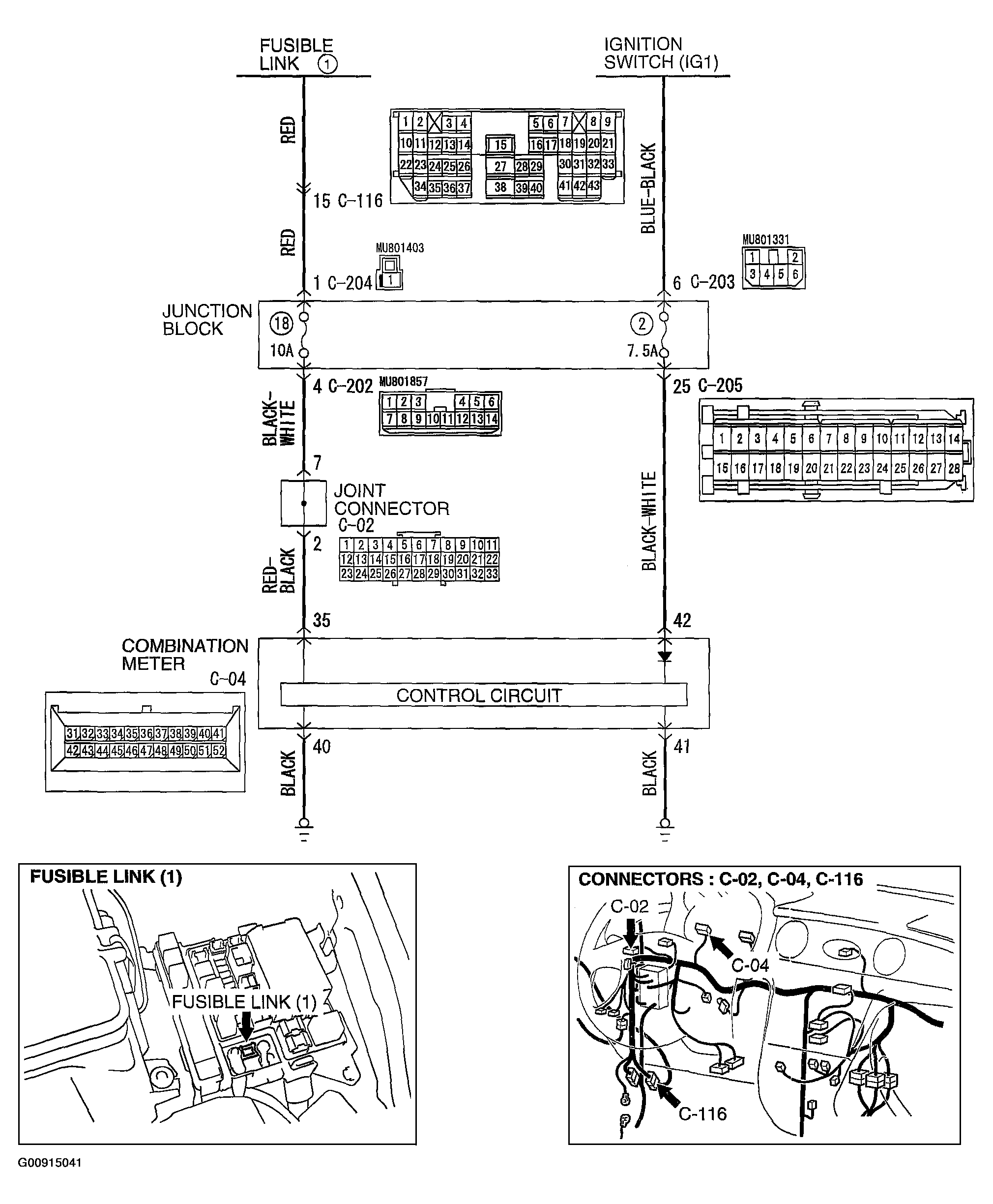

Fig 1: Combination Meter Power Supply Circuit Diagram
G00915041Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

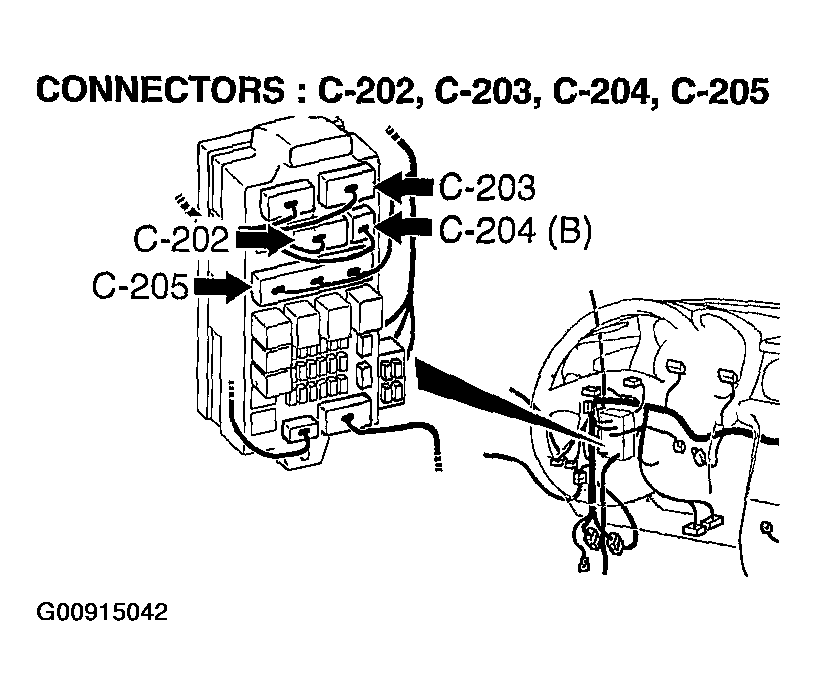

Fig 2: Identifying Connectors
G00915042Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
