INSPECTION PROCEDURE 1: Speedometer Does Not Work.: Notes

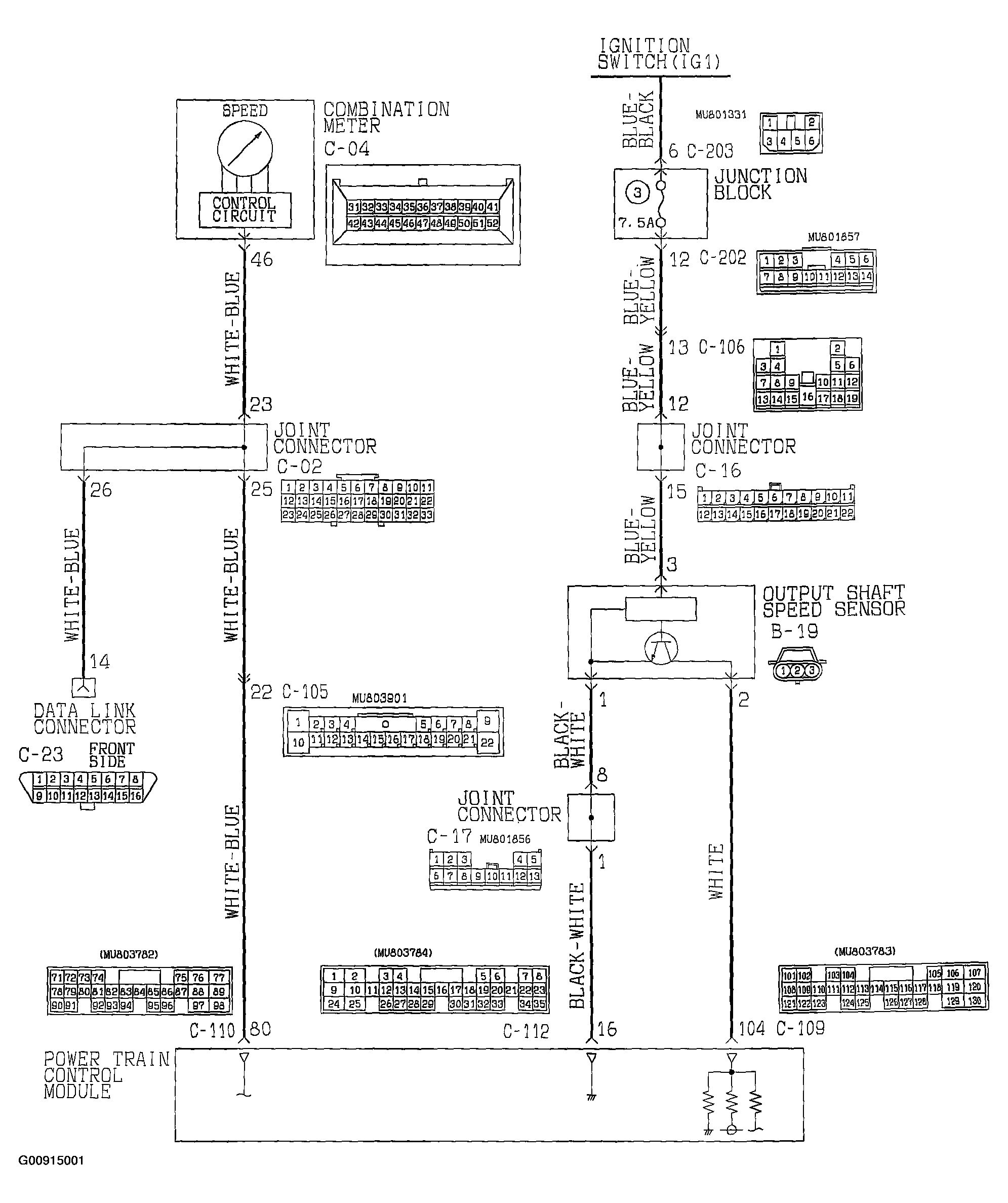

Fig 1: Speedometer Circuit Diagram
G00915001Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

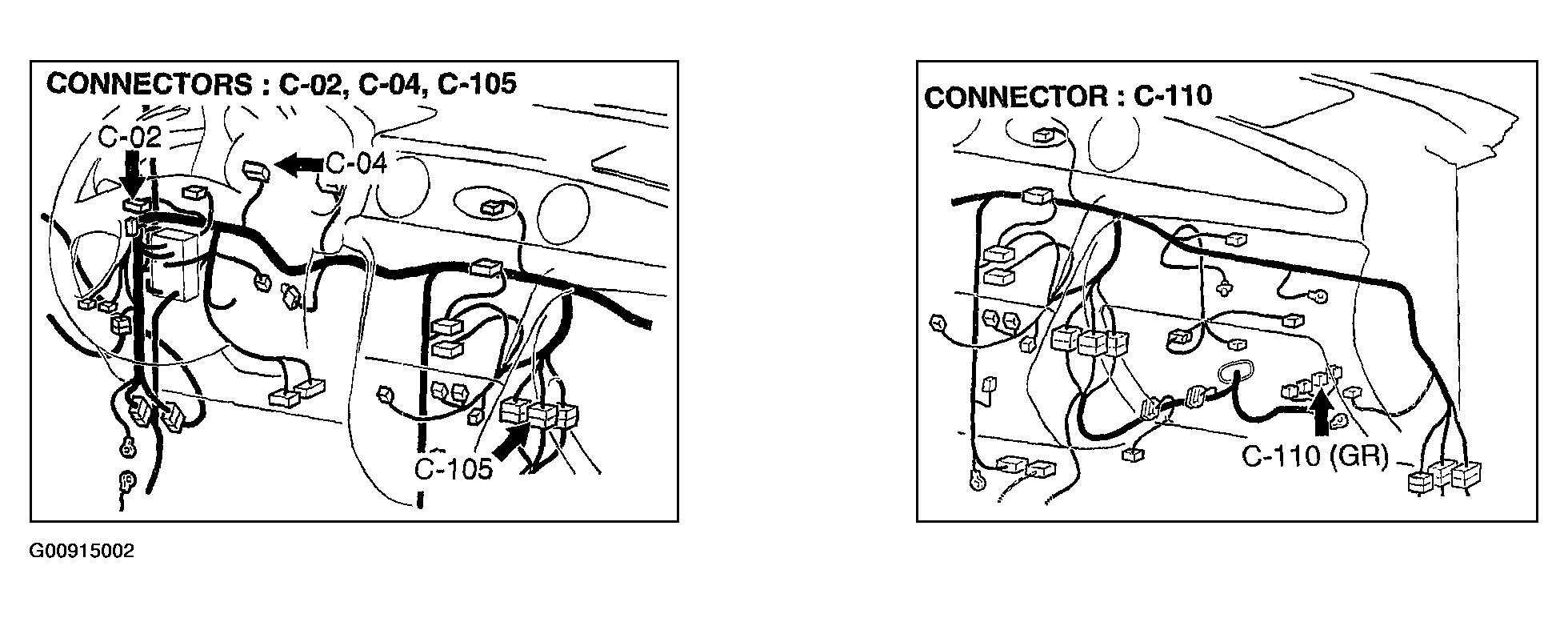

Fig 2: Identifying Connectors
G00915002Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
