Home >> Mitsubishi >> 2004 >> Montero XLS >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Ignition System >> Knock Sensor >> Removal Service Point >> << A >> Knock Sensor Removal

<< A >> Knock Sensor Removal

Use special tool MD998773 to remove the knock sensor.

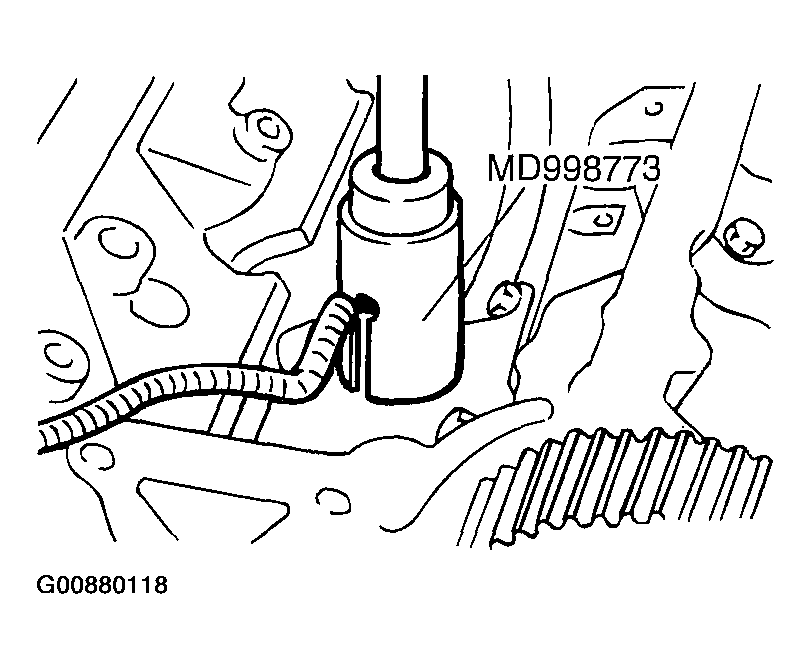

Fig 1: Removing Knock Sensor With Special Tool

G00880118

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
