Stoplight Switch

  1. Disconnect the connector.
    Fig 1: Identifying Stoplight Switch Connector
    G00972016Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Check for continuity between the terminals of the switch.

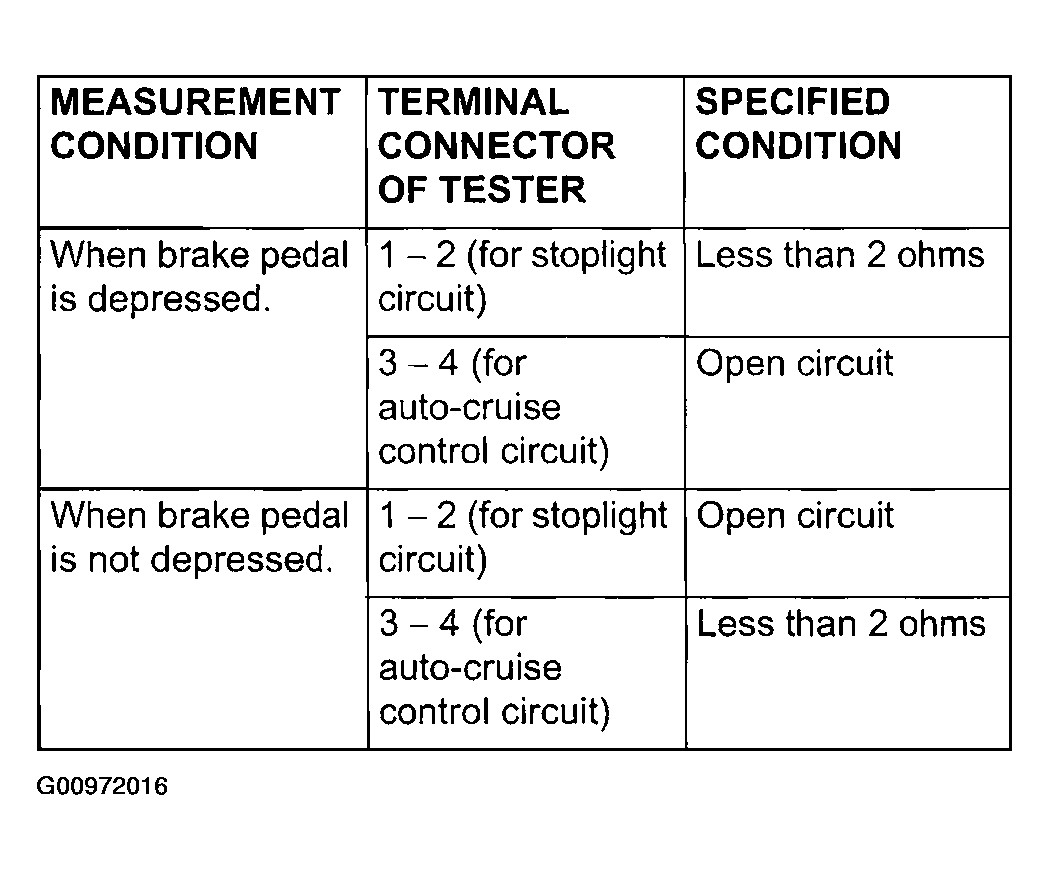

    Fig 2: Checking For Continuity Between Terminals Of Switch (Table)
    G00972017Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
