Home >> Mitsubishi >> 2004 >> Lancer LS >> Repair and Diagnosis >> Steering >> Power Steering - Except Evolution & SPORTBACK >> Steering Wheel And Shaft Assembly >> DIASSEMBLY And Assembly >> Notes

DIASSEMBLY And Assembly: Notes

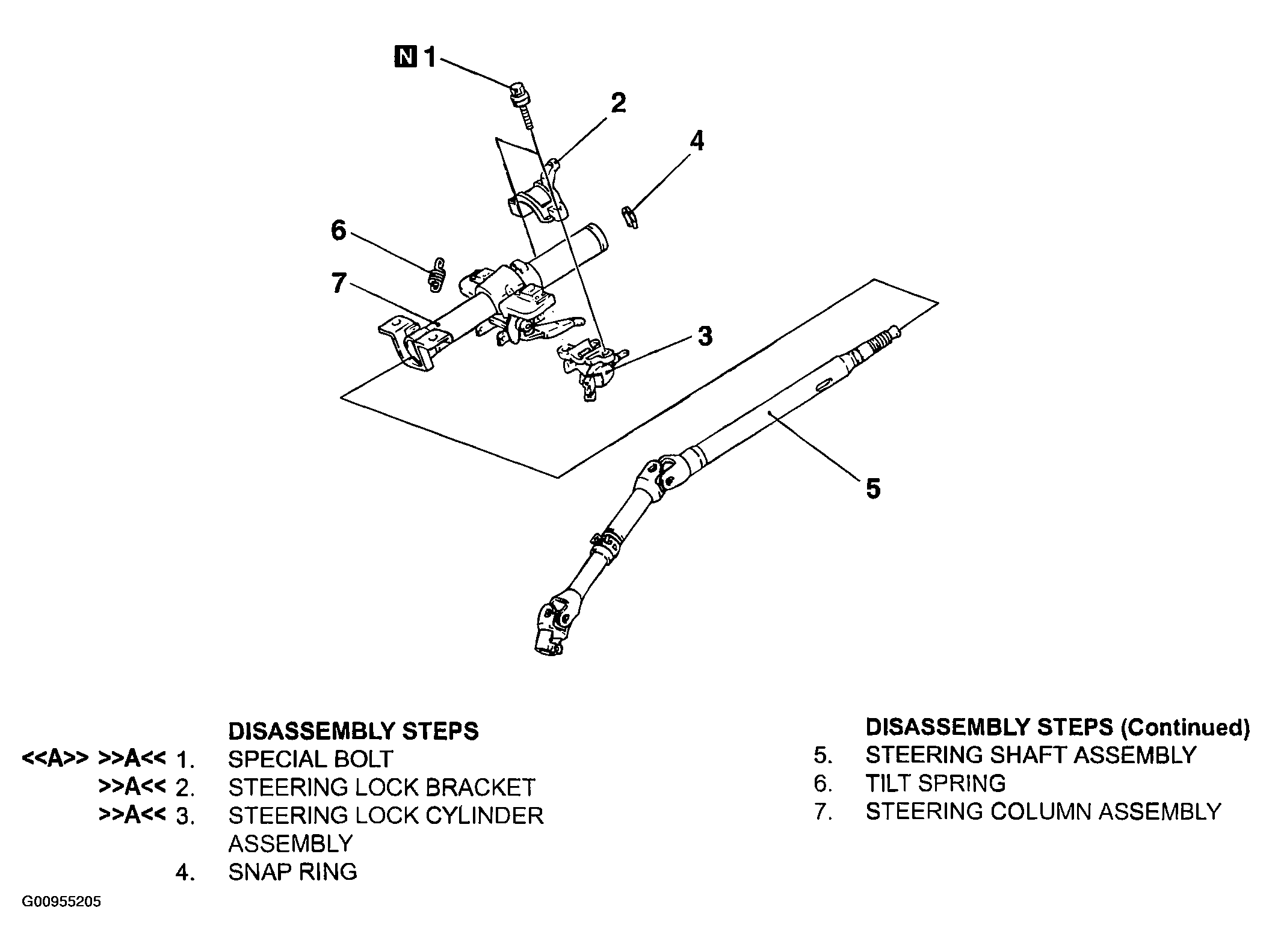

Fig 1: Dissembling And Assembling Steering Shaft Assembly

G00955205

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
