A/T Control Relay Connector B-11X Connector End View

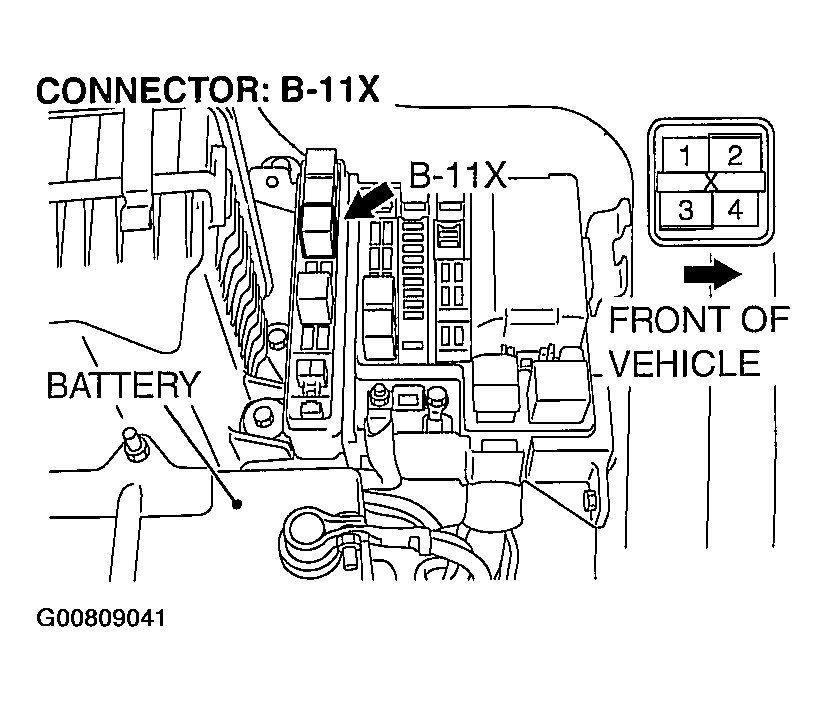

Fig 1: A/T Control Relay Connector B-11X Connector End View

G00809041

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
