Hub Bolt Replacement

Required Special Tools:

• MB990767: End Yoke Holder
• MB991618: Hub Bolt Remover

1. Remove the brake caliper and brake disc.
2. Use special tools MB990767 and MB991618 to remove the hub bolts.
   NOTE: To retain a space for removing the hub bolts, remove near the retainer spring mounting position.

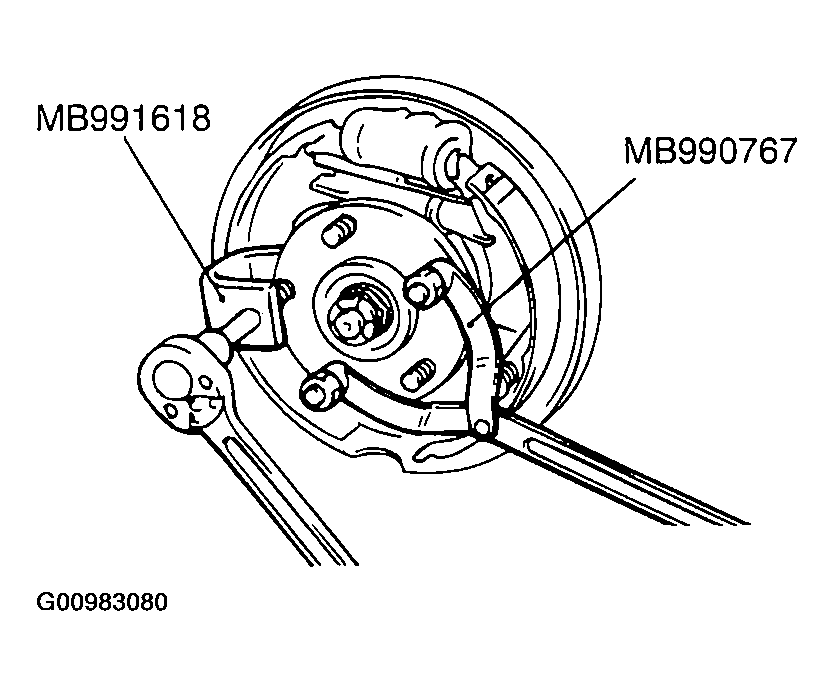

   Fig 1: Removing Hub Bolts Using Special Tools MB990767 And MB991618

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Install the plain washer to the new hub bolt, and install the bolt with a nut.

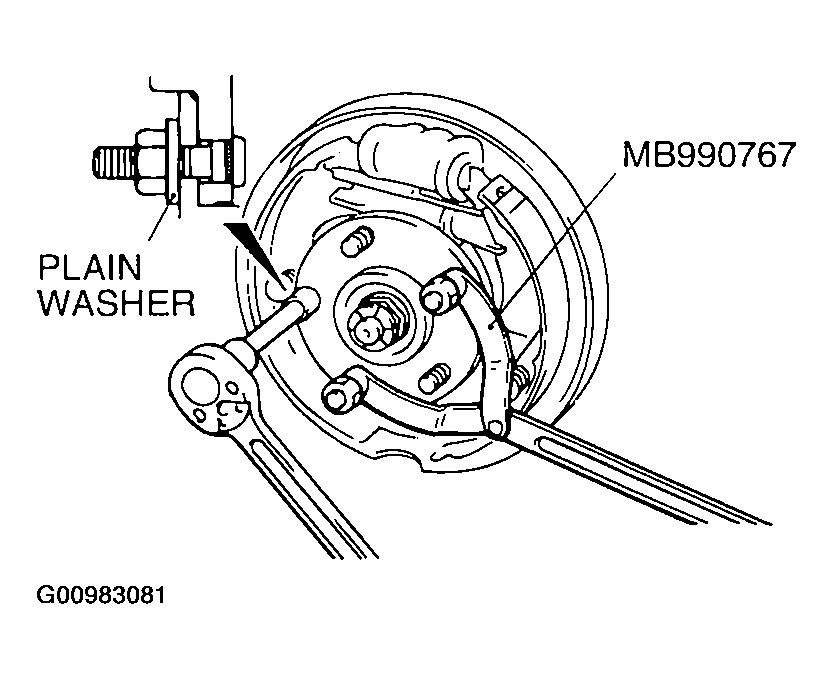

   Fig 2: Locating Plain Washer On Hub Bolt

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
