Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

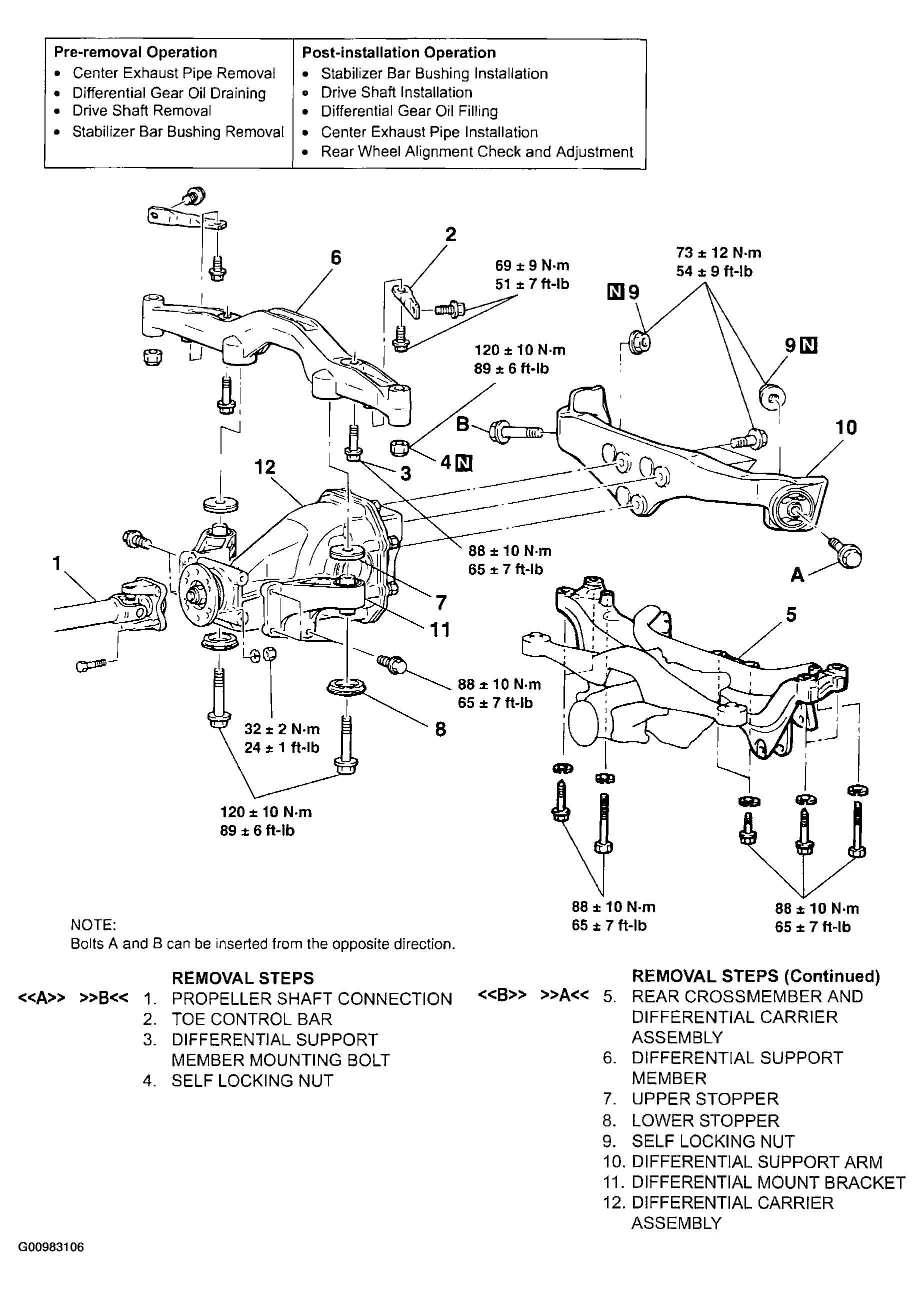

Fig 1: Differential Carrier Assembly With Torque Specifications
G00983106Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
