Adjusting Plate, Snap Ring And Spacers: Notes

WARNING: This page is about a different variant/trim than selected.

Thrust washer (For adjustment of input shaft end play)

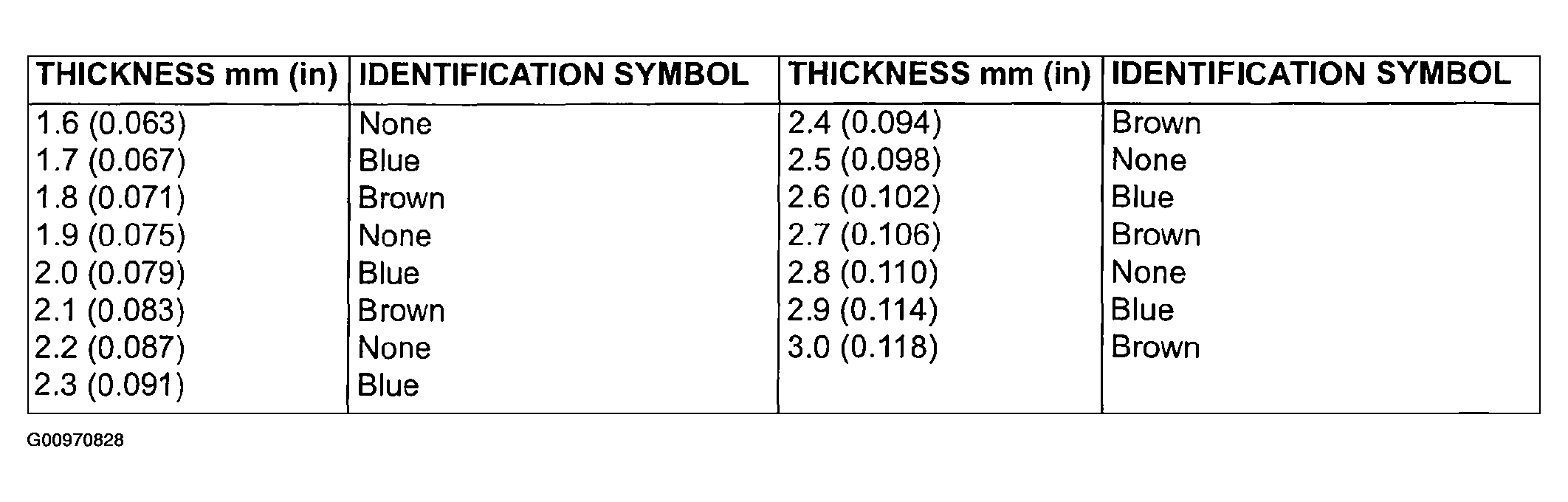

Fig 1: Thrust Washer For Adjustment Of Input Shaft End Play Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Snap ring (For adjustment of underdrive clutch and overdrive clutch end play)

Fig 2: Snap Ring For Adjustment Underdrive Clutch And Overdrive Clutch End Play Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
