Removal And Installation

CAUTION: ^* : Indicates parts which should be temporarily tightened, and then fully tightened after placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.

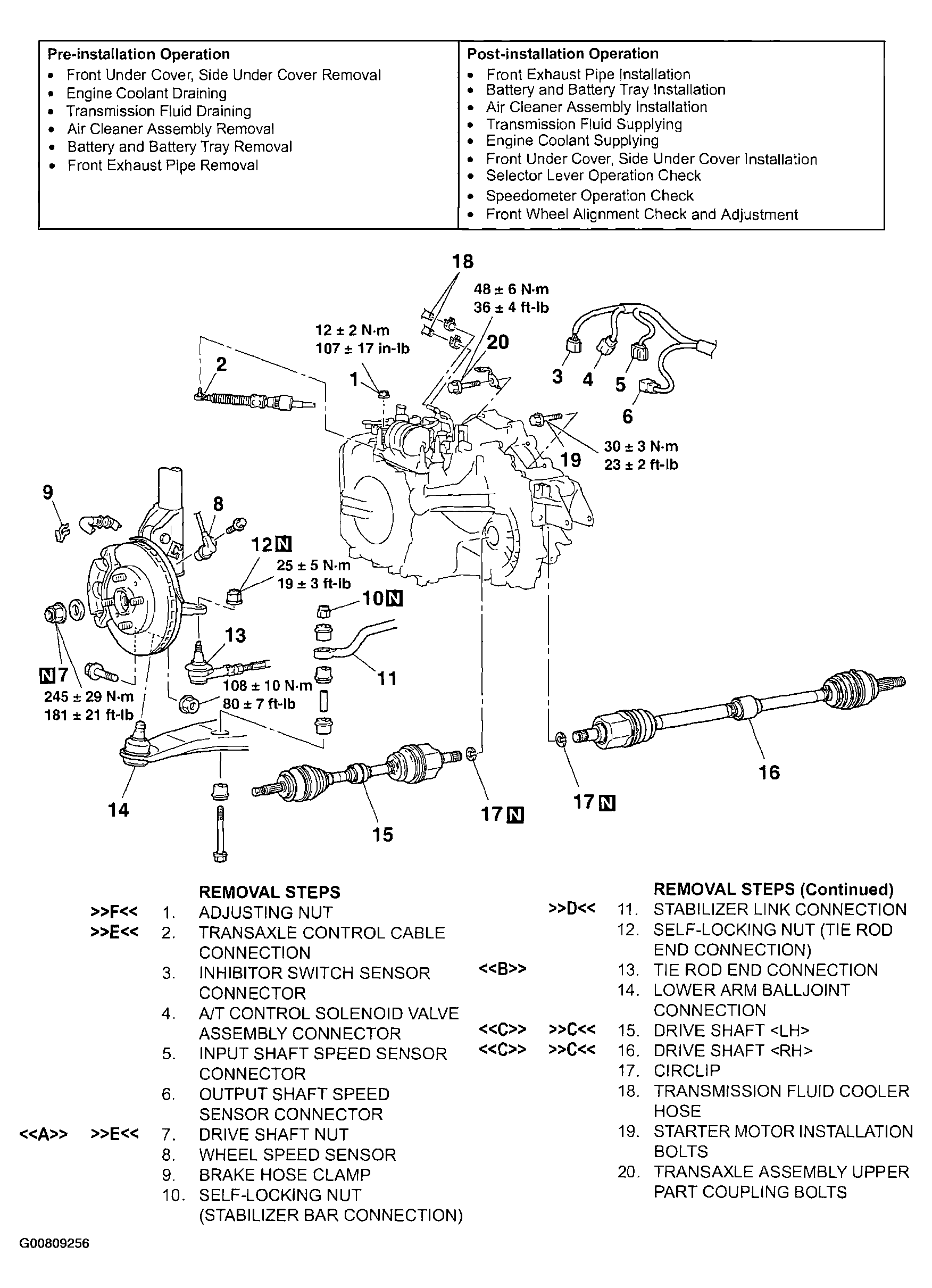

Fig 1: Removing & Installing Transaxle Assembly (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

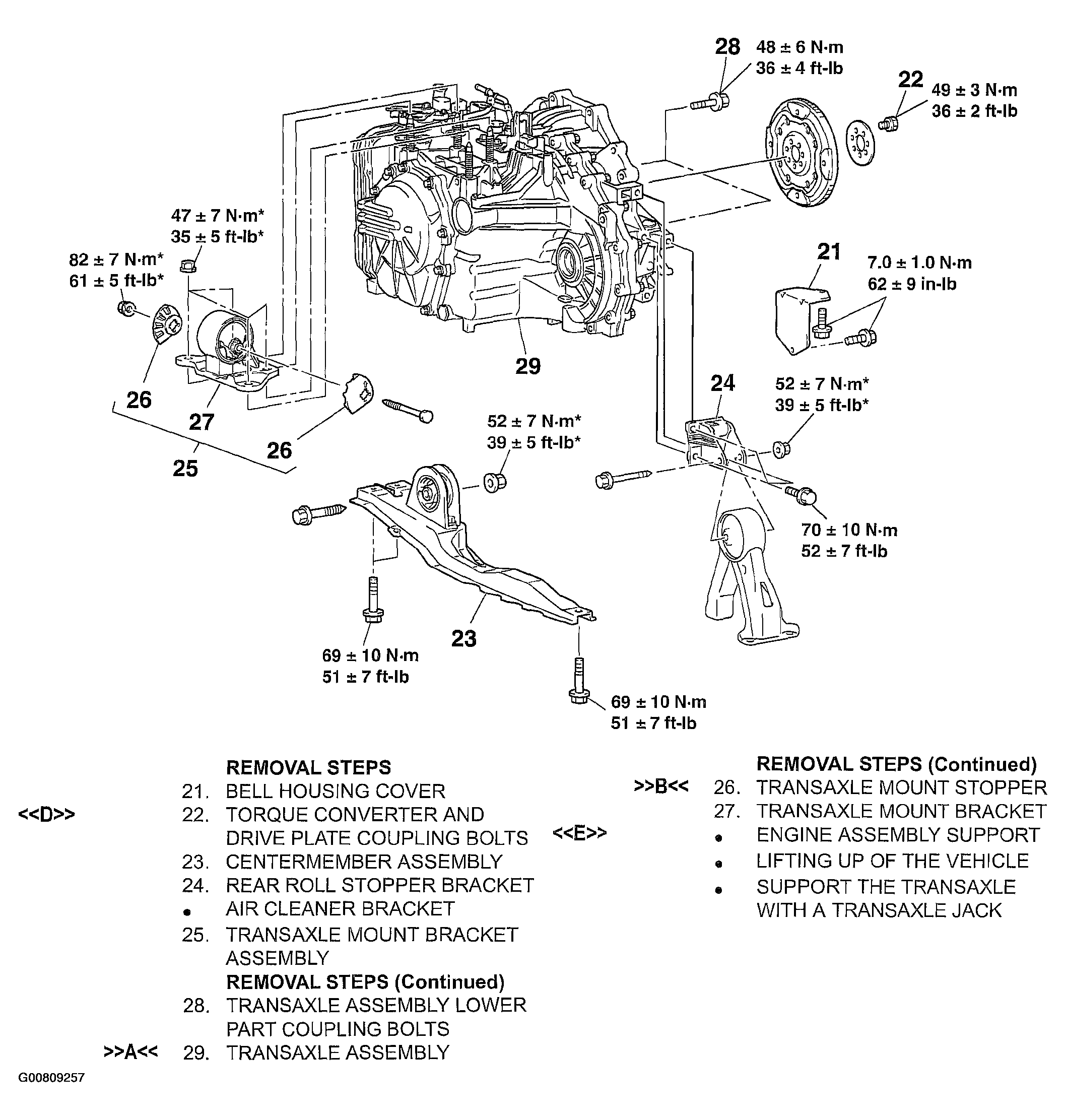

Fig 2: Removing & Installing Transaxle Assembly (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB990767: End Yoke Holder
MB991897: Ball Joint Remover
MB990241: Axle shaft puller
MB991017: Front Hub Remover and Installer
MB991000: Spacer
MB991460: Plug
MB991527: Hanger
MB991454: Engine Hanger Balancer (chain)
MB991895: Engine Hanger
MB991928: Engine Hanger
MB991932: Foot (standard)
MB991933: Foot (short)
MB991930: Joint (90)
MB991931: Joint (140)
