DTC 26: Stoplight Switch System: Notes

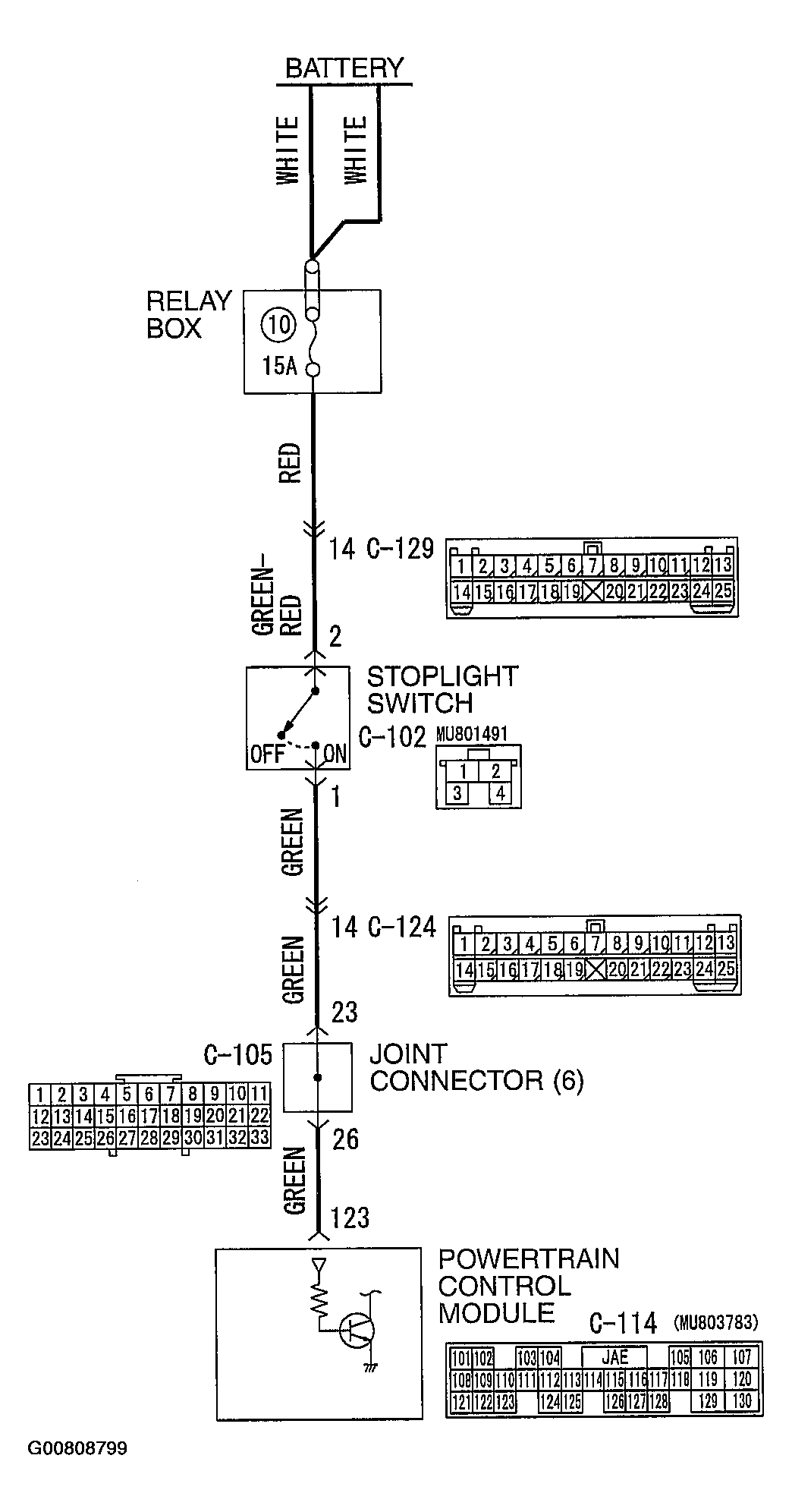

Fig 1: Stoplight Switch System Circuit Diagram
G00808799Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

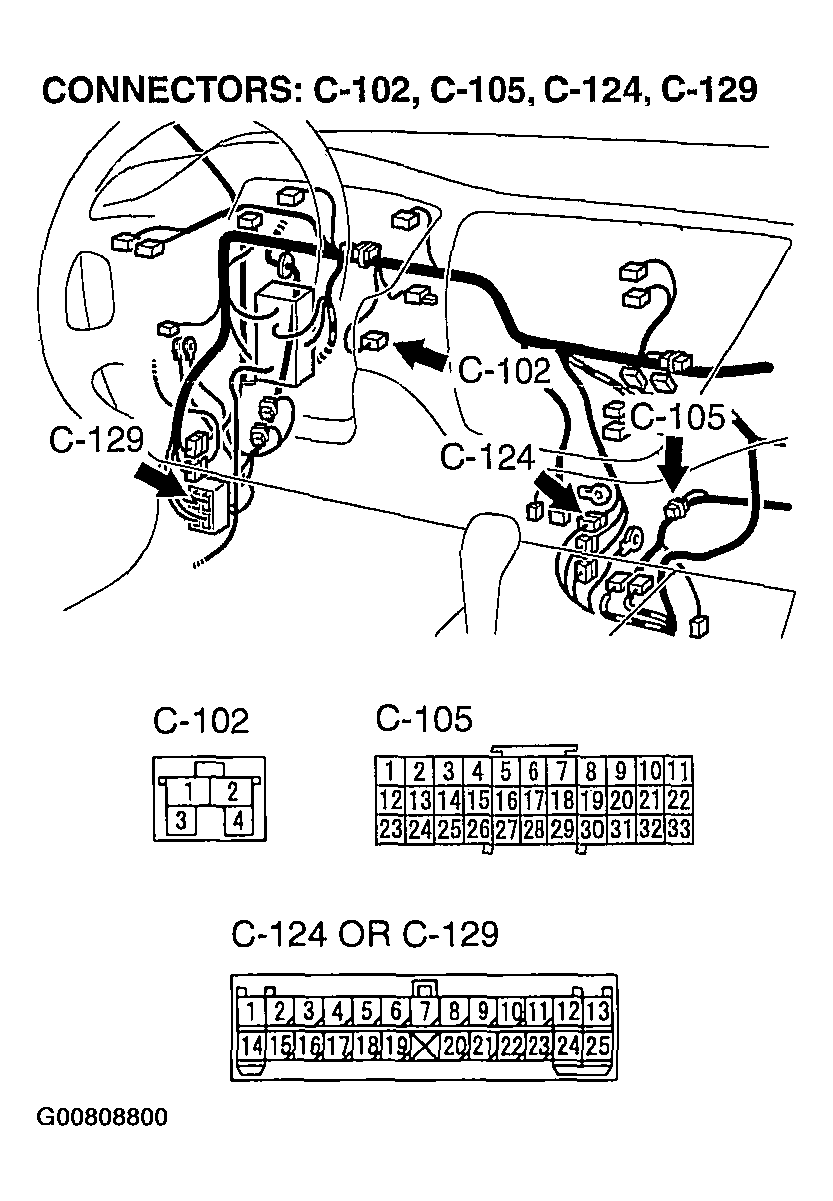

Fig 2: Identifying Connectors
G00808800Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

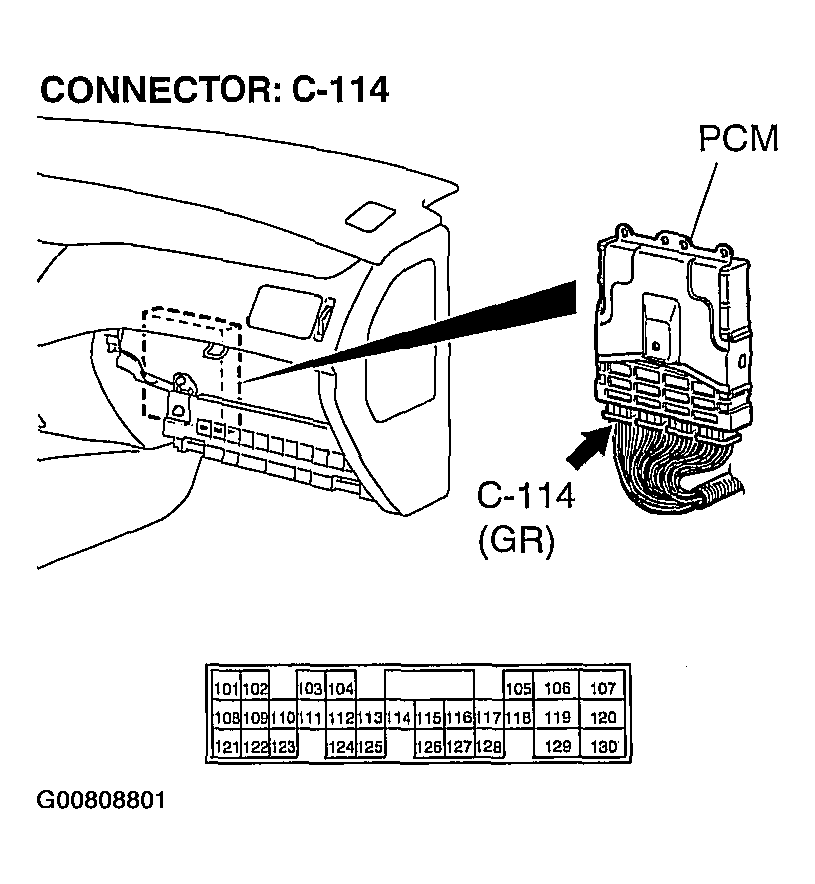

Fig 3: Identifying Connector C-114
G00808801Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
