Home >> Mitsubishi >> 2004 >> Lancer Evolution >> Repair and Diagnosis >> Steering >> Power Steering - Evolution >> Power Steering Oil Pump Assembly >> Disassembly And Assembly

Disassembly And Assembly

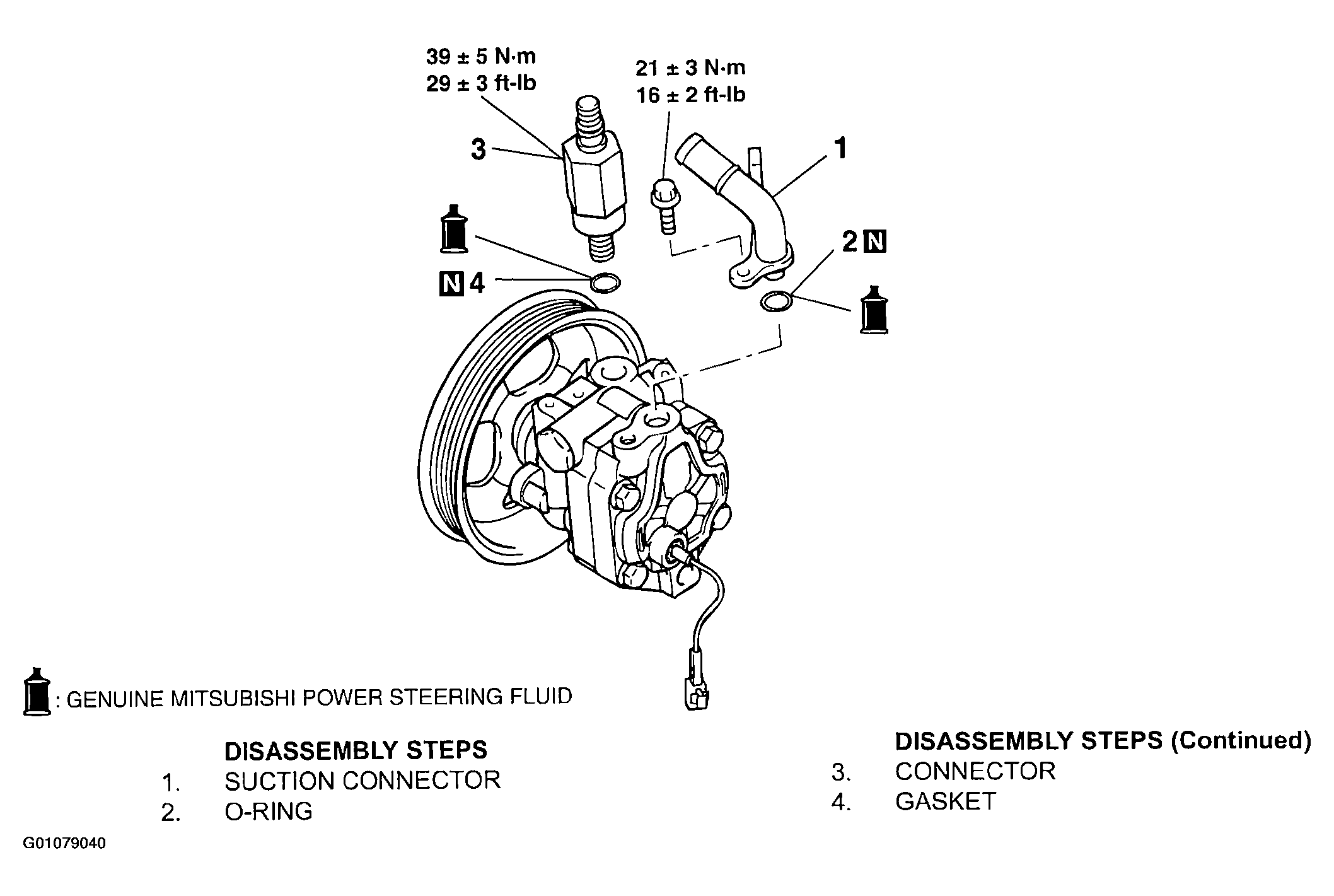

Fig 1: Disassembling Power Steering Pump

G01079040

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
