Home >> Mitsubishi >> 2004 >> Lancer Evolution >> Repair and Diagnosis >> Steering >> Power Steering - Evolution >> Power Steering Gear Box And Linkage >> Disassembly And Assembly >> Lubrication And Sealing Points

Lubrication And Sealing Points

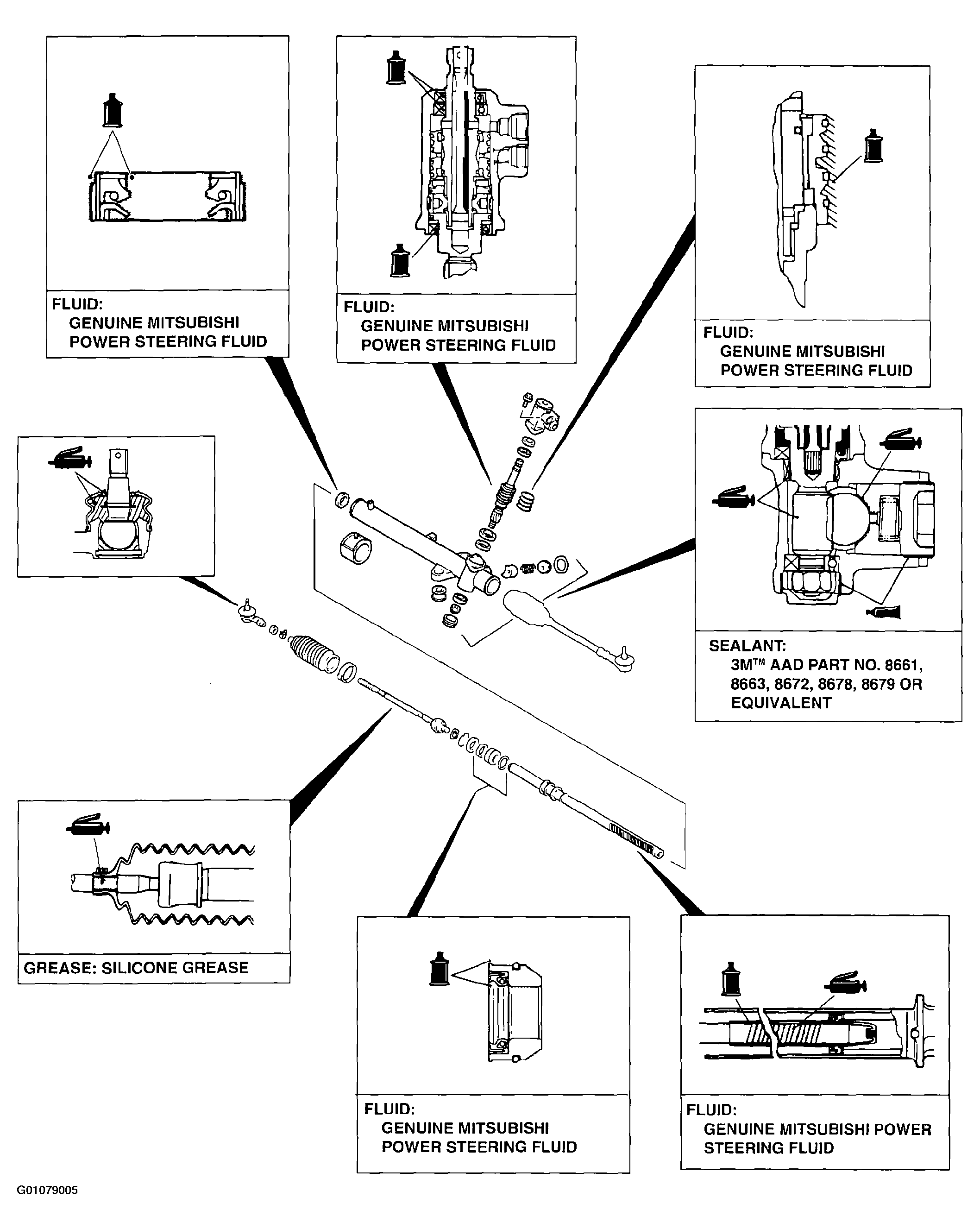

Fig 1: Identifying Lubrication And Sealing Points

G01079005

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
