Section 58 (Simplified Wiring System (SWS) - Lancer SPORTBACK)
>>
Symptom Procedures
>>
Power Windows
>>
Inspection Procedure D-1: Power Windows: Power Windows Do Not Work At All.
>>
Power Window Relay Circuit
Power Window Relay Circuit
WARNING:
This page is about a different variant/trim than selected.

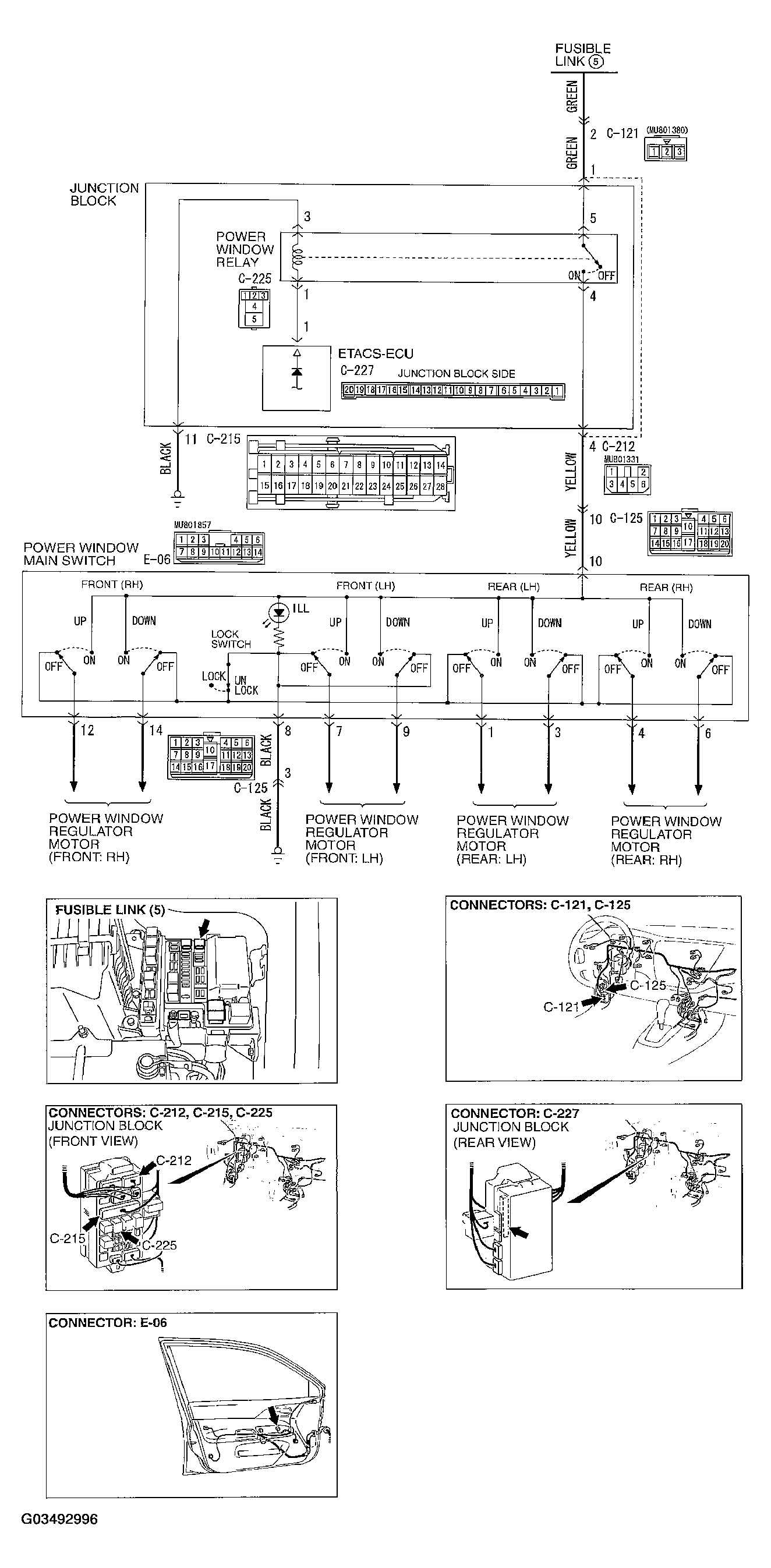

Fig 1: View Of Power Window Relay Circuit Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
