Communication Method

WARNING: This page is about a different variant/trim than selected.

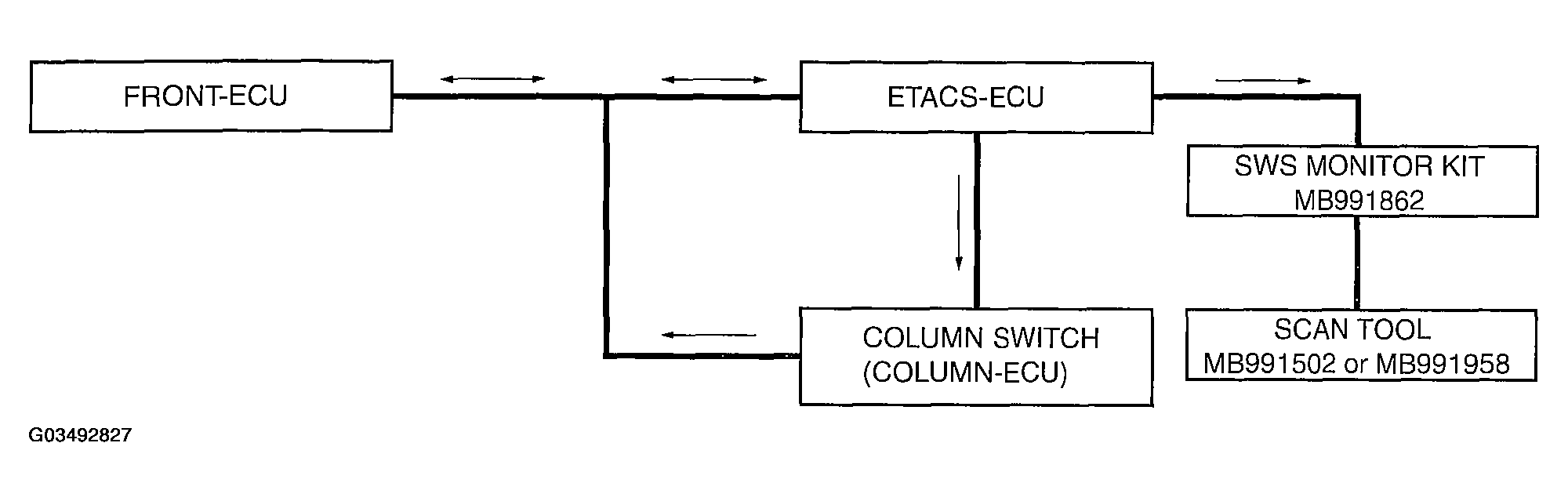

Fig 1: View Of Communication Method Chart
G03492827Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

As shown below, signal wires used exclusively for transmitting multiplex signal data connect the ETACS-ECU, front-ECU, column switch (incorporating the column-ECU) and these components communicate with each other.
