Section 47 (Anti-Lock Braking System (Abs) - Except Evolution & SPORTBACK)
>>
Wheel Speed Sensor
>>
Removal And Installation
>>
Notes
Removal And Installation: Notes
WARNING:
This page is about a different variant/trim than selected.

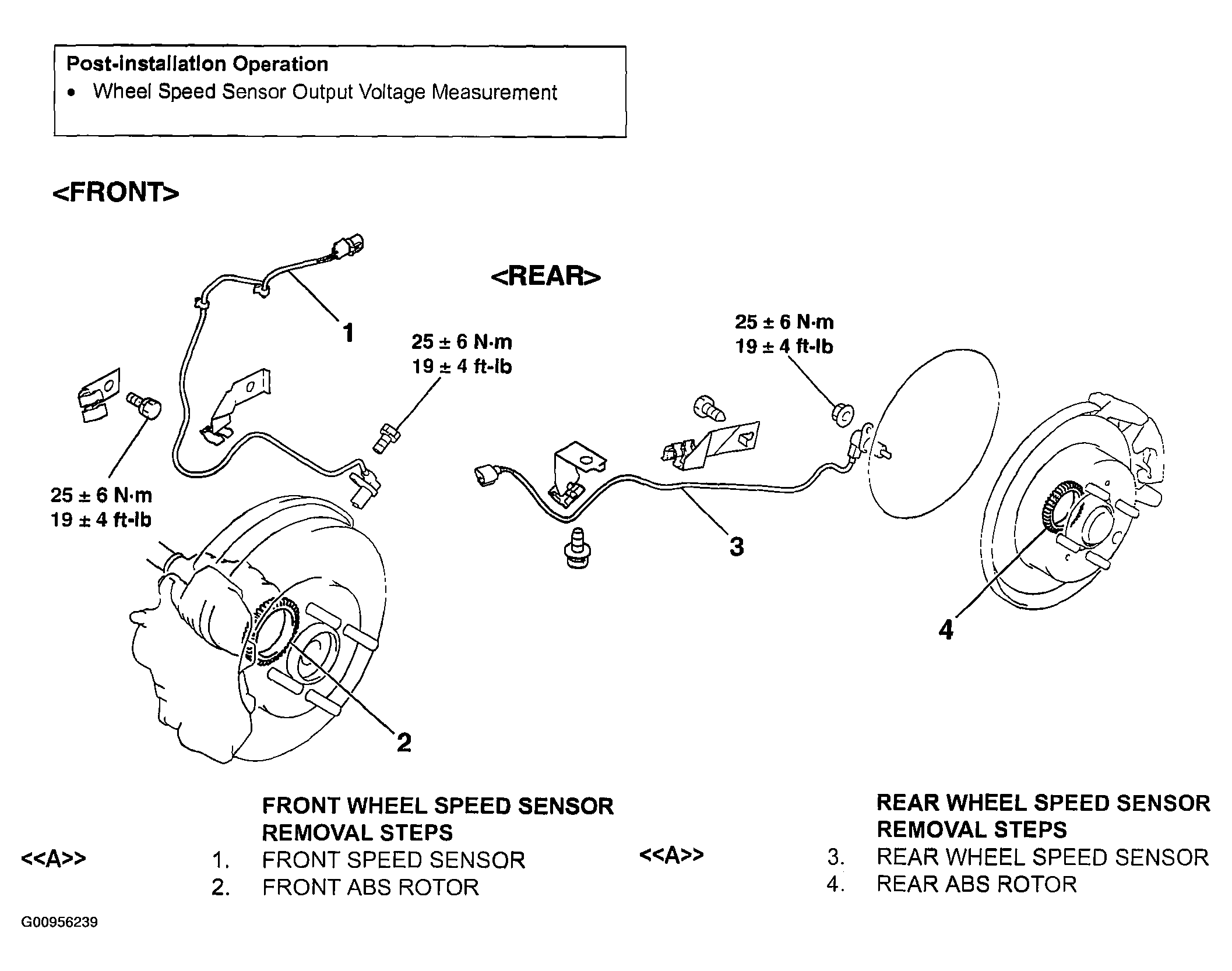

Fig 1: Removing & Installing Wheel Speed Sensor
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
