Special Tools

WARNING: This page is about a different variant/trim than selected.

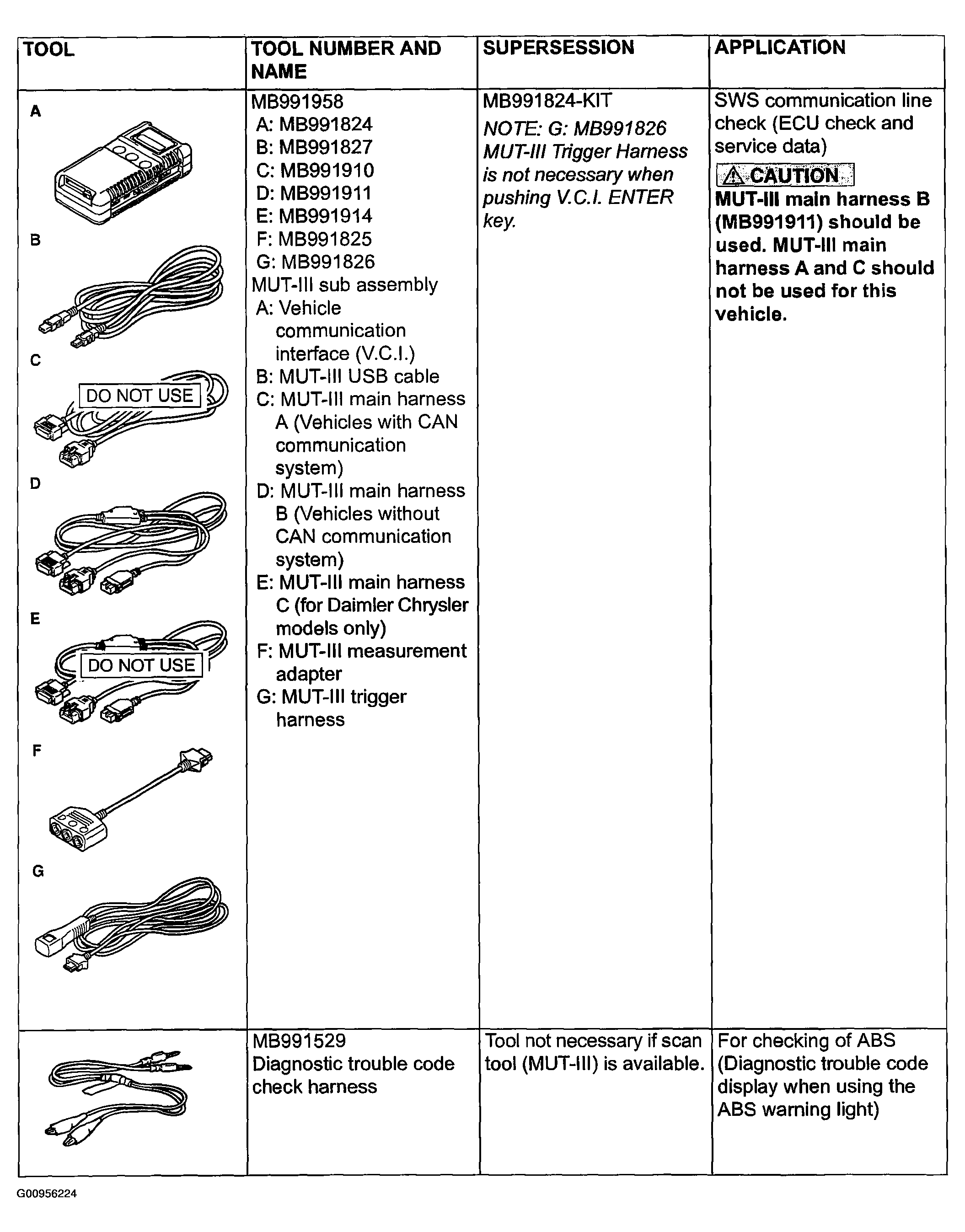

Fig 1: Special Tools (1 Of 2)
G00956224Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

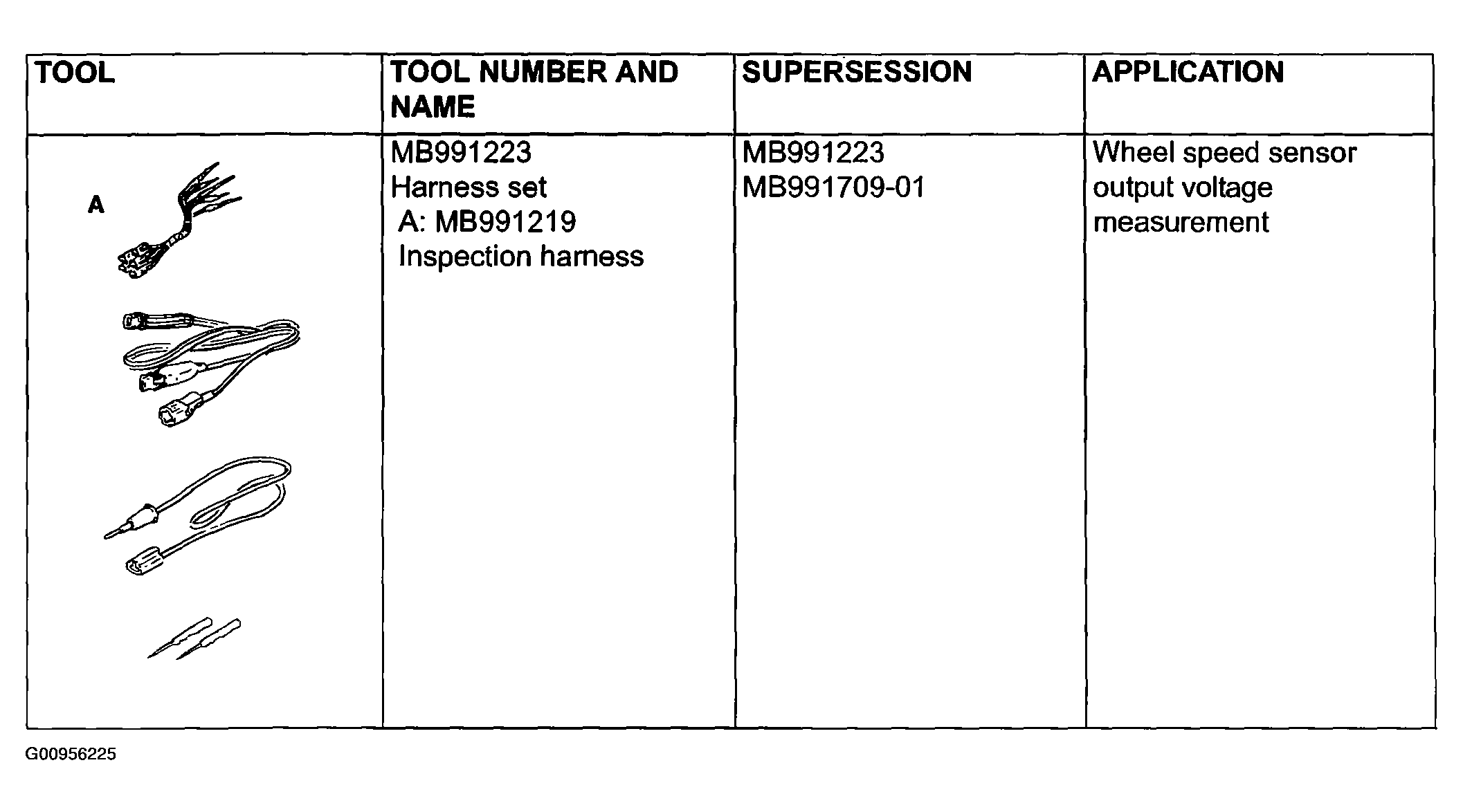

Fig 2: Special Tools (2 Of 2)
G00956225Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
