Actuator Test Reference Table: Notes

WARNING: This page is about a different variant/trim than selected.

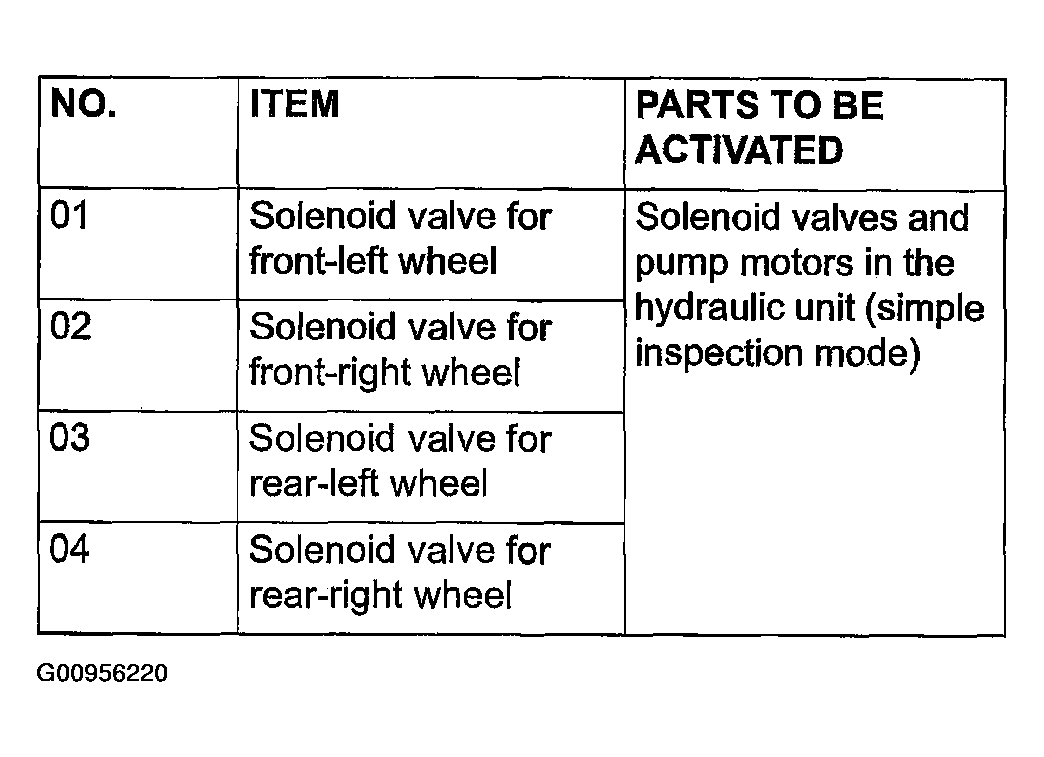

The scan tool activates the following actuators for testing.

NOTE: If the ABS-ECU runs down, actuator testing cannot be carried out.

Fig 1: Identifying Activation Pattern

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: Actuator testing is only possible when the vehicle is stationary.
