Symptom Chart

WARNING: This page is about a different variant/trim than selected.

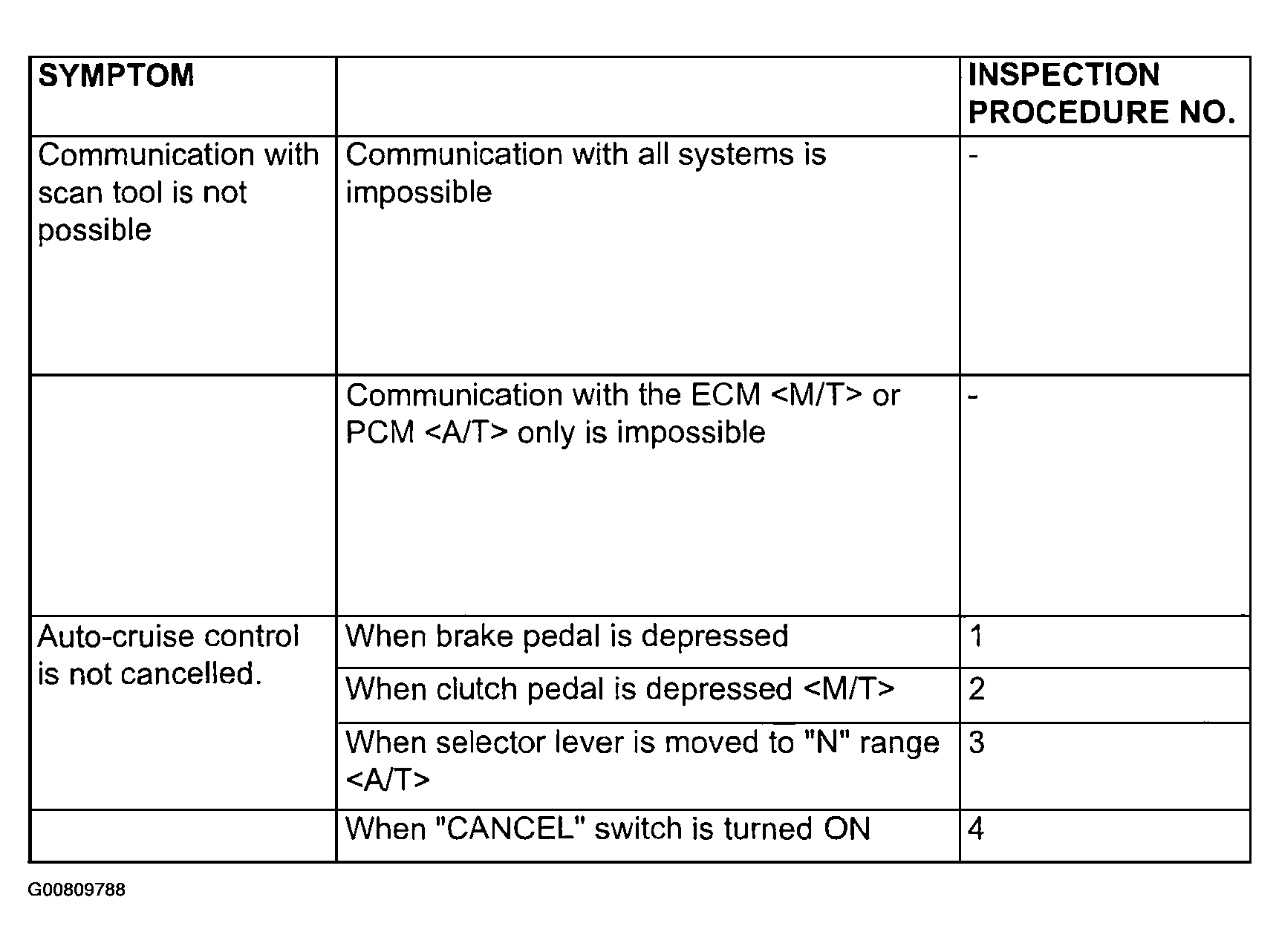

Fig 1: Swmptom Chart (1 Of 2)
G00809788Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

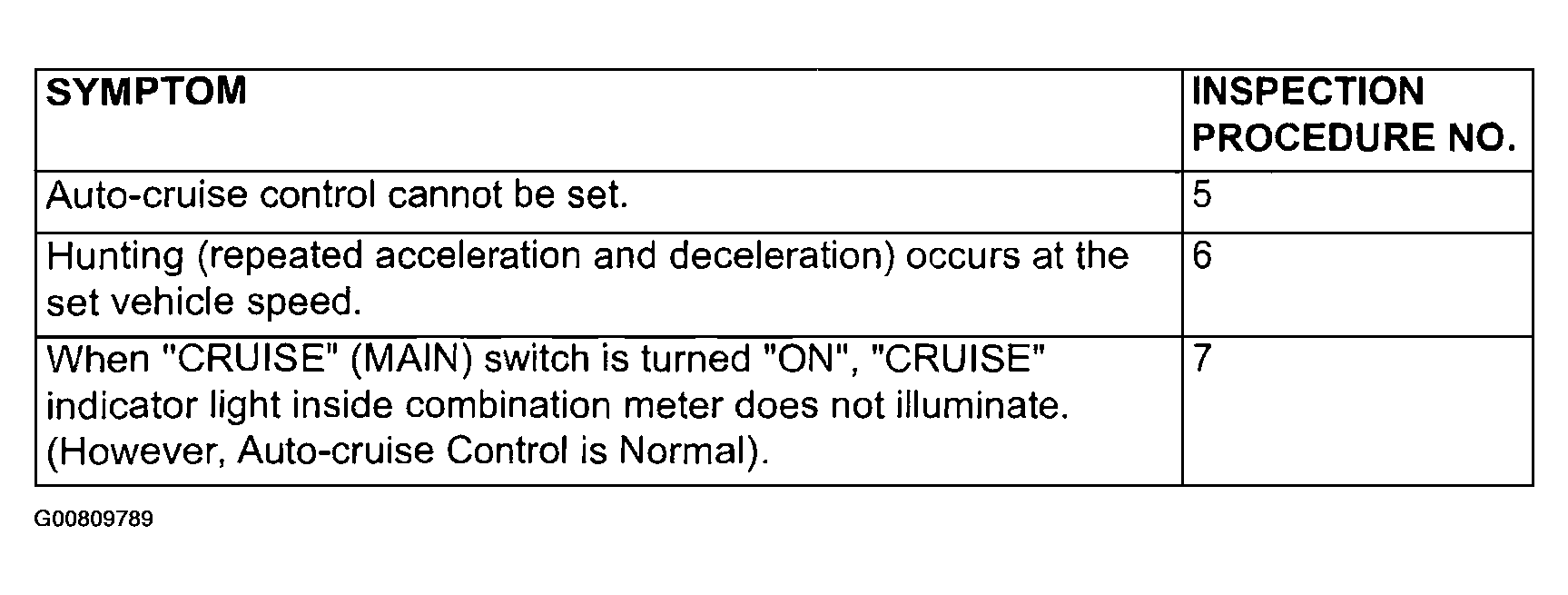

Fig 2: Swmptom Chart (2 Of 2)
G00809789Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
