DTC 22: Stoplight Switch System: Notes

WARNING: This page is about a different variant/trim than selected.

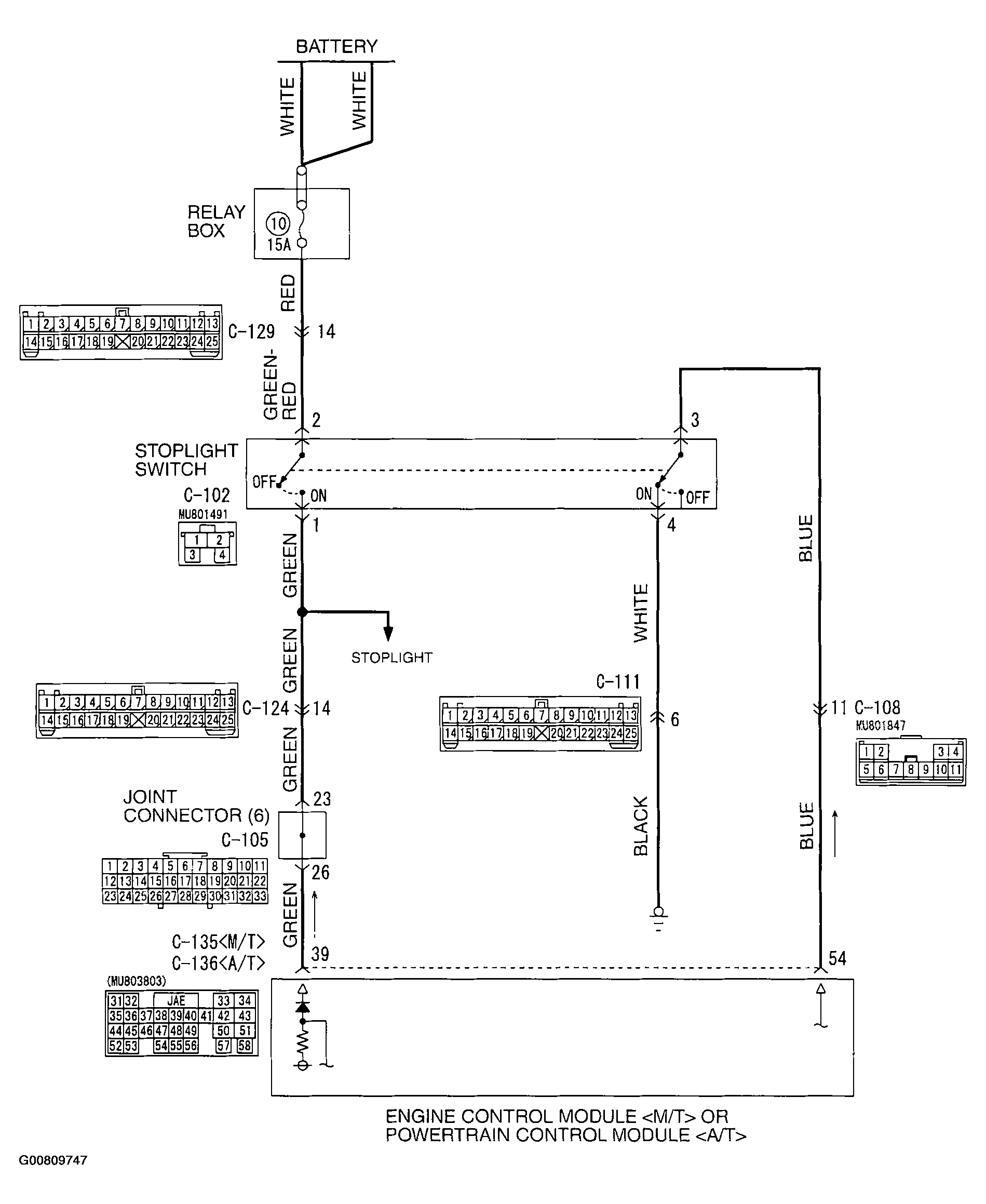

Fig 1: Stoplight Switch System Schematic
G00809747Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

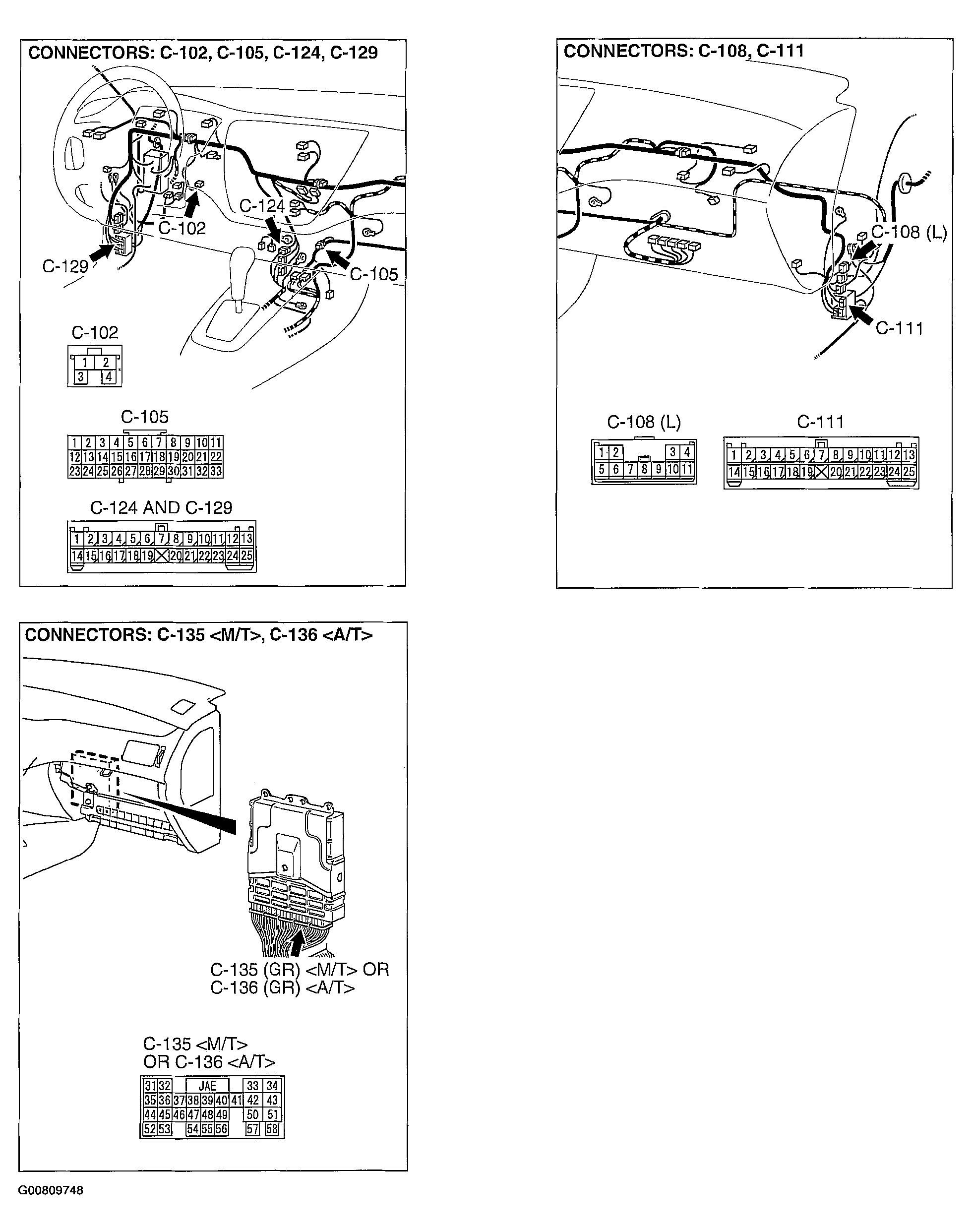

Fig 2: Component & Connector Locations
G00809748Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
