DTC 12: Vehicle Speed Signal System < M/T >: Notes

WARNING: This page is about a different variant/trim than selected.

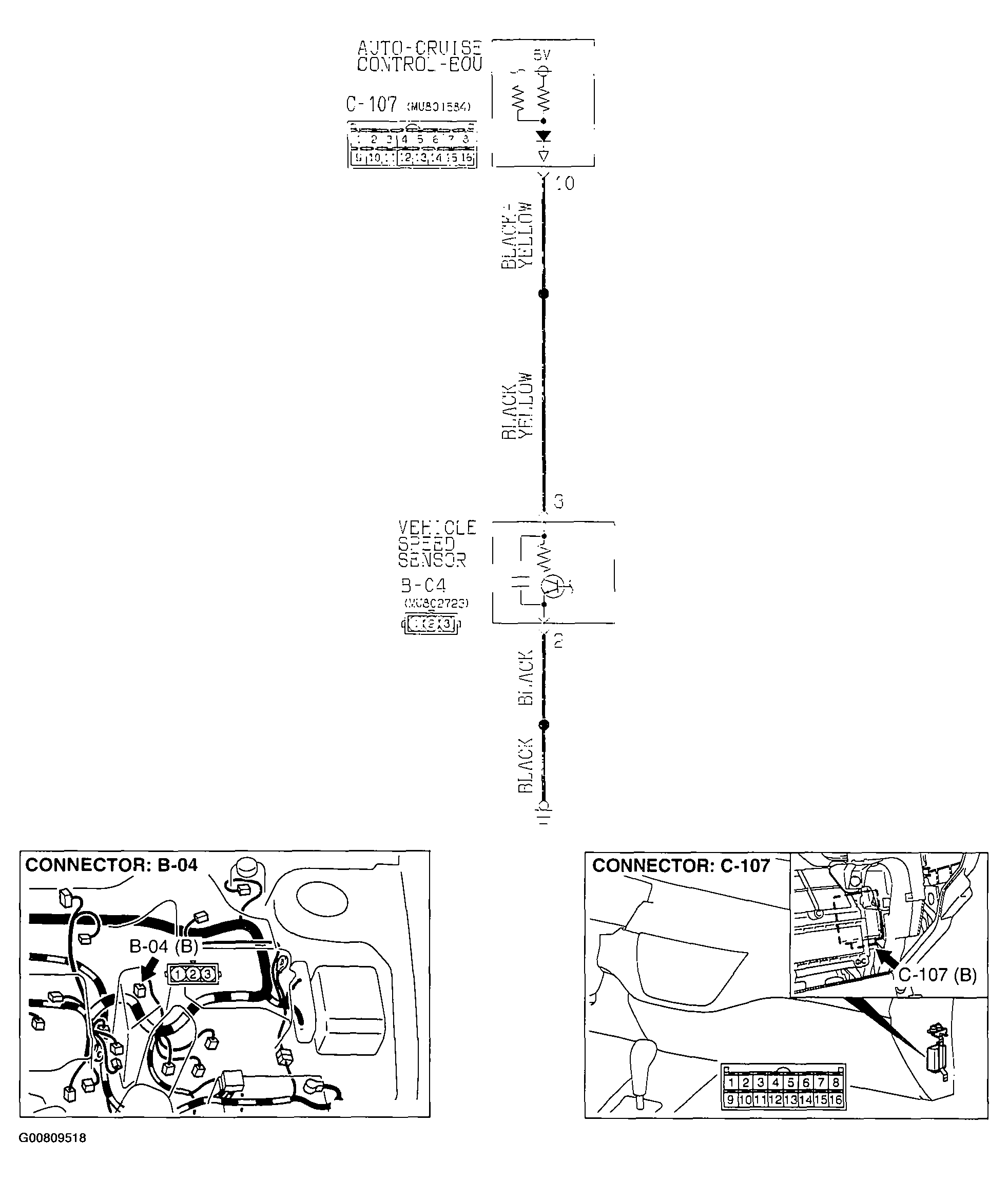

Fig 1: Vehicle Speed Signal System Circuit Diagram & Connector Identification
G00809518Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
