Section 39 (Auto-Cruise Control System - 2.0L (Except Evolution & SPORTBACK))
>>
Auto-Cruise Control System Diagnosis
>>
Check Auto-Cruise Control-Ecu Terminals
Check Auto-Cruise Control-Ecu Terminals
WARNING:
This page is about a different variant/trim than selected.
Fig 1: Checking Auto-Cruise Control-ECU Terminals
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

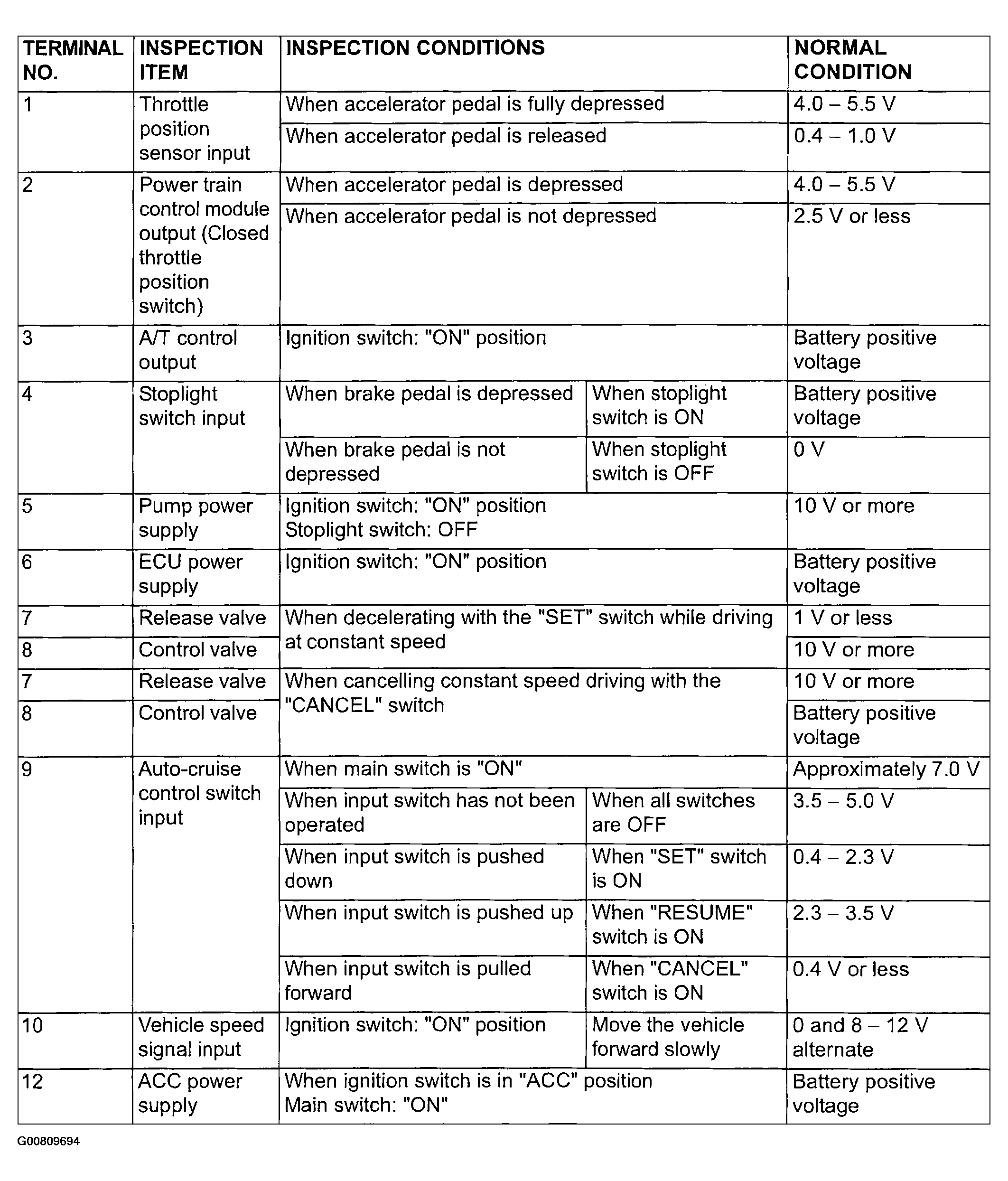

Fig 2: Inspecting Condition (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

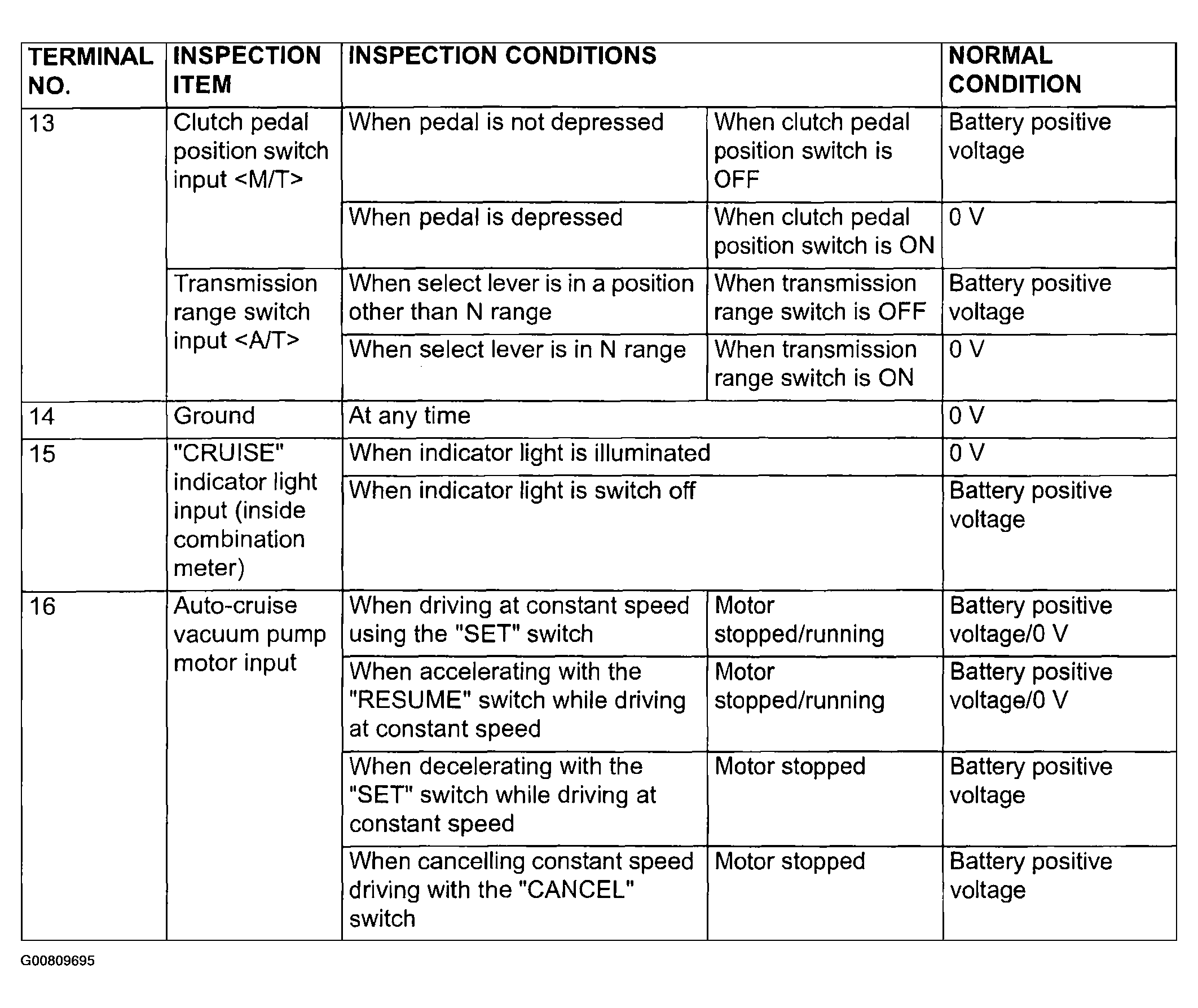

Fig 3: Inspecting Condition (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
