Auto-Cruise Control System Diagnostic Trouble Code Diagnosis: Notes

WARNING: This page is about a different variant/trim than selected.

Retrieving Auto-cruise Control System Diagnostic Trouble Codes.

Using scan tool MB991958

Required Special Tool:

MB991958: Scan Tool (MUT-III Sub Assembly)
- MB991824: V.C.I.
- MB991827: MUT-III USB Cable
- MB991911: MUT-III Main Harness B

CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

Connect scan tool MB991958 to the data link connector.

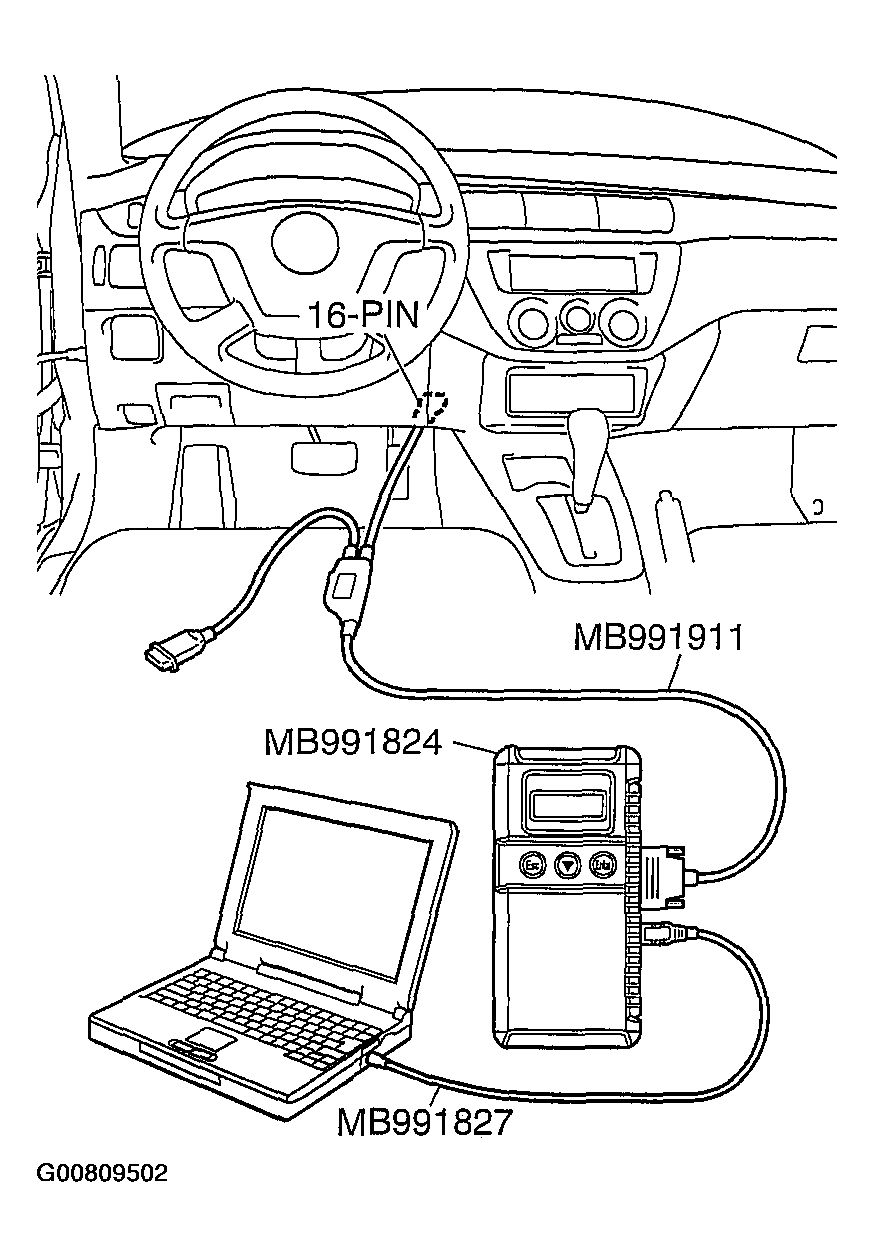

Fig 1: Connecting Scan Tool MB991958 To Data Link Connector
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Turn the ignition switch to the "ON" position.
Use scan tool MB991958 to check for auto-cruise control system diagnostic trouble codes.
Turn the ignition switch to the "LOCK" (OFF) position.
Disconnect scan tool MB991958.
