Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

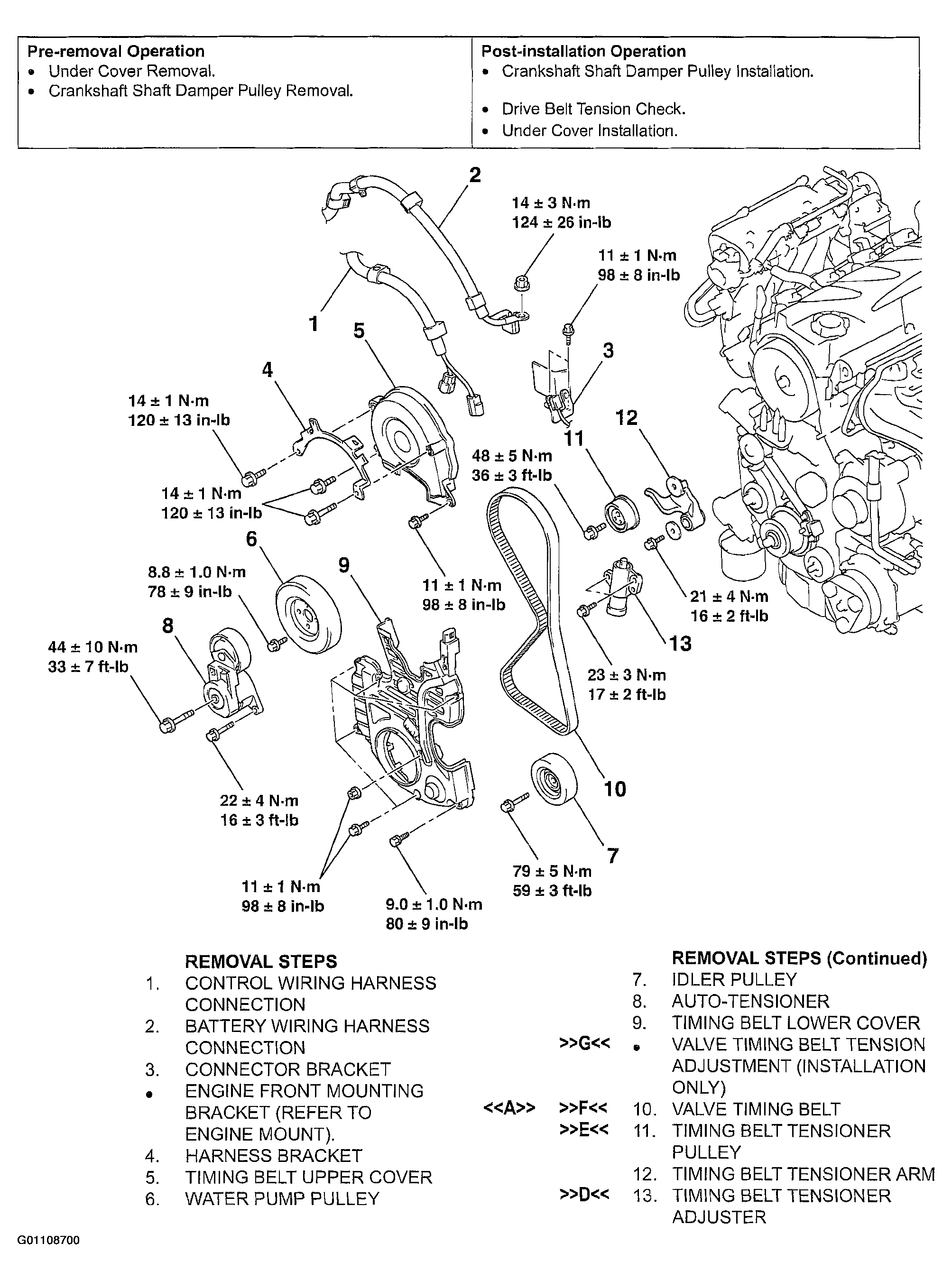

Fig 1: Timing Belt Removal And Installation Operation (1 Of 2)
G01108700Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

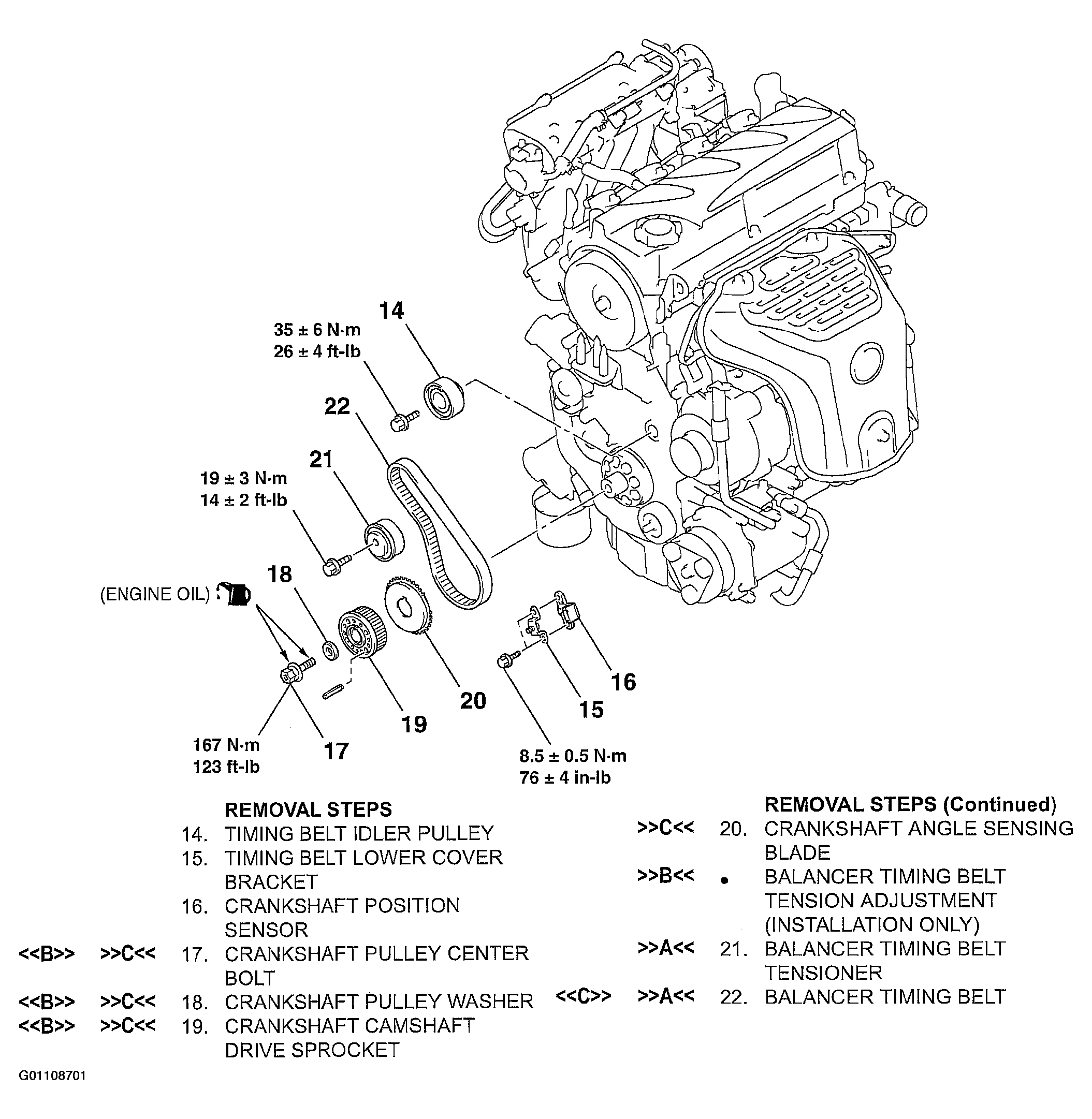

Fig 2: Timing Belt Removal And Installation Operation (1 Of 2)
G01108701Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
