Section 32 (On-Vehicle Service - 2.4L (Except Evolution & SPORTBACK)): General Description
WARNING: This page is about a different variant/trim than selected.

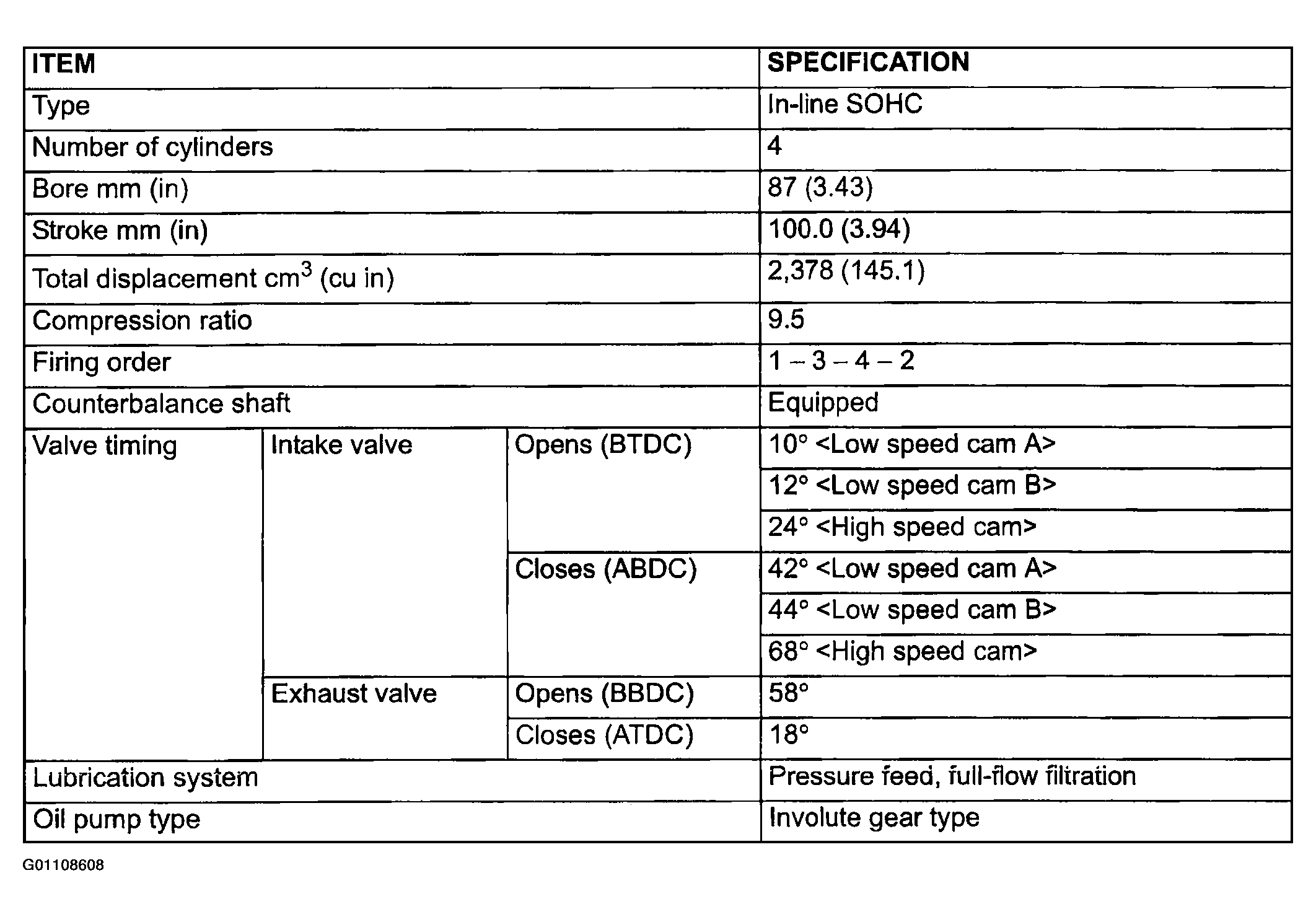

The 4G69 (2.4L) engine is an in-line four cylinder engine. The cylinder numbers are assigned as 1-2-3-4 from the front of the engine (timing belt side). This engine is fired in the order of the 1,3,4 and 2 cylinders.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
