Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION: *:indicates parts which should be temporarily tightened, and then fully tightened with the engine weight applied on the vehicle body.

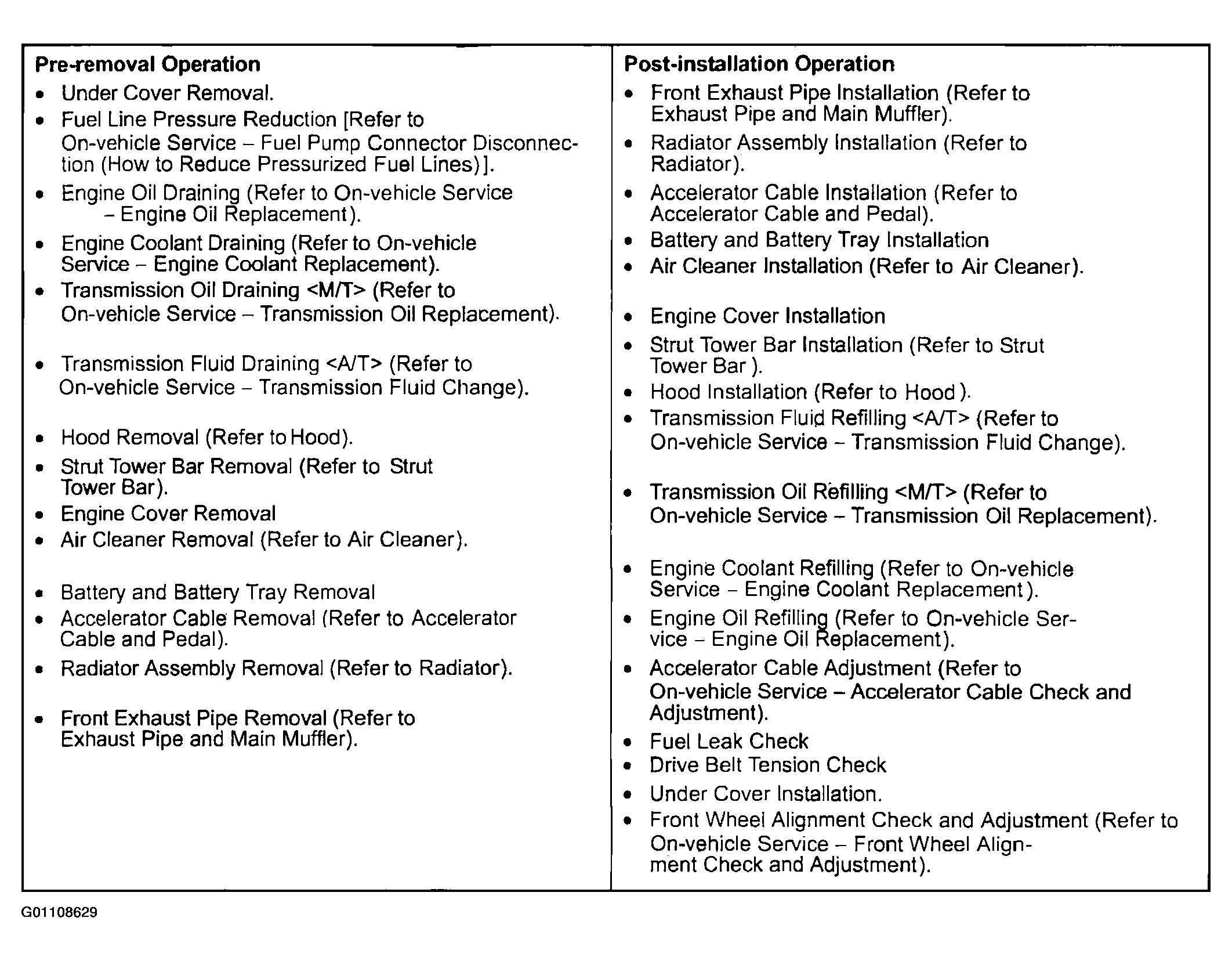

Fig 1: Engine Removal And Installation Chart
G01108629Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

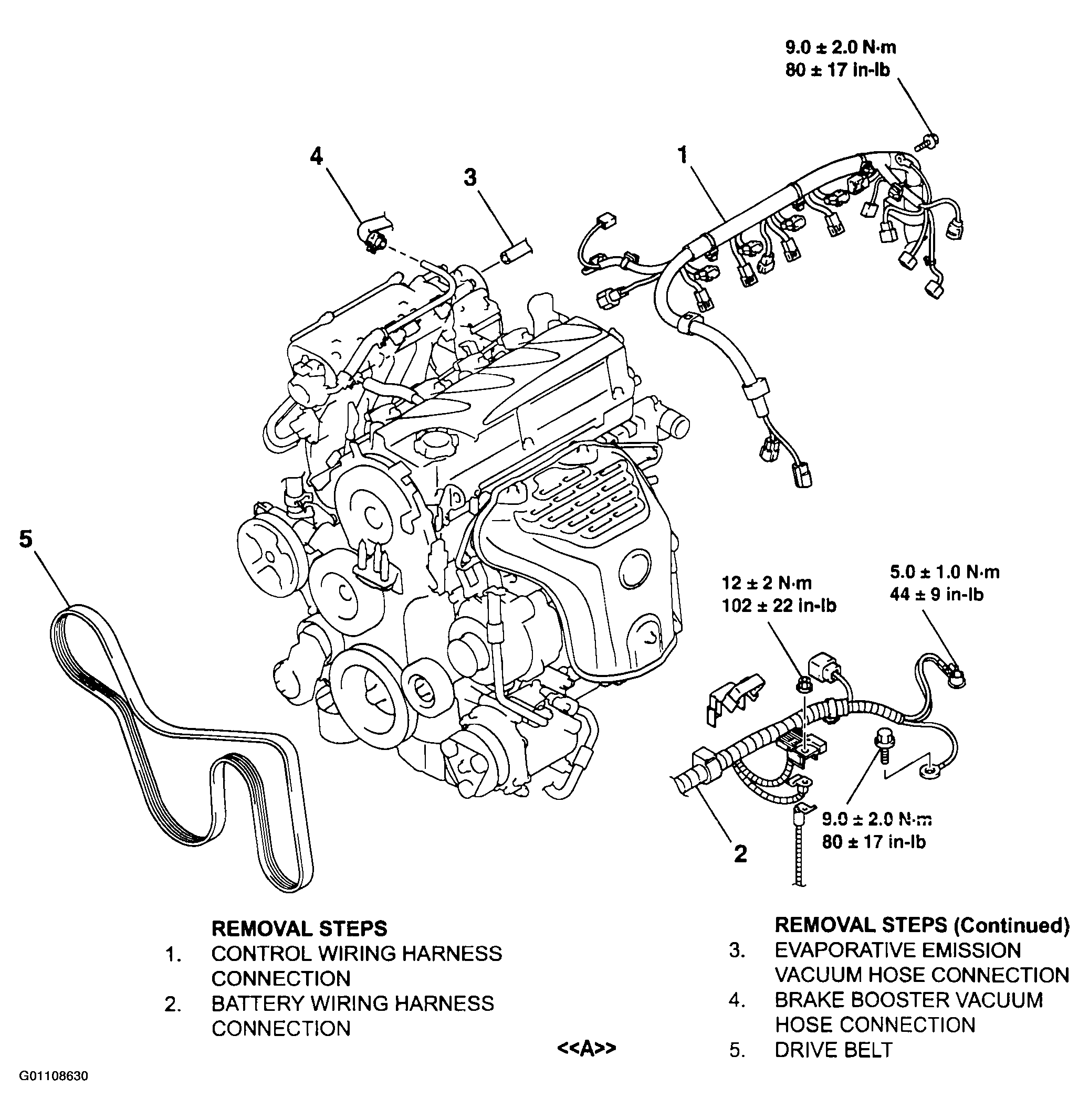

Fig 2: Identifying Engine Assembly (1 Of 2)
G01108630Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

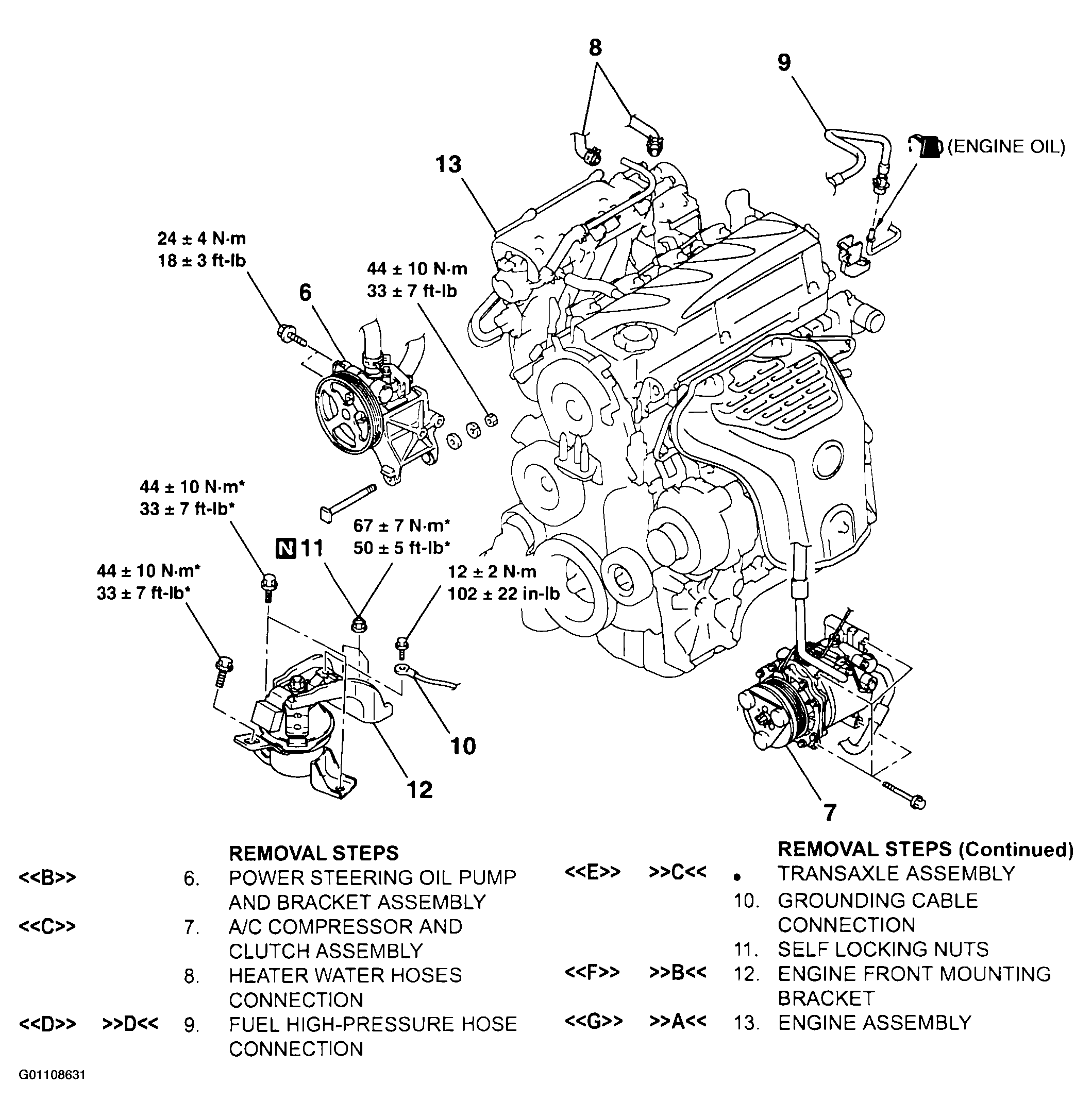

Fig 3: Identifying Engine Assembly (2 Of 2)
G01108631Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
