Disassembly And Assembly

WARNING: This page is about a different variant/trim than selected.

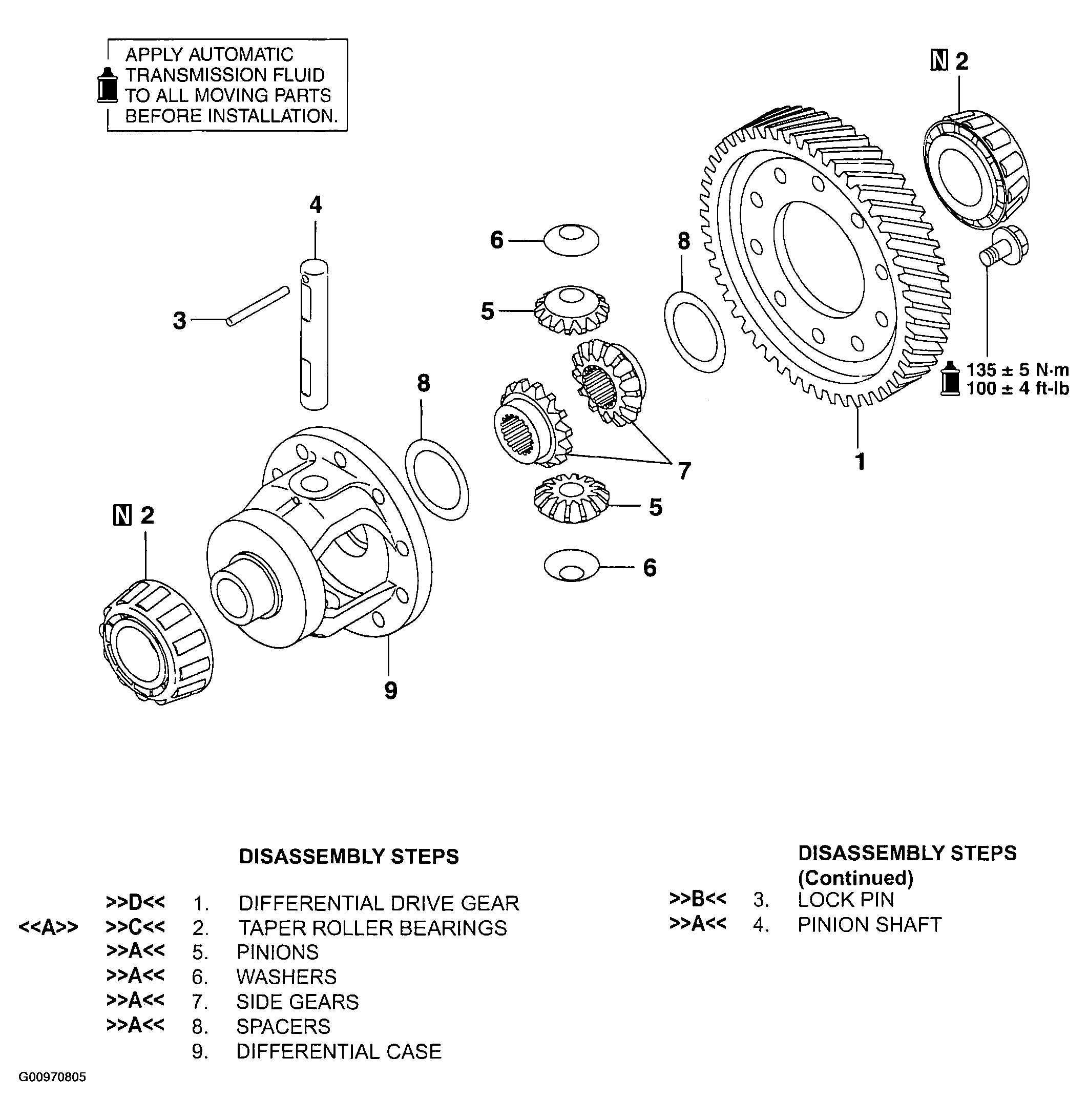

Fig 1: Exploded View Of Differential
G00970805Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
