Transmission Range Switch And Control Cable Adjustment
WARNING: This page is about a different variant/trim than selected.
- Set the selector lever to the "N" position.

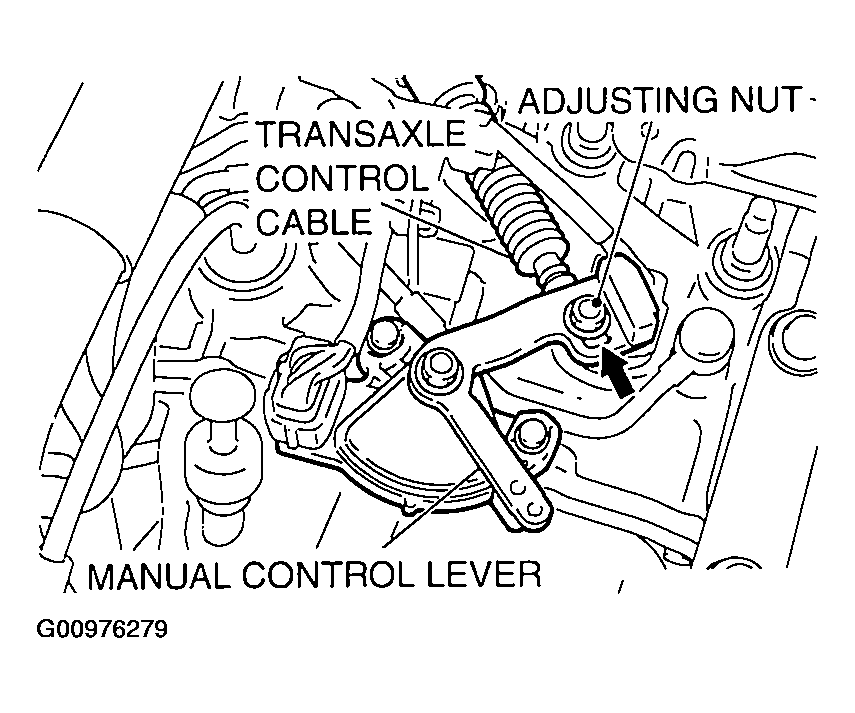

- Loosen the control cable to the manual control lever coupling nut to free the cable and lever.
- Set the manual control lever to the neutral position.

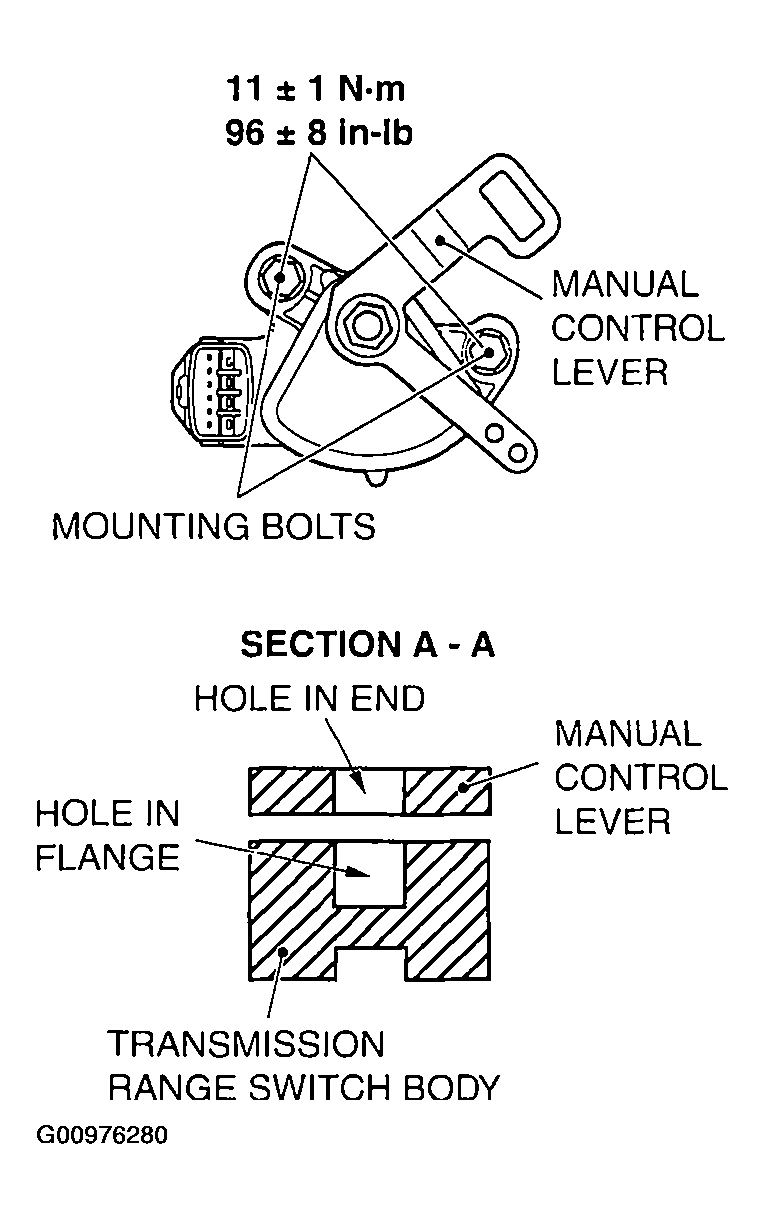

- Loosen the transmission range switch body mounting bolts and turn the park/neutral position switch body so the hole in the end of the manual control lever and the hole (section A - A in the figure on the left) in the flange of the transmission range switch body flange are aligned.NOTE: The transmission range switch body can be aligned by inserting a 5-mm diameter steel bar into the end hole of the manual control lever and the flange hole of the transmission range switch body.
- Tighten the transmission range switch body mounting bolts to the specified torque. Be careful at this time that the switch body does not move.
Tightening torque: 11 +/- 1 N.m (96 +/- 8 in-lb)

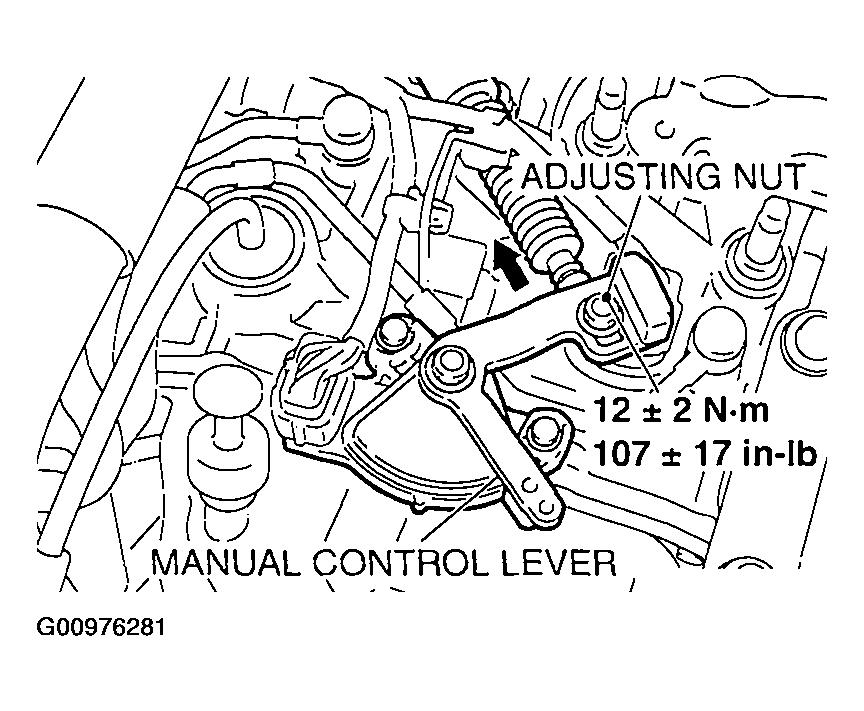

- Gently push the transaxle control cable in the direction of the arrow shown in illustration, until the cable is taut. Tighten the adjusting nut.
Tightening torque: 12 +/- 2 N.m (107 +/- 17 in-lb)
- Check that the selector lever is in the "N" position.
- Check that each position of the manual control lever matches each position of the selector lever using scan tool MB991958 (MUT-III sub assembly).
