Solenoid Valve Check

WARNING: This page is about a different variant/trim than selected.
  1. Use scan tool MB991958 (MUT-III sub assembly) to measure the transmission fluid temperature. The desired transmission fluid temperature setting for performing the solenoid valve check is 20°C (68°F).
  2. Remove the A/T control solenoid valve assembly connector.

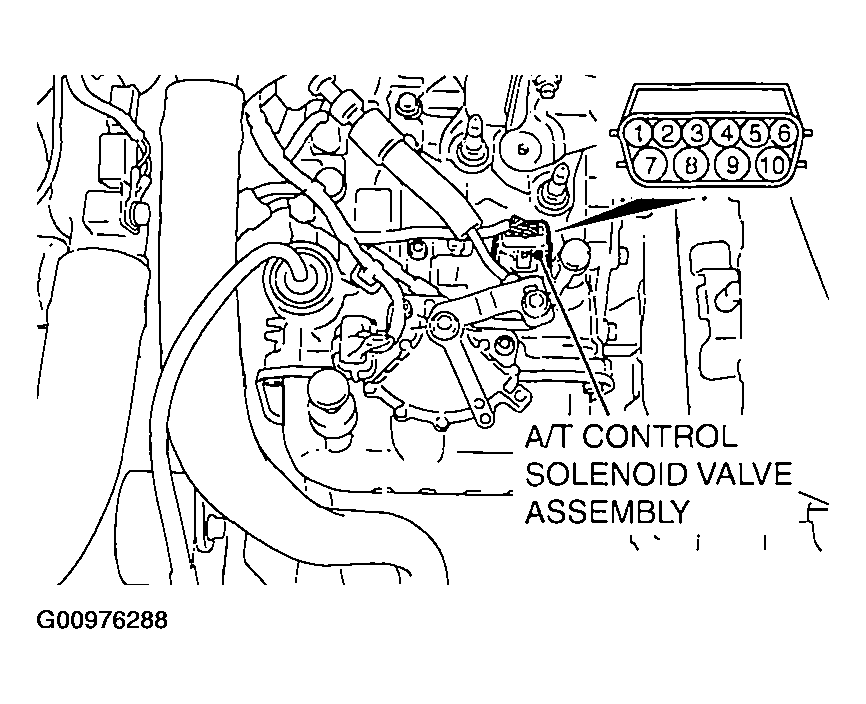

    Fig 1: Removing A/T Control Solenoid Valve Assembly Connector
    G00976288Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. Measure the resistance between the solenoid valve terminals.
  4. The measured resistance of the solenoid valve when the transmission fluid temperature is 20°C (68°F) should match the specified resistance on the illustration.

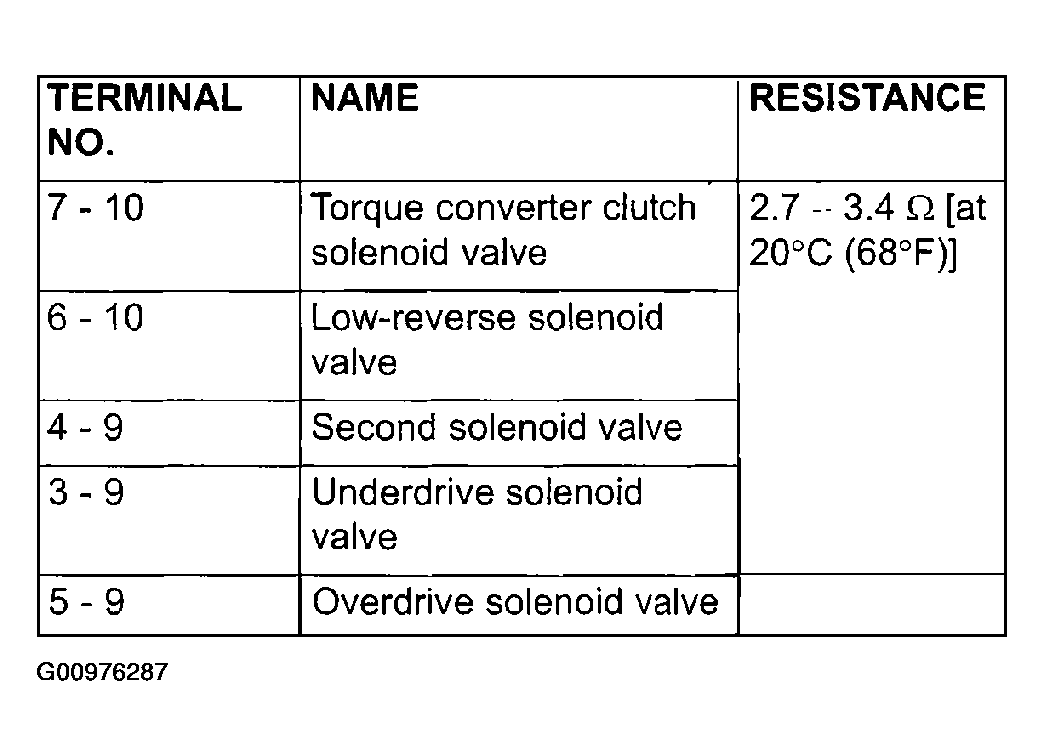

    Fig 2: Solenoid Valve Resistance Chart
    G00976287Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  5. If the solenoid valve resistance is within the specified range, check the power supply and the ground circuits.
  6. If the solenoid valve resistance is not within the specified range, drain the transmission fluid and remove the valve body cover.
  7. Disconnect the connector of any solenoid valves that are not within the specified range.

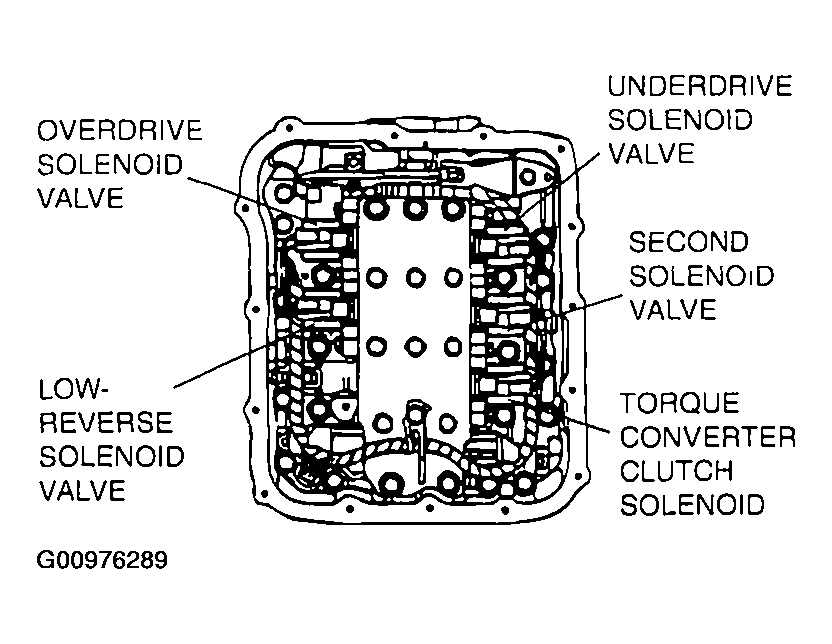

    Fig 3: Locating Solenoid Valves
    G00976289Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  8. Measure the resistance between terminals 1 and 2 of any solenoid valve that was not within the specified range.

    Specified resistance: 2.7 - 3.4 +/- [at 20°C (68°F)]

  9. If the resistance is not within the specified range, replace the solenoid valve.
  10. If the resistance is within the specified range, check the wiring harness between the affected A/T control solenoid valve assembly and the solenoid valve. If a problem is not found in the above steps, check the solenoid valve O-rings and replace them if necessary.
    Fig 4: Measuring Resistance Between Terminals 1 And 2
    G00976290Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
