When using a tension gauge

WARNING: This page is about a different variant/trim than selected.
  1. Check the drive belt tension. (Refer to DRIVE BELT TENSION CHECK  ).
  2. Use a belt tension gauge in the middle of the belt between the pulleys (at the place indicated by the arrow) to measure that the belt tension is within the standard value.

    Standard value: 340 - 560 N

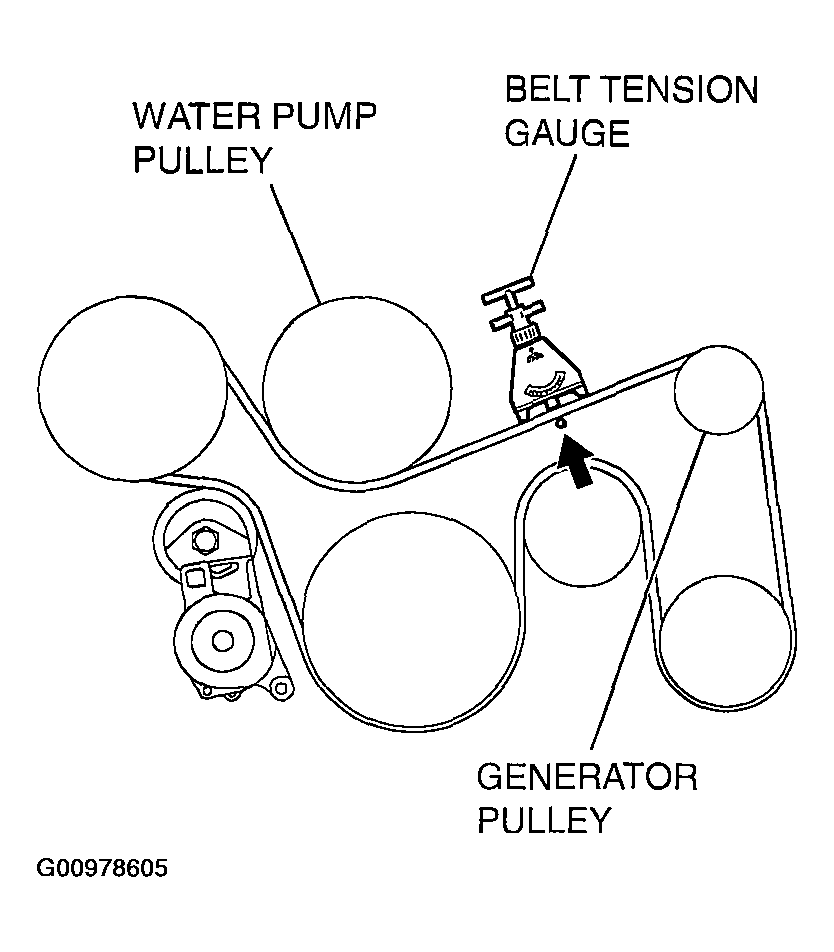

    Fig 1: Using A Belt Tension Gauge In Middle Of Belt Between Pulleys
    G00978605Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. If not within the standard value, replace the auto-tensioner. (Refer to TIMING BELT  ).
