Removal And Installation

WARNING: This page is about a different variant/trim than selected.
CAUTION: *: Indicates parts which should be temporarily tightened, and then fully tightened with the engine weight applied on the vehicle body.

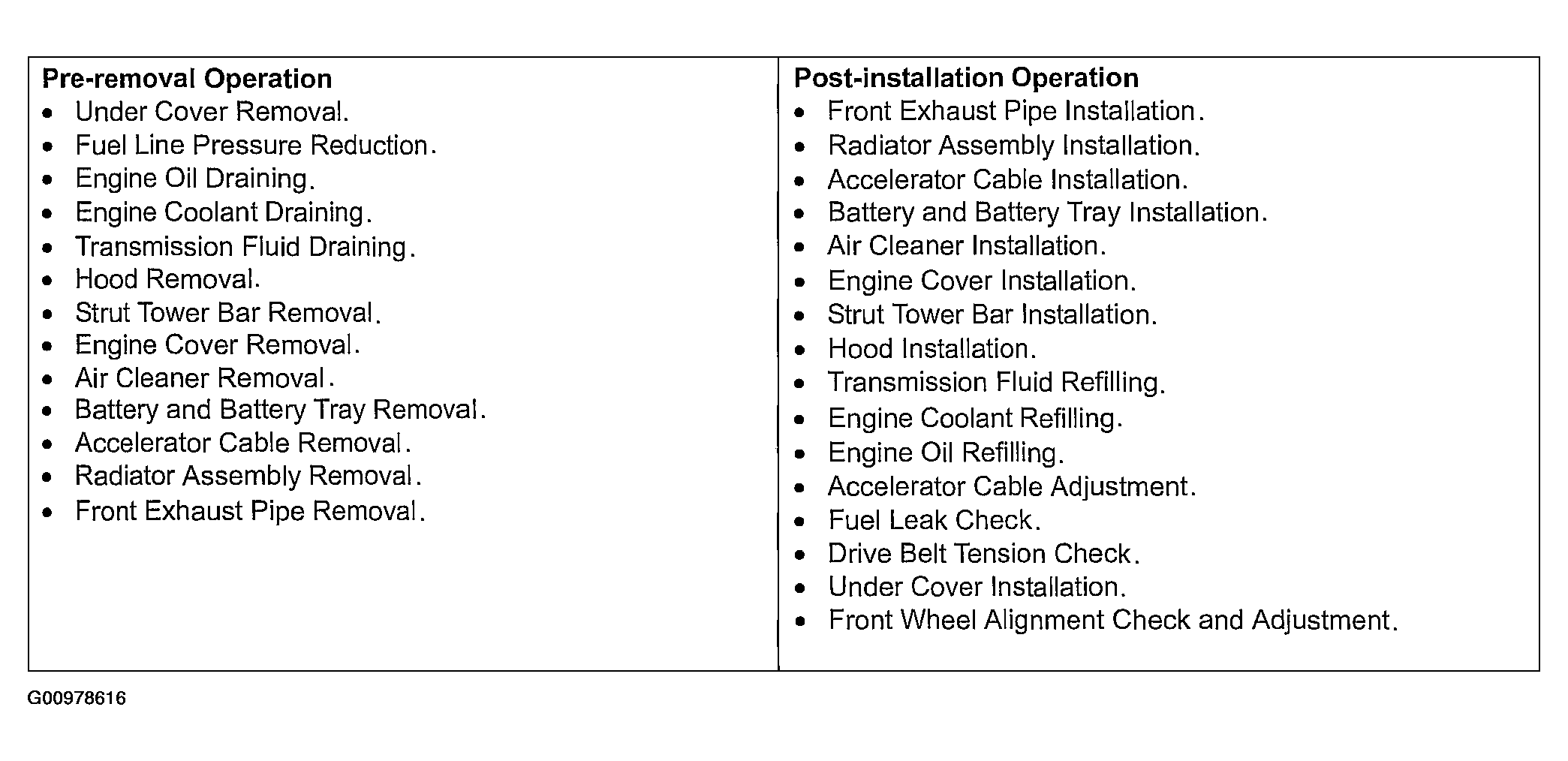

Fig 1: Removing And Installing Procedures For Engine Assembly
G00978616Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

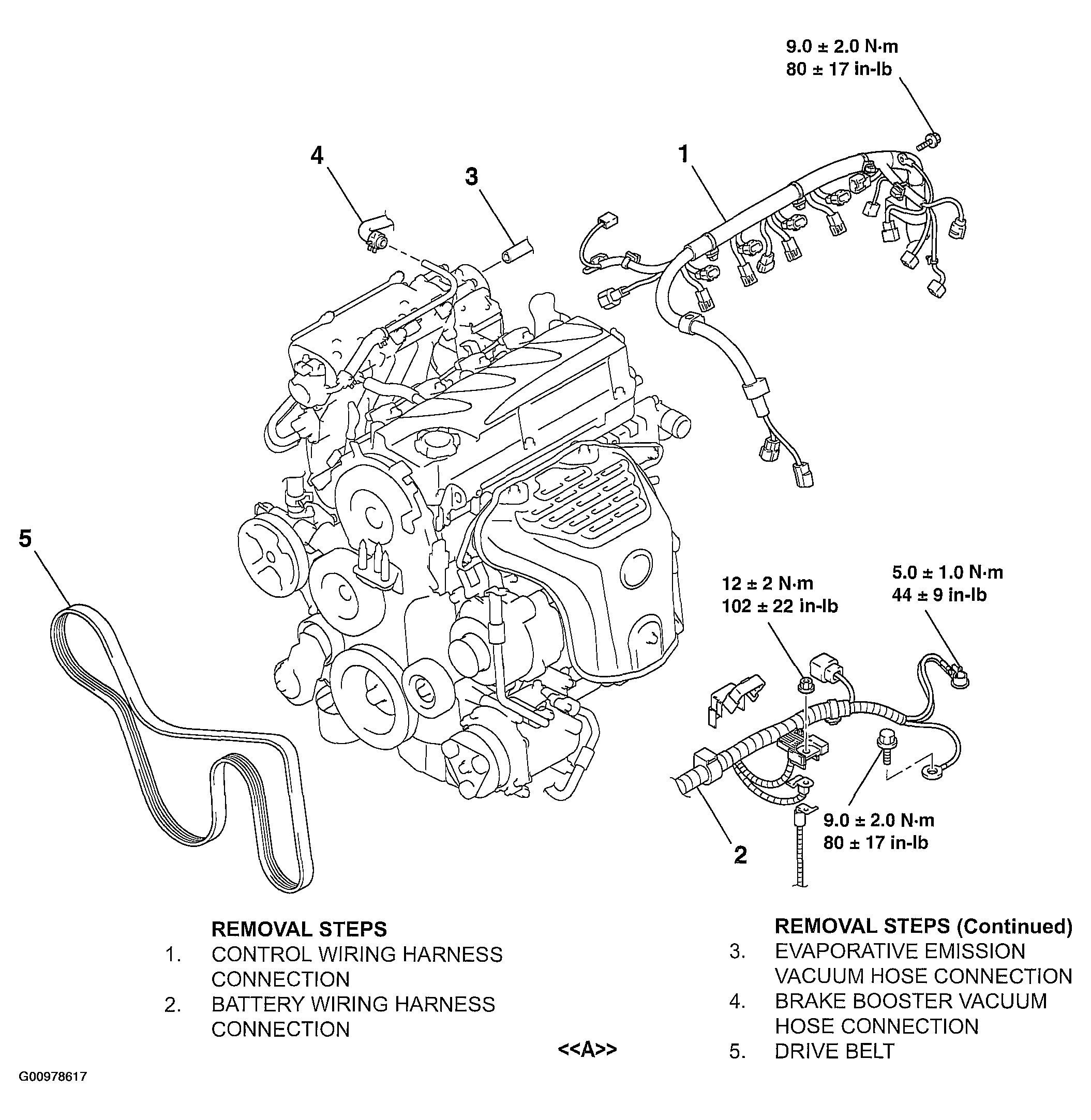

Fig 2: Identifying Engine Assembly Components (1 Of 2)
G00978617Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

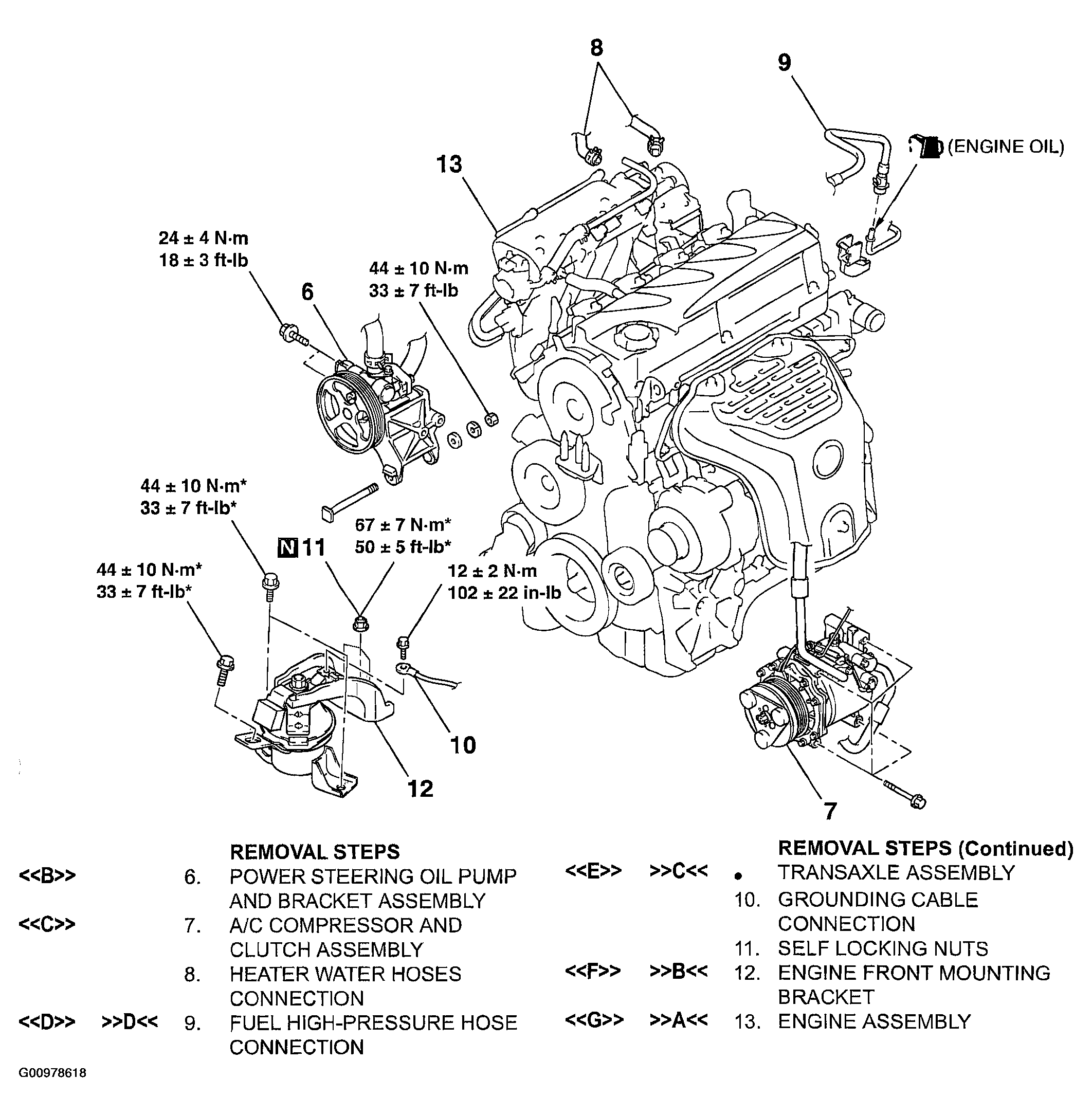

Fig 3: Identifying Engine Assembly Components (2 Of 2)
G00978618Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
