TCL Switch System Circuit

WARNING: This page is about a different car, the 2004 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

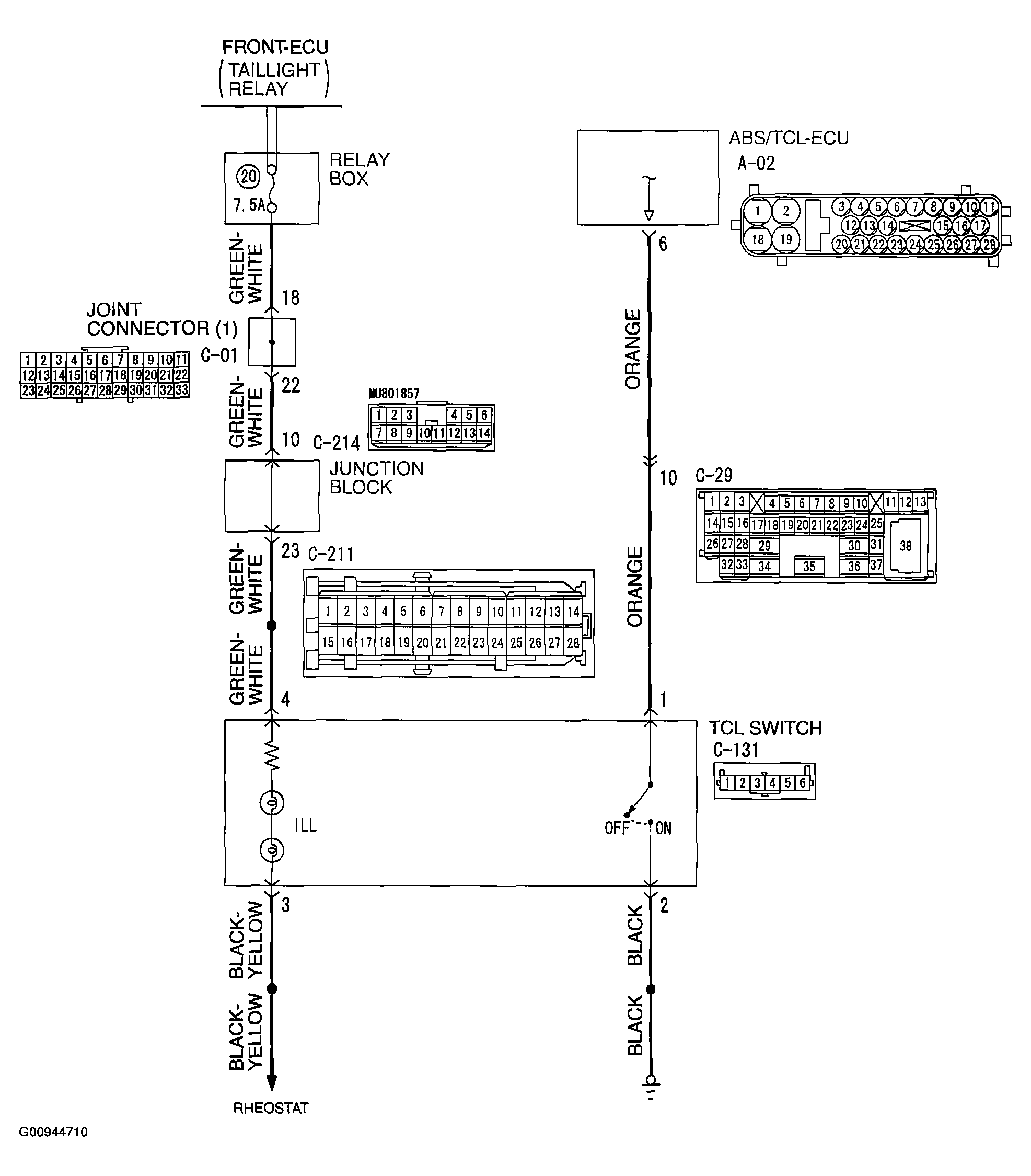

Fig 1: TCL Switch System Circuit
G00944710Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

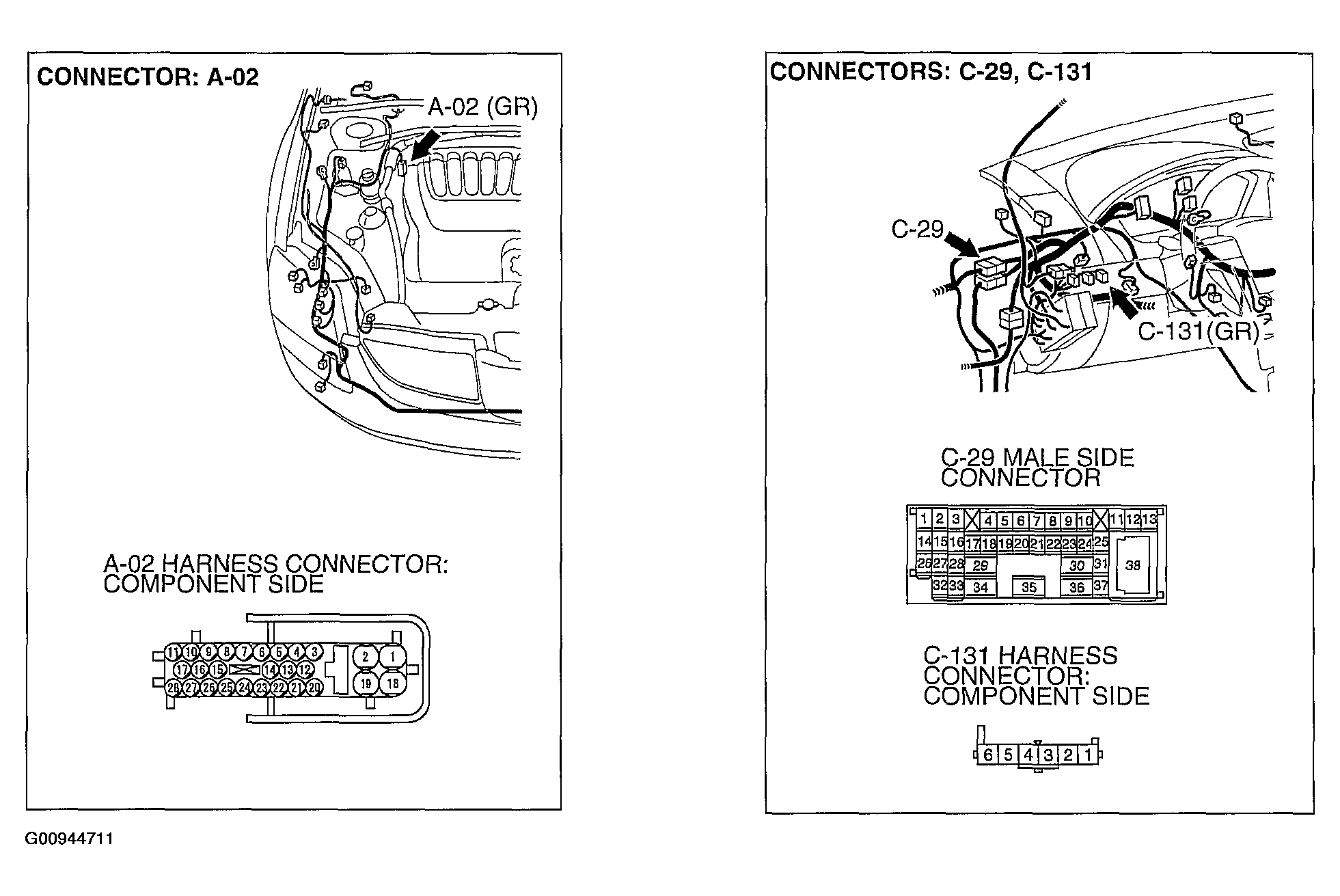

Fig 2: Identifying Connectors
G00944711Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
