General Circuit Diagram For The Power Windows

WARNING: This page is about a different car, the 2004 Mitsubishi Eclipse. However, it is still accessible from the selected car via links, so may be relevant.

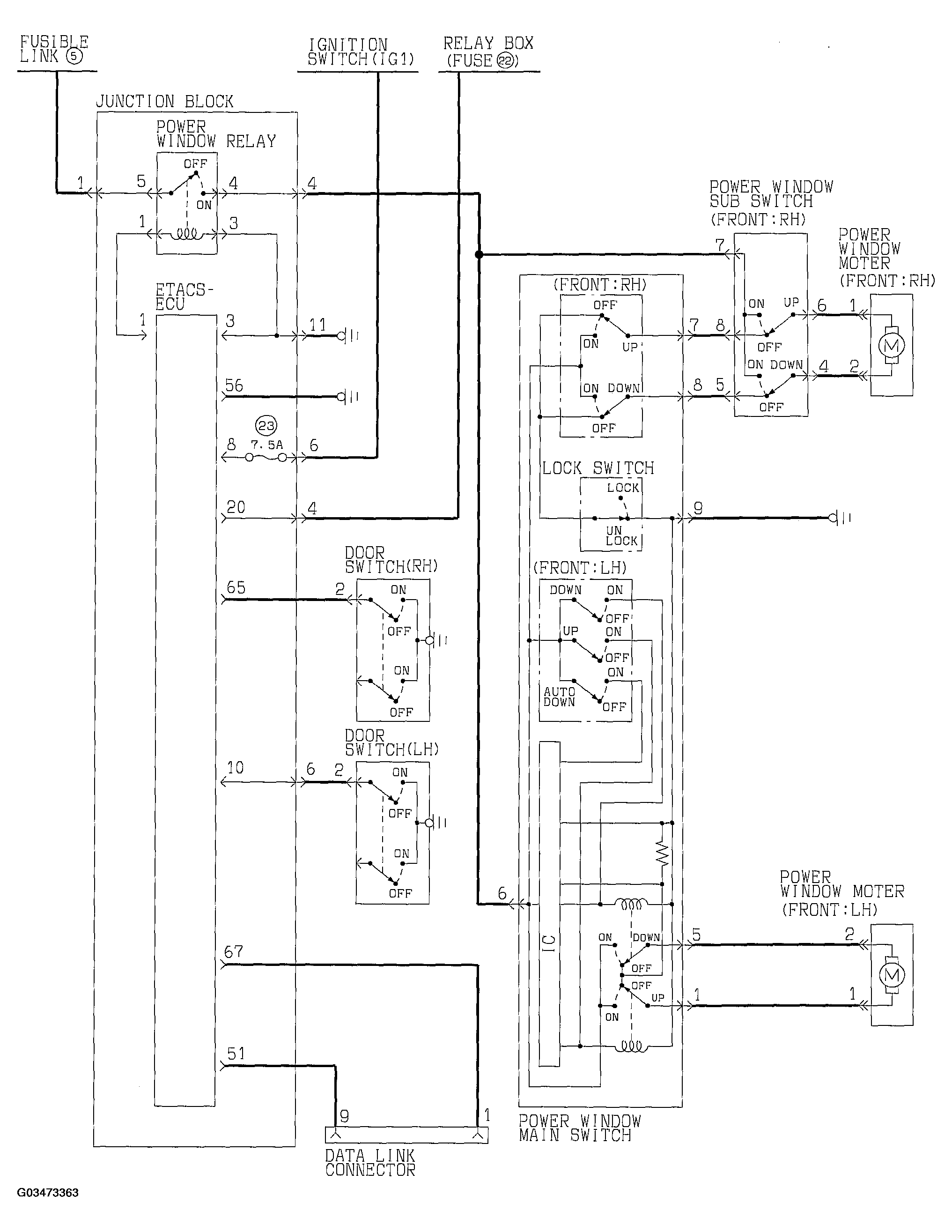

Fig 1: View Of Power Windows General Circuit Diagram
G03473363Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
