Removal And Installation: Notes

WARNING: This page is about a different car, the 2004 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The ABS-ECU is integrated in the hydraulic unit.

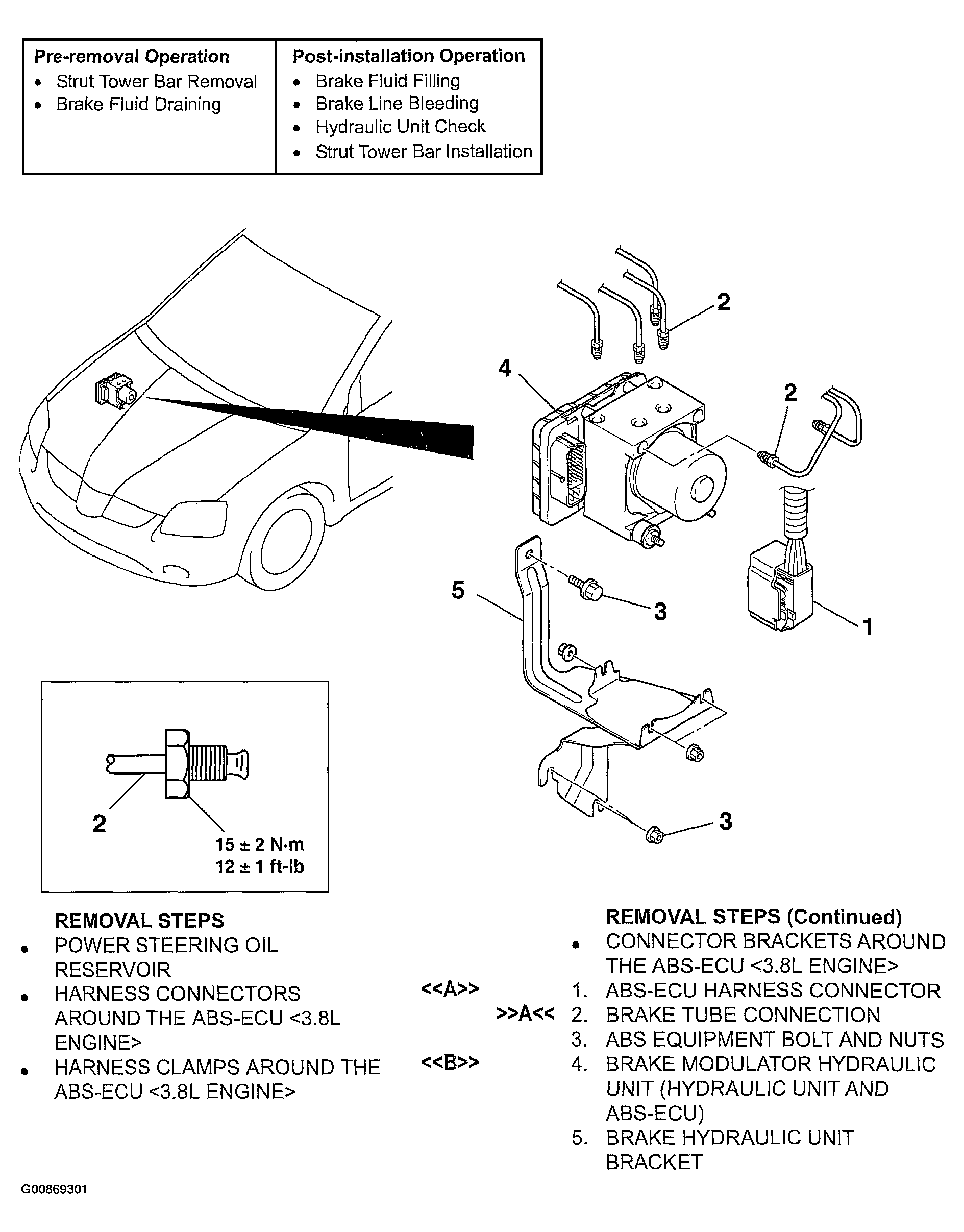

Fig 1: Removing And Installing Hydraulic Unit
G00869301Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
