Actuator Test Reference Table: Notes

WARNING: This page is about a different car, the 2004 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

The scan tool activates the following actuators for testing.

NOTE: If the ABS-ECU runs down, actuator testing cannot be carried out.

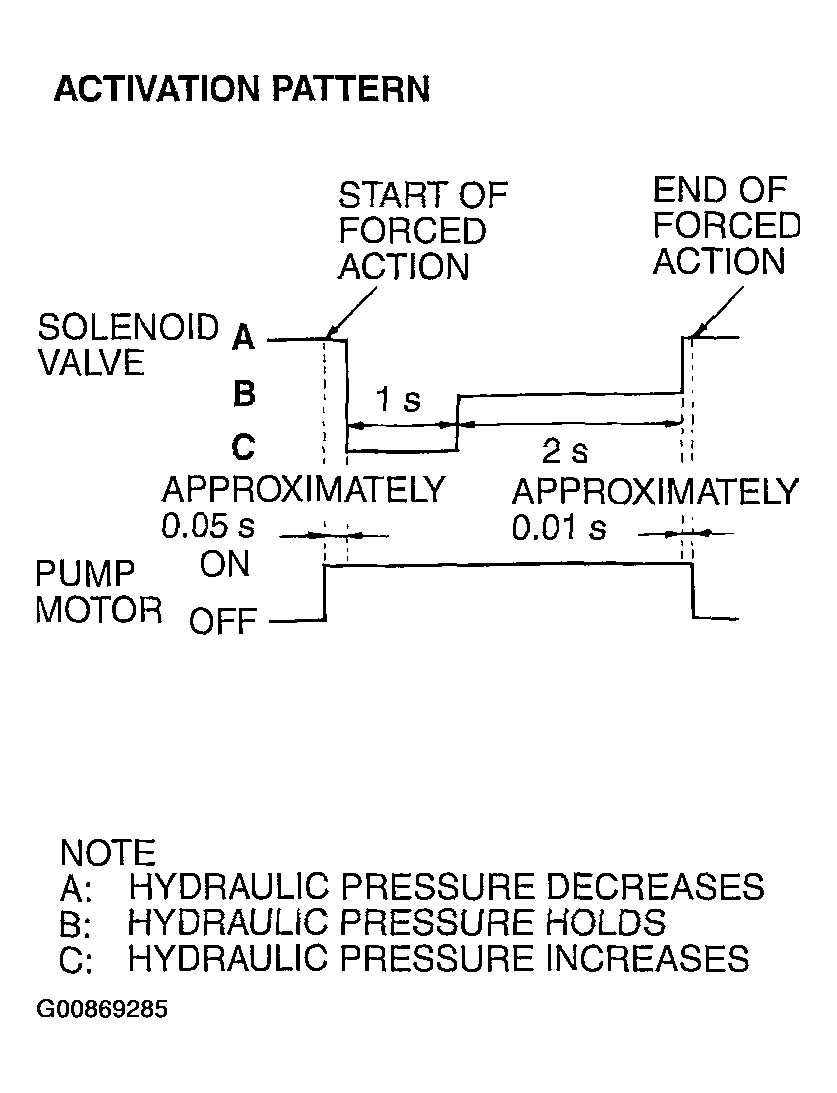

Fig 1: Identifying Activation Pattern For Actuator
G00869285Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: Actuator testing is only possible when the vehicle is stationary.
