Disassembly And Assembly

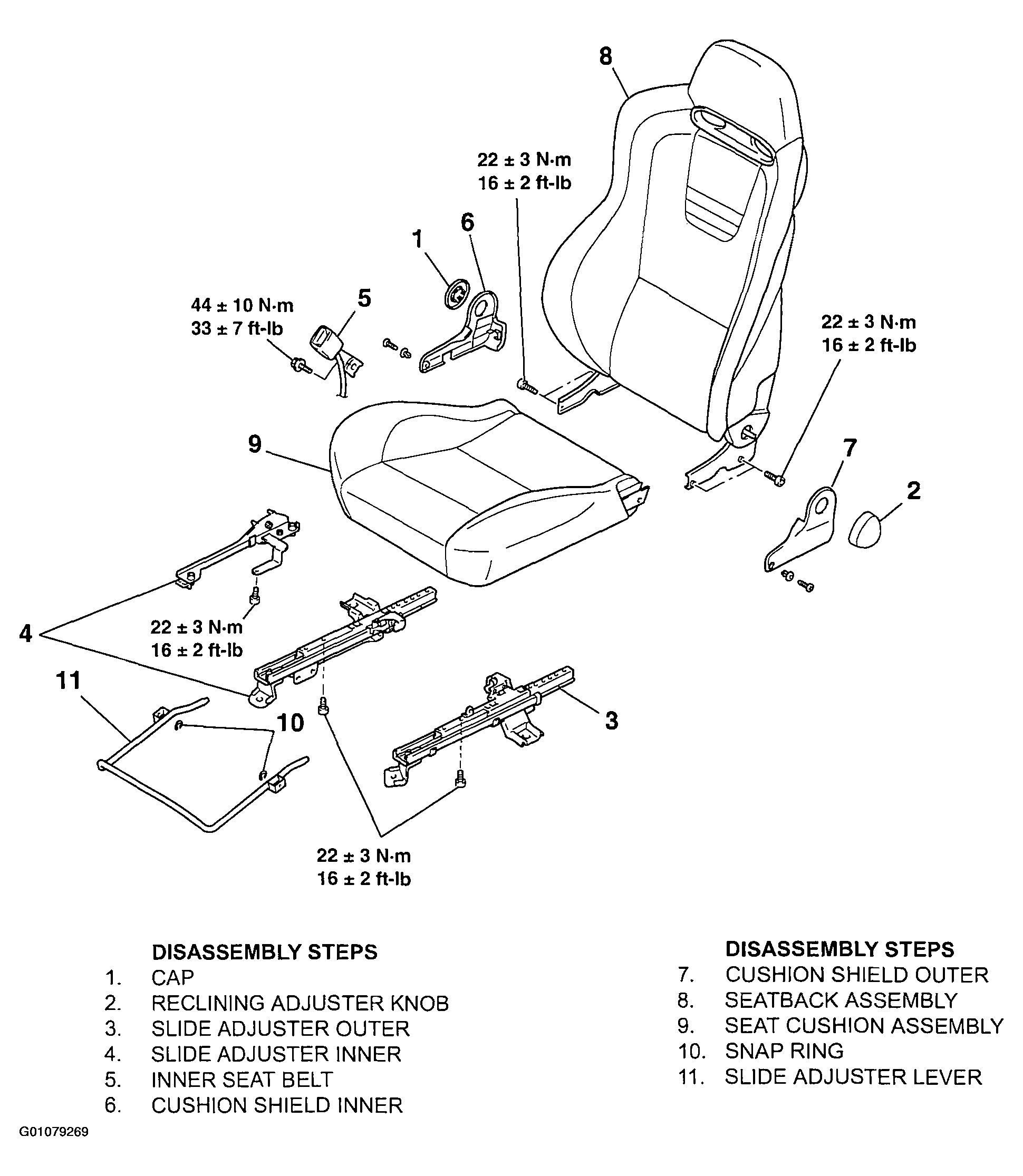

Fig 1: Disassembling Front Seat
G01079269Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
