Inspection Procedure D-5: Power Windows: Front Or Rear Passenger's Power Windows Do Not Work At All By Operating The Power Window Main Switch.: Notes

WARNING: This page is about a different variant/trim than selected.

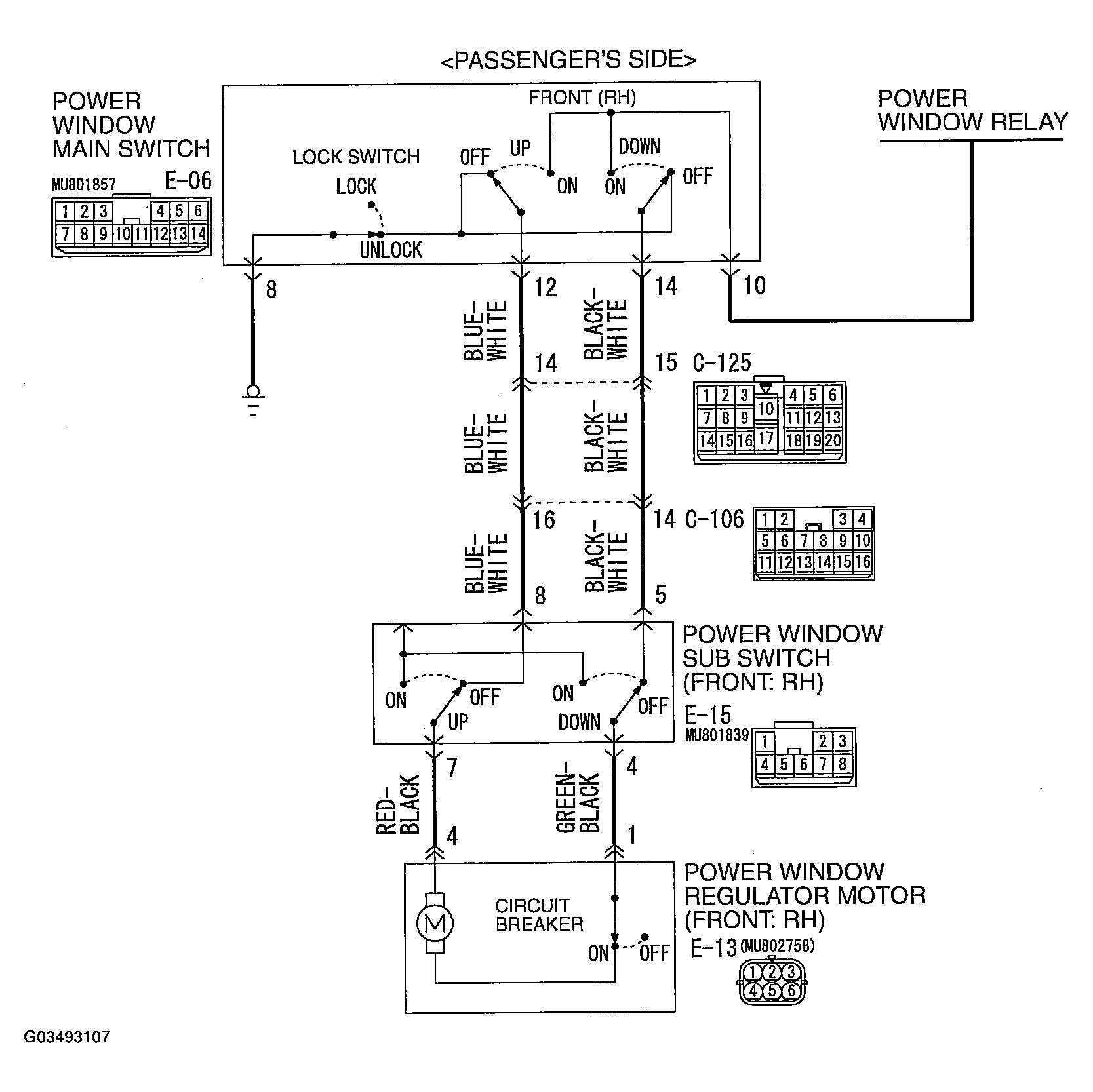

Fig 1: View Of Power Window (Front: RH) Circuit Diagram
G03493107Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

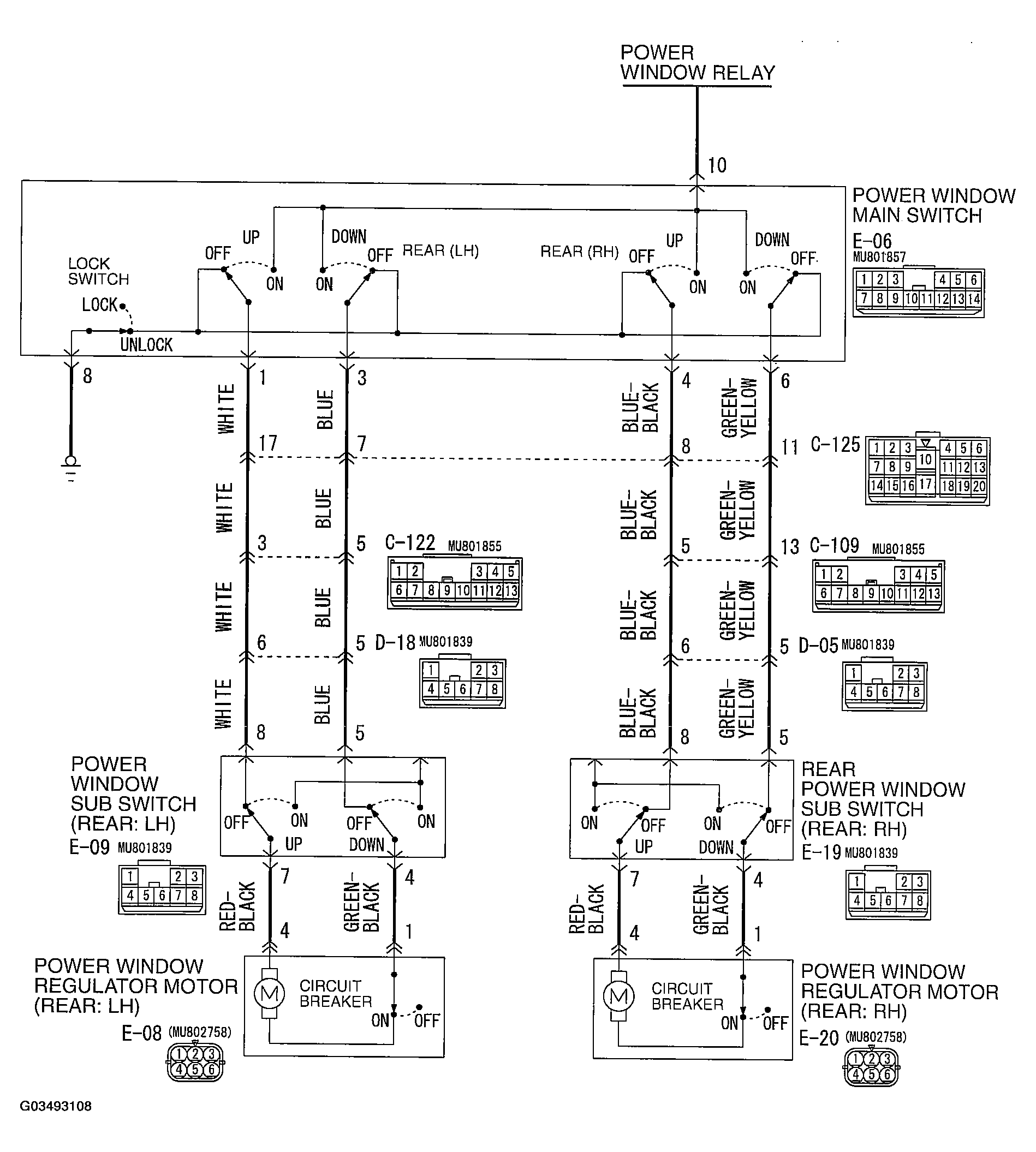

Fig 2: View Of Power Window (Rear) Circuit Diagram
G03493108Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
