Section 59 (Simplified Wiring System (SWS) - Lancer SPORTBACK)
>>
Input Signal Procedures
>>
Inspection Procedure N-9: Transmitter: ETACS-Ecu Does Not Receive Any Signal From The Lock Or Unlock Switch.
>>
Transmitter Input Circuit
Transmitter Input Circuit
WARNING:
This page is about a different variant/trim than selected.

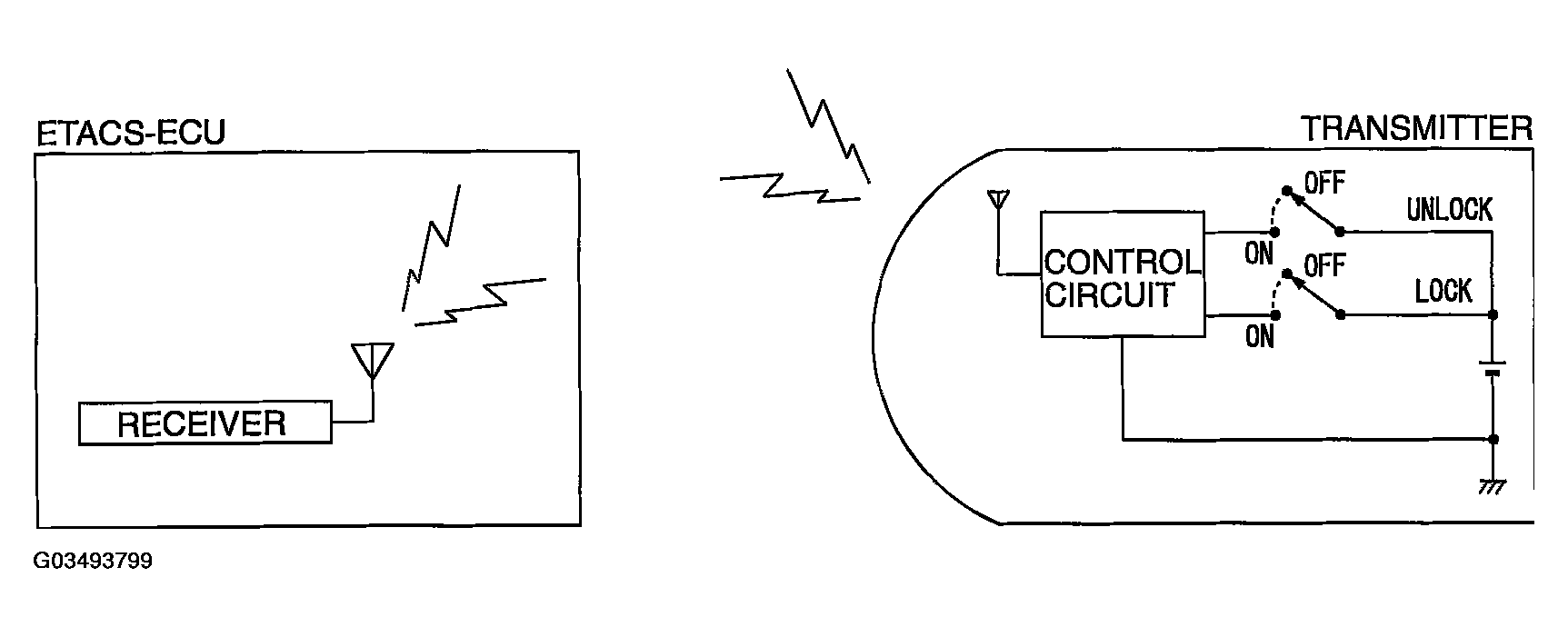

Fig 1: View Of Transmitter Input Circuit Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
