Engine Oil Check

WARNING: This page is about a different variant/trim than selected.
  1. Pull out the oil dipstick slowly and check that the oil level is within the marks on the oil dipstick.
  2. Check that the oil is not excessively dirty, that there is no coolant or gasoline mixed in, and that it is sufficiently thick and slippery.

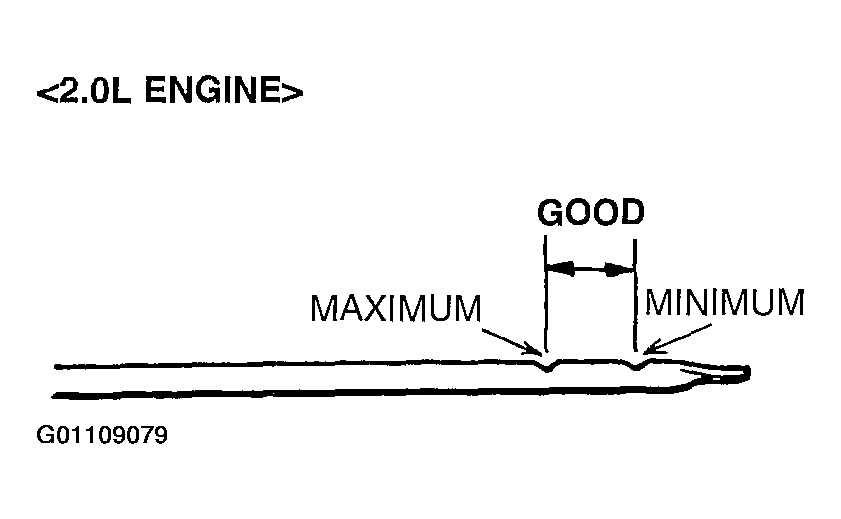

    Fig 1: Identifying Marks On Oil Dipstick (2.0L Engine)
    G01109079Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

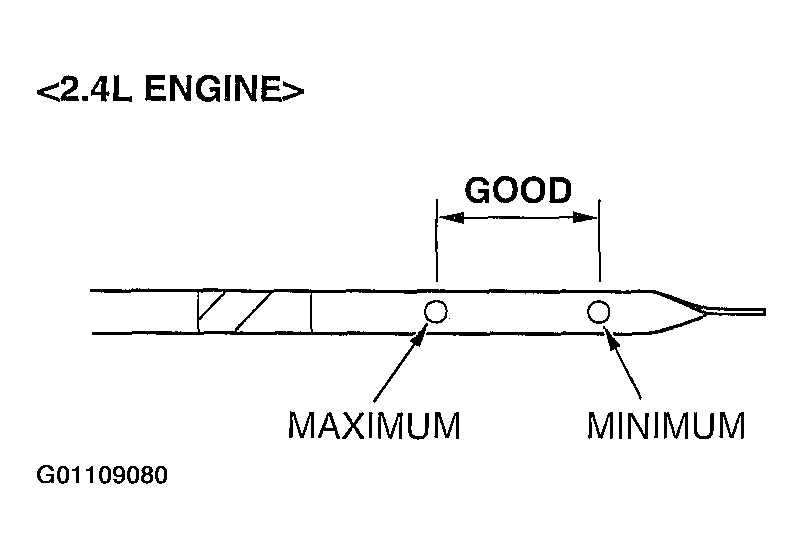

    Fig 2: Identifying Marks On Oil Dipstick (2.4L Engine)
    G01109080Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
