Washer Control

WARNING: This page is about a different variant/trim than selected.

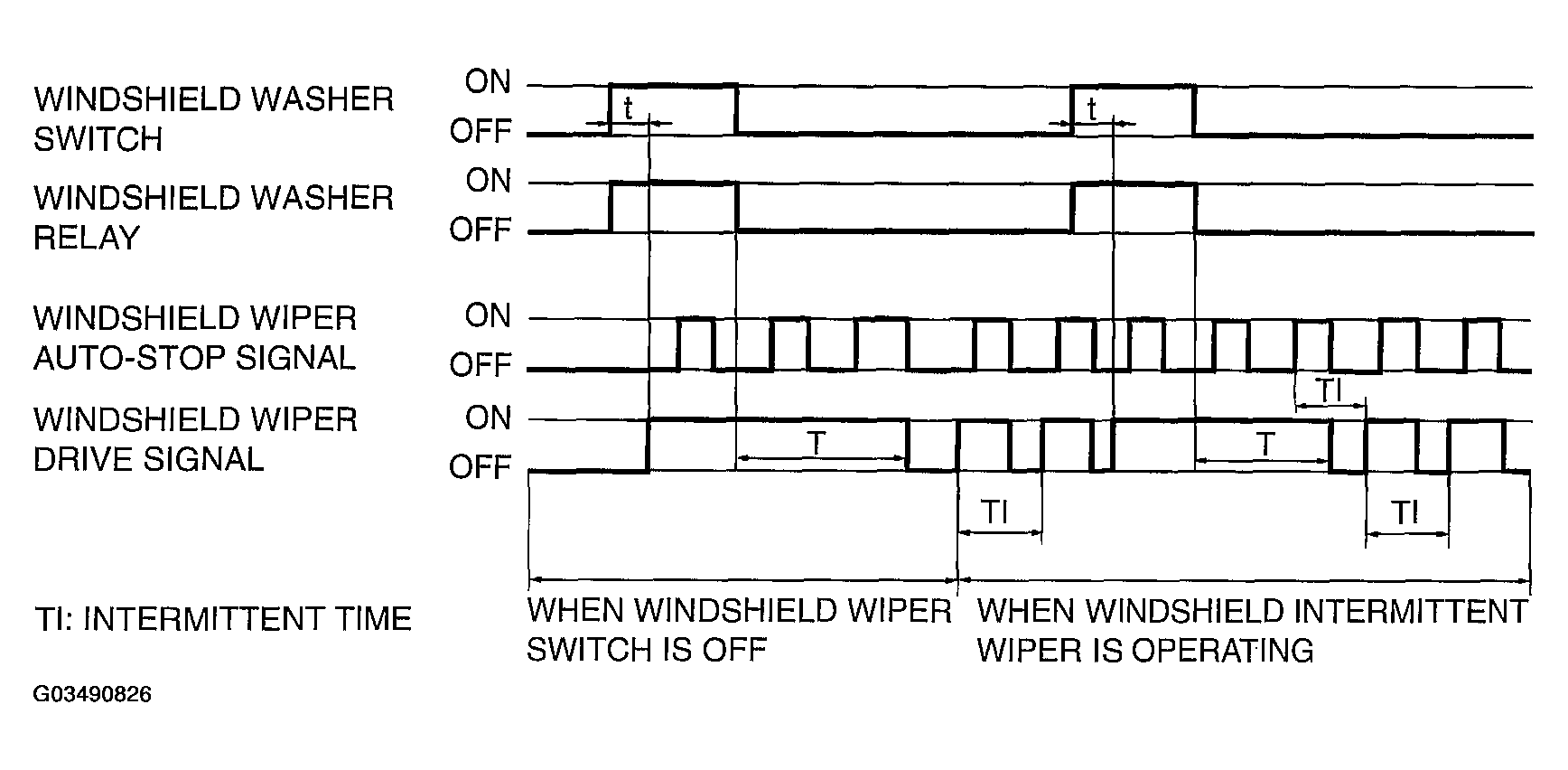

Fig 1: View Of Washer Control Function

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

When the ignition switch is at the ACC or ON position, if the windshield washer switch is turned ON, the front-ECU turns ON the windshield washer relay. The windshield wiper drive signal is turned ON in 0.3 seconds until 3 seconds after the windshield washer switch goes OFF to operate the windshield wiper continuously. When the windshield washer switch is turned ON, if the windshield wiper is operating intermittently, intermittent operations will be continued after continuous operations.

NOTE: The wiper drive signal output time varies according to the conditions. Refer to WIPER WASHER SPECIFICATION CHART .

WIPER WASHER SPECIFICATION CHART

	When wiper switch is OFF				When wiper switch is INT				When wiper switch is LOW or HIGH
t	0.3 seconds or less	0.3 - 0.5 seconds	0.5 - 0.7 seconds	0.7 seconds	Less than 0.2 seconds	0.3 - 0.5 seconds	0.5 - 0.7 seconds	0.7 seconds	-
T	0 second	1 second	2 seconds	3 seconds	0 second	1 second	2 seconds	3 seconds	3 seconds
