Component Location

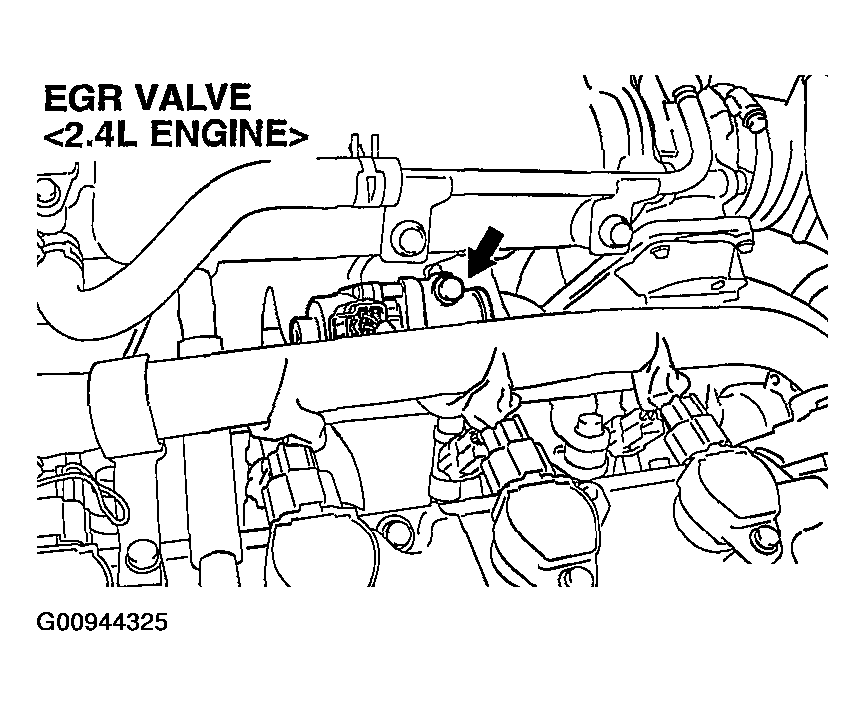

Fig 1: Identifying Component Location (EGR Valve) < 2.4L Engine >
G00944325Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

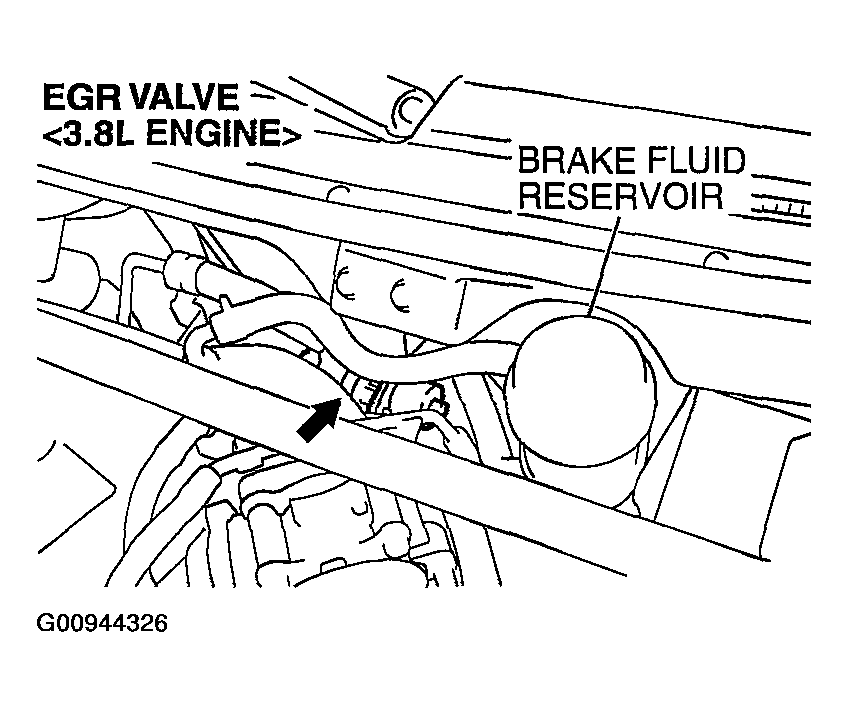

Fig 2: Identifying Component Location (EGR Valve) < 3.8L Engine >
G00944326Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
